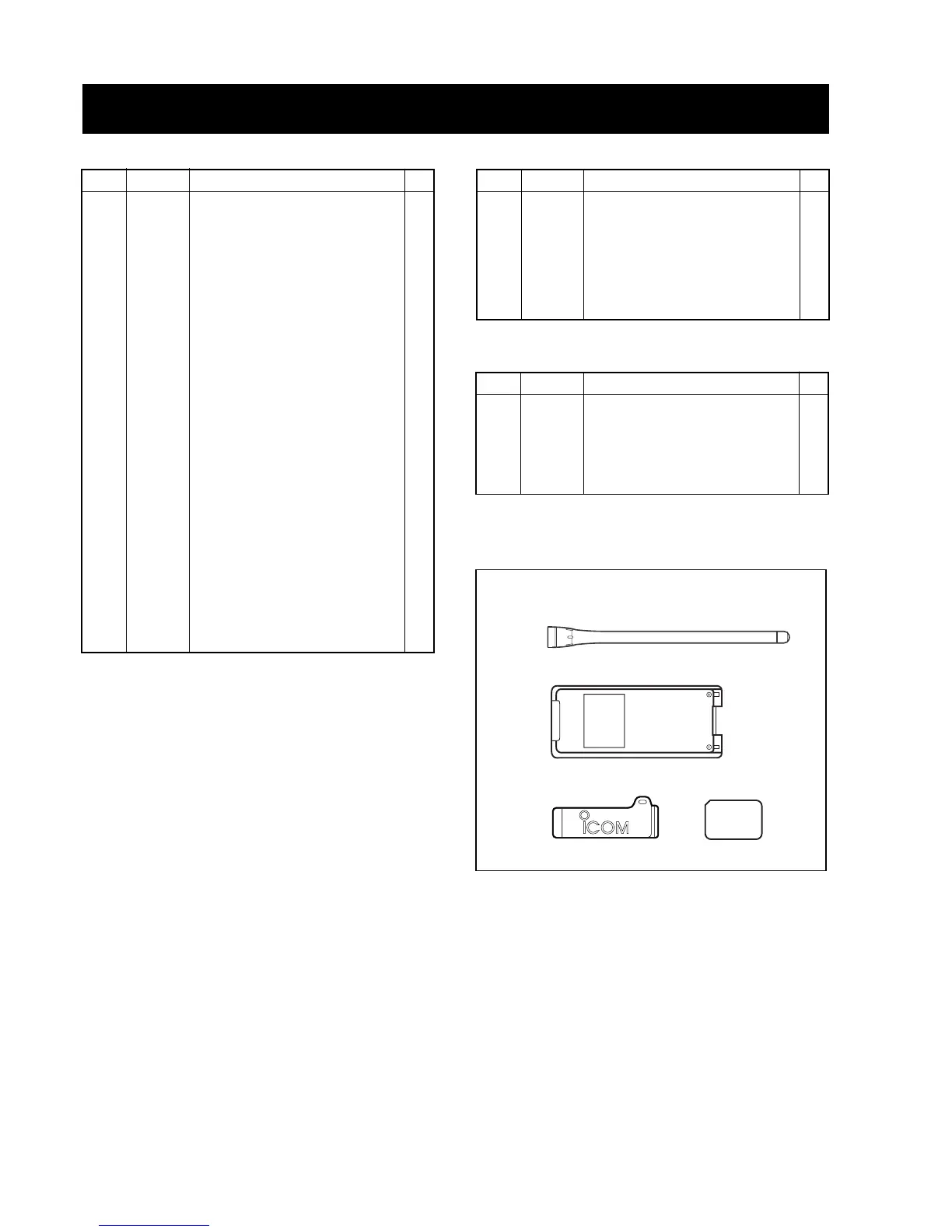

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7 - 1
REF. NO. ODER NO. DESCRIPTION QTY.
MP1 8210016750 2251-T front panel [F3GT] 1
8210016740 2251-S front panel [F3GS] 1
MP2 8930050890 2251 terminal holder 1
MP3 8010017990 2251 chassis 1
MP4 8210016570 2251 rear panel 1
MP5 8930050870 2251 release button 1
MP7 8310047580 2251 window plate 1
MP8 8930051350 2251 jack rubber 1
MP9 8210016550 2251 jack panel 1
MP10 8610010780 Knob N-276 1
MP12 8930050820 2251 main seal 1
MP13 8930050790 2251 10key [F3GT] 1
8930050590 2251 6key [F3GS] 1
MP14 8930050840 2251 minus terminal 1
MP15 8930050850 2251 plus terminal 1
MP18 8930050880 2251 spring holder 1
MP20 8930042350 1922 mic sheet 1
MP21 8930051300 2251 mic sponge 1
MP22 8930051290 2251 opt sheet 1
MP23 8830001340 1903 hex nut 1
MP24 8930050900 2251 window sheet 1
MP25 8930036751 Spring 1
MP26 8950005260 Ant connector-102 1
MP27 8830001250 Ant connector-101 1
MP31 8810009510 Screw BT M2 x 4 NI-ZU 8
MP32 8810009560 Screw BT M2 x 6 ZK 7
MP33 8810000100 Screw M2 x 4 ZK 4
MP36 8930051330 2251 contact rubber 1
MP37 8930050800 2251 jack cap 1
MP38 8950005240 2251 contact spring 1
MP39 8860001210 2251 ANT rug 1
MP40 8930051750 Sponge 1
MP41 8510012900 2251 shield plate 1
[CHASSIS PARTS]
REF. NO. ODER NO. DESCRIPTION QTY.
SP1 2510001060 Speaker K036NA500-47 1
EP2 8930051310 LCD contact SRCN-2251-SP-N-W 1
MP1 8510011111 1922 VCO case-1 1
MP2 8510011101 1922 VCO cover-1 1
MP3 8930050810 2251 LCD holder 1
MP4 8210016580 2251 reflector 1
MP5 8410002230 2078 PA heatsink 1
[MAIN UNIT]
Screw abbreviations A, B0, BT: Self-tapping
PH: Pan head
FH: Flat head
BiH: Bind head
SUS: Stainless
NI: Nickel
ZK: Black
REF. NO. ODER NO. DESCRIPTION QTY.
EP1 3310002330 Antenna FA-SC25V 1
3310002320 Antenna FA-SC55V 1
EP2 0800005400 Battery BC-209 1
MP1 8930042040 1922 Belt clip 1
MP2 8930051290 2251 OPT sheet 1
[ACCESSORIES]
EP1
EP2
MP1 MP2
