3 - 1
SECTION 3
DISASSEMBLY INSTRUCTION

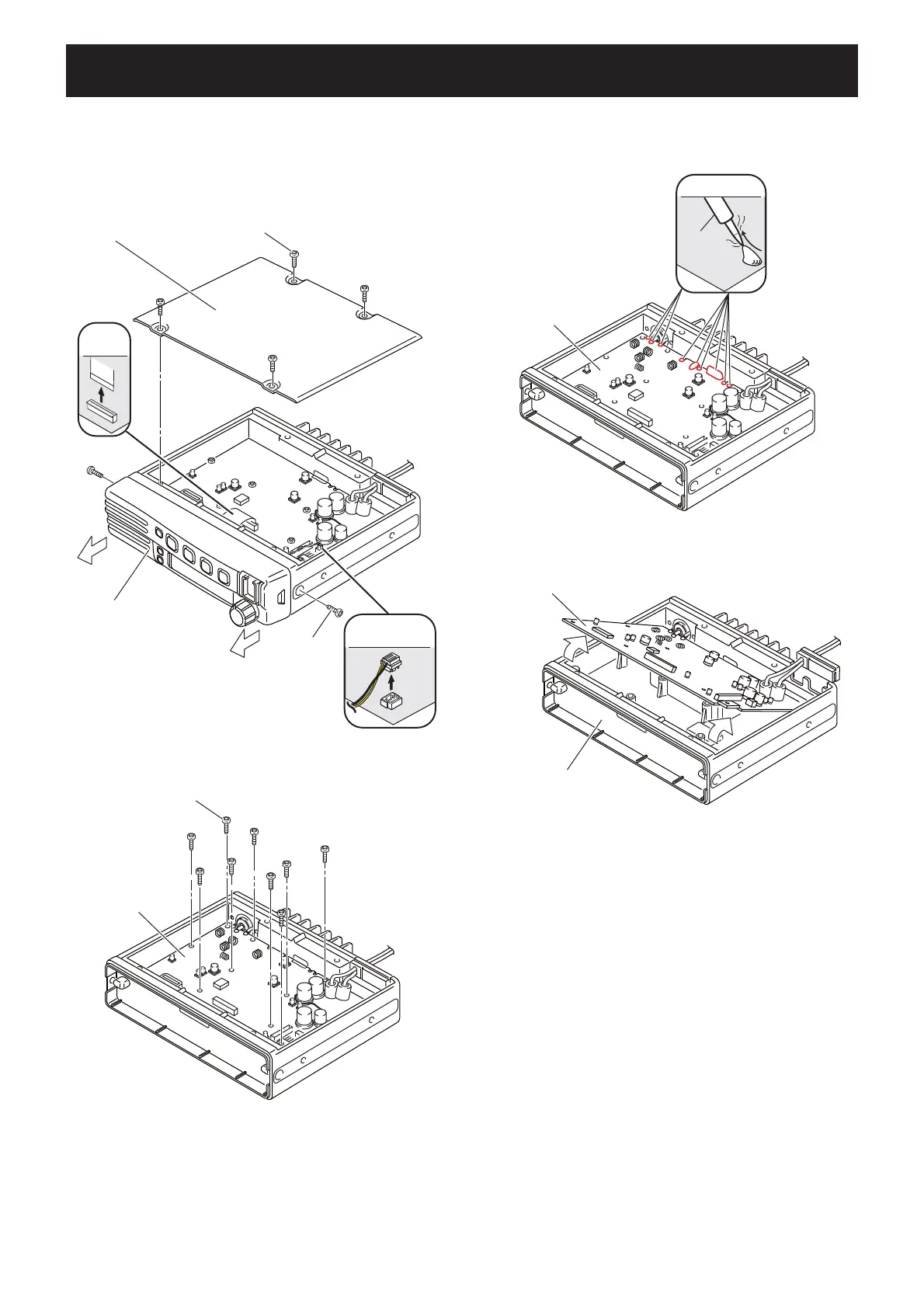

1) Remove 4 screws from the bottom cover, and then
remove it.
2) Disconnect the fl at cable and speaker cable.
3) Remove 2 screws from the both sides, and then remove
the front panel in the direction of the arrow.
4) Remove 9 screws from the PCB.
FLAT
CABLE
BOTTOM COVER
SCREW×4
SCREW×2
FRONT PANEL
SPEAKER
CABLE
UNSOLDER
Solder
remover
PCB
SCREW×9
PCB
PCB
CHASSIS
5) Unsolder total of 9 points; 3 points at the antenna
connector, 6 points at the PA module.
6) Remove the PCB from the CHASSIS.
To Next Page
