Icom IC-F5062 Service Manual

6 - 2

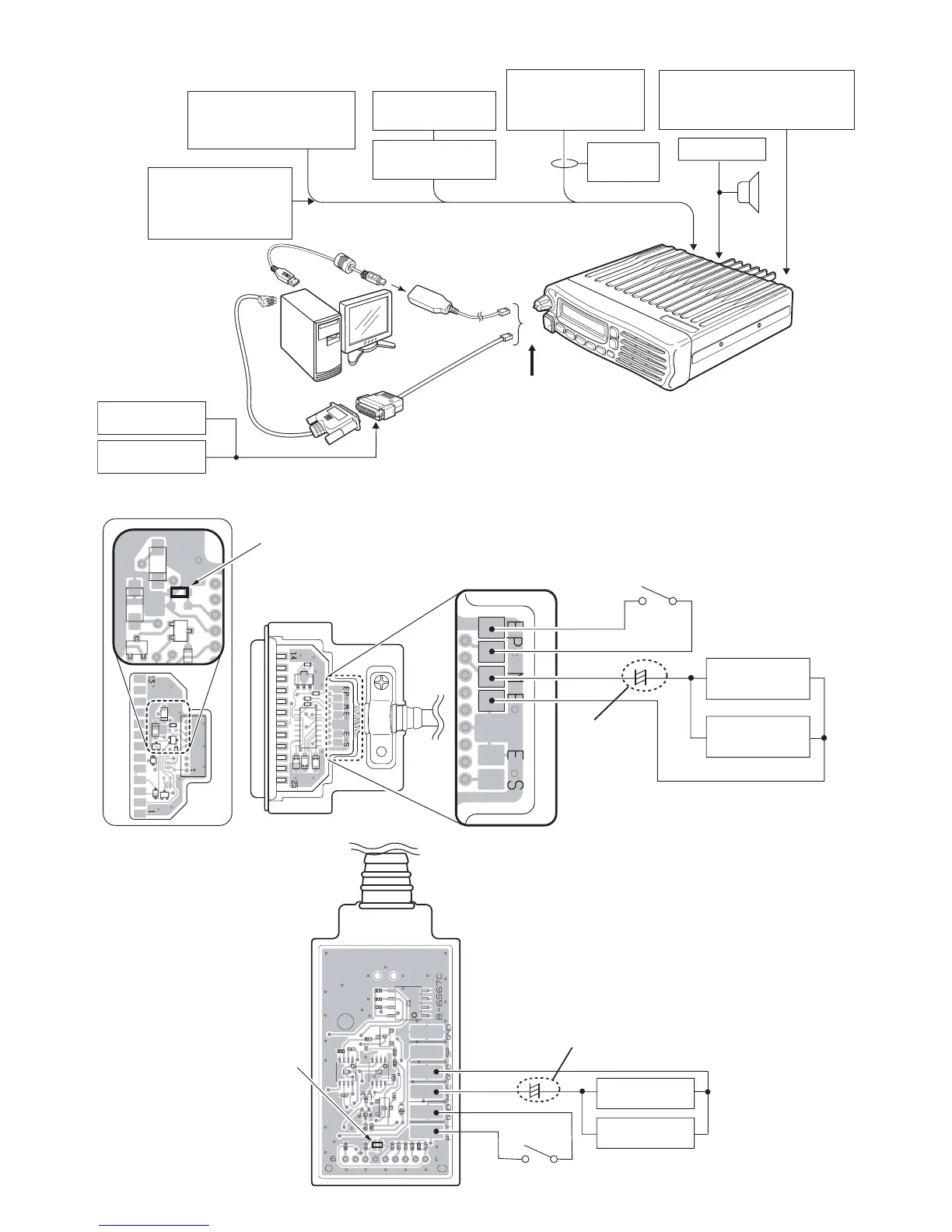

• CONNECTION
Modulation analyzer
Attenuator
50 dB or 60 dB
to the antenna connector
to DC cable
Standard signal generator
–127 to –17 dBm
(0.1 V to 32 mV)
CAUTION:
DO NOT transmit while
SSG is connected to
the antenna connector.
RF power meter (50 Ω)
1–50 W [USA-01/02]
1–30 W [others]
DC power supply
13.6 (13.2) V / 20 A [USA],
[EUR]
13.2 (13.2) V / 20 A , [EUR]
Frequency
counter
to EXT. SP jack
SINAD meter
SP (4 Ω)
to the
[MICROPHONE CONNECTOR]
to an RS-232C port
JIG CABLE
JIG CABLE
RS-232C cable
(straight)
IC-F6061
IC-F6062
IC-F6063
+
Audio generator
300 Hz to 3 kHz
AC
millivoltmeter
MICE
MIC
PTT
PTT switch
PTTE
Add a jumper wire here
Add a jumper wire here
Electrolytic
capacitor
47 µF
OPC-1122
(RS-232C type Cloning cable)
OPC-1122U
(USB type Cloning cable)
+
Audio generator
300 Hz to 3 kHz
AC
millivoltmeter
GND
MIC
Electrolytic
capacitor
47 µF
PTT
PTT switch
GND
PC
OPC-1122U (USB type)
AC millivoltmeter
Audio generator
