Icom IC-F5062 Service Manual

6 - 5

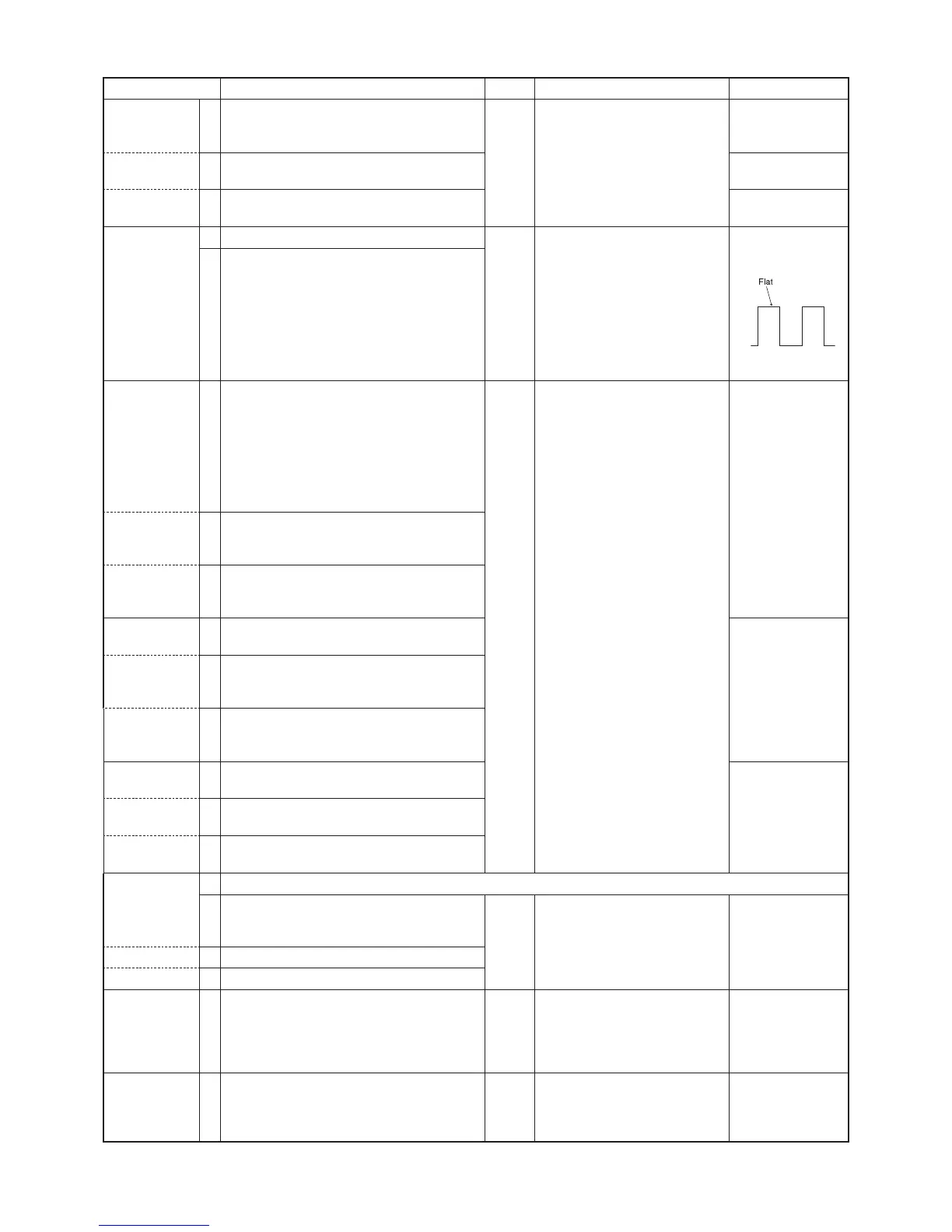

6-3 TRANSMIT ADJUSTMENT
Select an adjustment item using [
↑
] / [
↓
] keys, then set to the specifi ed value using [
←
] / [
→
] keys on the connected PC’s keyboard.
ADJUSTMENT ADJUSTMENT CONDITION UNIT OPERATION VALUE
OUTPUT
POWER
[Power (Hi)]
1 • Channel : CH 5
• Transmitting
Rear
panel
Connect an RF power meter to
the antenna connector.
45 W [USA]
25 W [others]
[Power (L2)] 2 • Channel : CH 6
• Transmitting
25 W [USA]
10 W [others]
[Power (L1)] 3 • Channel : CH 2
• Transmitting
4.5 W [USA]
2.5 W [others]
MODULATION
BALANCE
[BAL]
1 • [MOD N] : 80 Rear
panel
Connect the modulation analyzer
with an oscilloscope to the
antenna connector through an
attenuator.
Set to square wave
2 • Channel : CH 2
• No audio signals applied to the JIG cable.
• Set a modulation analyzer same as;
HPF : OFF
LPF : 20 kHz
De-emphasis : OFF
Detector : (P–P)/2
• Push [P0] while transmitting
FM
DEVIATION
(NARROW)
[MOD N C]
1
• Channel : CH 2
• Connect an audio generator to the JIG
cable and set as;
Frequency : 1.0 kHz
Level : 40 mV rms
• Set the modulation analyzer to the same
condition as “MODULATION BALANCE.”
Rear
panel
Connect the modulation ana-
lyzer to the antenna connector
through an attenuator.
±2.05 to ±2.15 kHz
• Transmitting
(NARROW)
[MOD N L]
2
• Channel : CH 1
• Transmitting
(NARROW)
[MOD N H]
3
• Channel : CH 4
• Transmitting
(WIDE)
[MOD W C]
4
• Channel : CH 7
• Transmitting
±4.05 to ±4.15 kHz
(WIDE)
[MOD W L]
5
• Channel : CH 8
• Transmitting
(WIDE)
[MOD W H]
6
• Channel : CH 9
• Transmitting
(MIDDLE)*
[MOD M C]
7
• Channel : CH 10
• Transmitting
±3.15 to ±3.25 kHz
(MIDDLE)*
[MOD M L]
8
• Channel : CH 11
• Transmitting
(MIDDLE)*
[MOD M H]
9
• Channel : CH 12
• Transmitting
DIGITAL
DAVIATION
[MOD D C]
1
Set the [Digital Mode] to “7.”
2
• Channel : CH 13
• Attach the UT-119 to J2.
(See page 4-1 for installation.)
Rear
panel
Connect the modulation ana-
lyzer to the antenna connector
through an attenuator.
±1.35 to ±1.39 kHz
[MOD D L] 3
• Channel : CH 14
[MOD D H] 4
• Channel : CH 15
CTCSS/DTCS
DEVIATION
[CTCS/DTCS]
1
• Channel : CH 16
• No audio signals applied to the JIG cable.
• Set the modulation analyzer to the same
condition as “MODULATION BALANCE.”
• Transmitting
Rear
panel
Connect a modulation ana-
lyzer to the antenna connector
through an attenuator.
±0.68 to
±
0.72 kHz
2TONE,
5TONE,
DTMF
[S.Tone]
1
• Channel : CH 2
• Push [P3] while transmitting
Rear
panel
Connect a modulation ana-
lyzer to the antenna connector
through an attenuator.
±
1.50 kHz
*; [EUR] only.
‡
;(Low)=[USA-01], [EXP-01], [EUR-01] (High)=[USA-02], [EXP-02]
