3 - 1

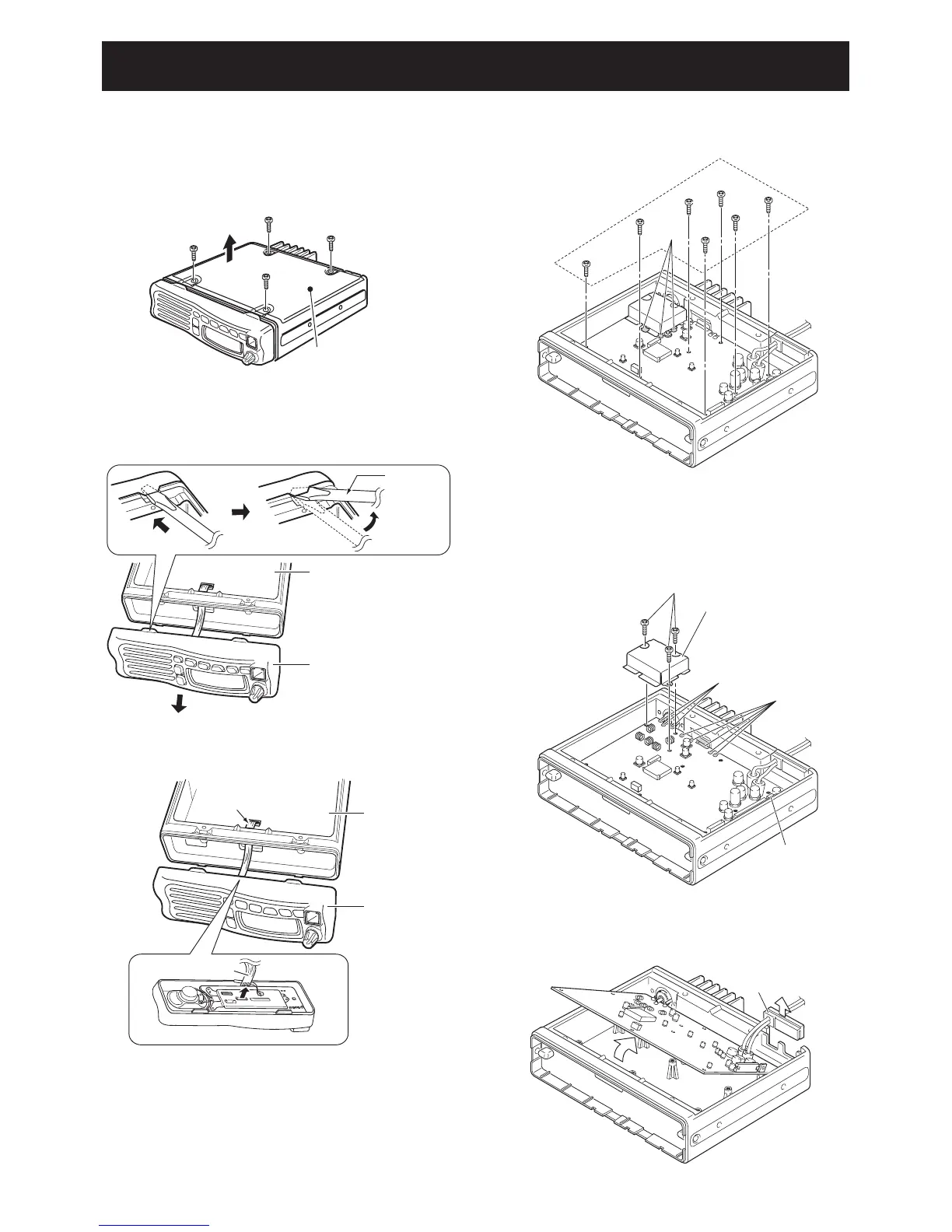

SECTION 3 DISASSEMBLY INSTRUCTION
1. Removing the front panel
q Turn the transceiver’s power OFF, then disconnect the DC
power cable
w Unscrew the 4 bottom screws, then remove the bottom
cover from the transceiver in the direction of the arrow.
2. Removing the MAIN UNIT
q Unscrew 7 screws A, and unsolder 3 points B.
e Remove the front panel from the main body using a
standard cabinet screw driver as shown below.
Bottom cover
Main body
Front panel
Standard
screw driver
Front panel
Flat cable
Main body
Front panel
Flat cable
r Disconnect the flat cable from the front panel.
C
D
E
Clip
Shield cover
t Remove the bush, and remove the MAIN UNIT in the
direction of the arrow.
Bush
w Unscrew 3 screws C and remove the shield cover.
e Unsolder 3 points D (at the antenna connector) and
5 points E (at the PA module).
r Remove the clip.
B
A
To Next Page
