Icom IC-F5123D Service Manual

8 - 1
[CHASSIS PARTS]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J1 6510004880 MR-DS-E 01 <SSC> 1
W1 8900011800 OPC-1199 1
MP1 8010019065 2601 CHASSIS-5 [EUR-01] 1
8010019065 2601 CHASSIS-5 [EXP-01] 1
8010019135 2601 LONG CHASSIS-5 [USA-01] 1
8010019135 2601 LONG CHASSIS-5 [EXP-02] 1
MP2 8110007821 2601 COVER-1 RO 1
MP3 8810008661 PHBT M3 X 8 NI-ZC3 8
MP4 8810008661 PHBT M3 X 8 NI-ZC3 2
MP5 8810008661 PHBT M3 X 8 NI-ZC3 2
MP6 8810008661 PHBT M3 X 8 NI-ZC3 1
MP7 8810009991 PHBT M3 X 8 NI-ZK3 4
MP8 8810009991 PHBT M3 X 8 NI-ZK3 2
MP11 8930049131 SHIELD TAPE (D)-1 [EUR-01] only 1
[MAIN UNIT]
[ACCESSORIES]
[FRONT UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J1001* 6510014961 B2B-ZR-SM4-TF (LF) (SN) 1
J1002 6450000140 HSJ0807-01-010 1
J1003* 6510022891 B13B-ZR-SM4-TF (LF) (SN) 1
J1004* 6510027960 04-6294-040-000-800+ 1
S1001* 2260003180 MINISMDC050F-2 CN 1
W1* 7030012290 RDS2T0R0 1
W2 8900011863 OPC-1195C 1
EP4* 6910010280 HF70BB9.5X10.4X4.9 1
EP5* 6910010280 HF70BB9.5X10.4X4.9 1
MP1* 8510019340 3179 VCO CASE Y1142 1
MP2 8510019350 3179 VCO COVER Y1143 1
MP3 8510015110 2602 M-PLATE Y660 1
MP4* 8930055841 2490 EARTH SPRING-1 1
MP5 8510014910 2601 FILTER CASE 1
MP6 8510020200 3331 SHIELD PLATE Y1235 1
MP9 8930059390 SHIELD SPONGE (Y) 1
REF ORDER
DESCRIPTION QTY.
NO. NO.
J1 6450002210 3017-8821 <KIN> 1
J2* 6510027960 04-6294-040-000-800+ 1
J3* 6510025142 10FLT-SM2-TB (LF) (SN) (M) 1
DS11 5030003390 TAK-35877 FX-3331<ITAK> 1
SP1 2510001221 C052SB500-14 <OSC> 1
W1 8900010503 OPC-1046B-1 (P0.5N40L55) 1
EP2 8930059170 SRCN-2622-SP-N-W (SHJ) 1
MP1 8210025591 3179 FRONT PANEL-1 1
MP3 8510019440 3179 SHIELD PLATE Y1151 1
MP5 8930081250 3179 KEYBOARD (A) <SEP > 1
MP6 8610014010 KNOB N-386 1
MP8 8930059090 2622 LCD PLATE Y658 1
MP9 8210019350 2622 REFLECTOR 1
MP10 8930059100 2622 LCD FILTER 1
MP11 8930059000 2601 SP NET 1
MP12 8930070850 2979 VOL RUBBER (TOT) 1
MP13 8810008761 PHBT M2 X 8 NI-ZC3 3
REF ORDER
DESCRIPTION QTY.
NO. NO.
MC1 (Optional) HM-152 1
W1 (Optional) OPC-1194A [EUR-01] 1
(Optional) OPC-1194A [EXP-01] 1
(Optional) OPC-1132A [USA-01] 1
(Optional) OPC-1132A [EXP-02] 1
W2 (Optional) OPC-049A 1
MP1 8010019151 2601 MOBIL BRACKET-1 1
MP3 8820000530 FLANGE BOLT M4 X 8 NI 4
MP4 8810000471 PH M5 X12 (+-) ZC3 4
MP5 8810005841 PHA M5 X20 ZC3 4
MP6 8850000150 FLAT WASHER M 5 NI BS 4
MP7 8850000391 S-WASHER M5 ZC3 4
MP8 8830000121 NUT M 5 ZC3 4
MP9 8950005110 2289 MIC HANGER Y468 1
MP10 8310073440 3179 LCD LABEL M6K 1
MP11 8810004700 PHA M3 X16 SUS 2

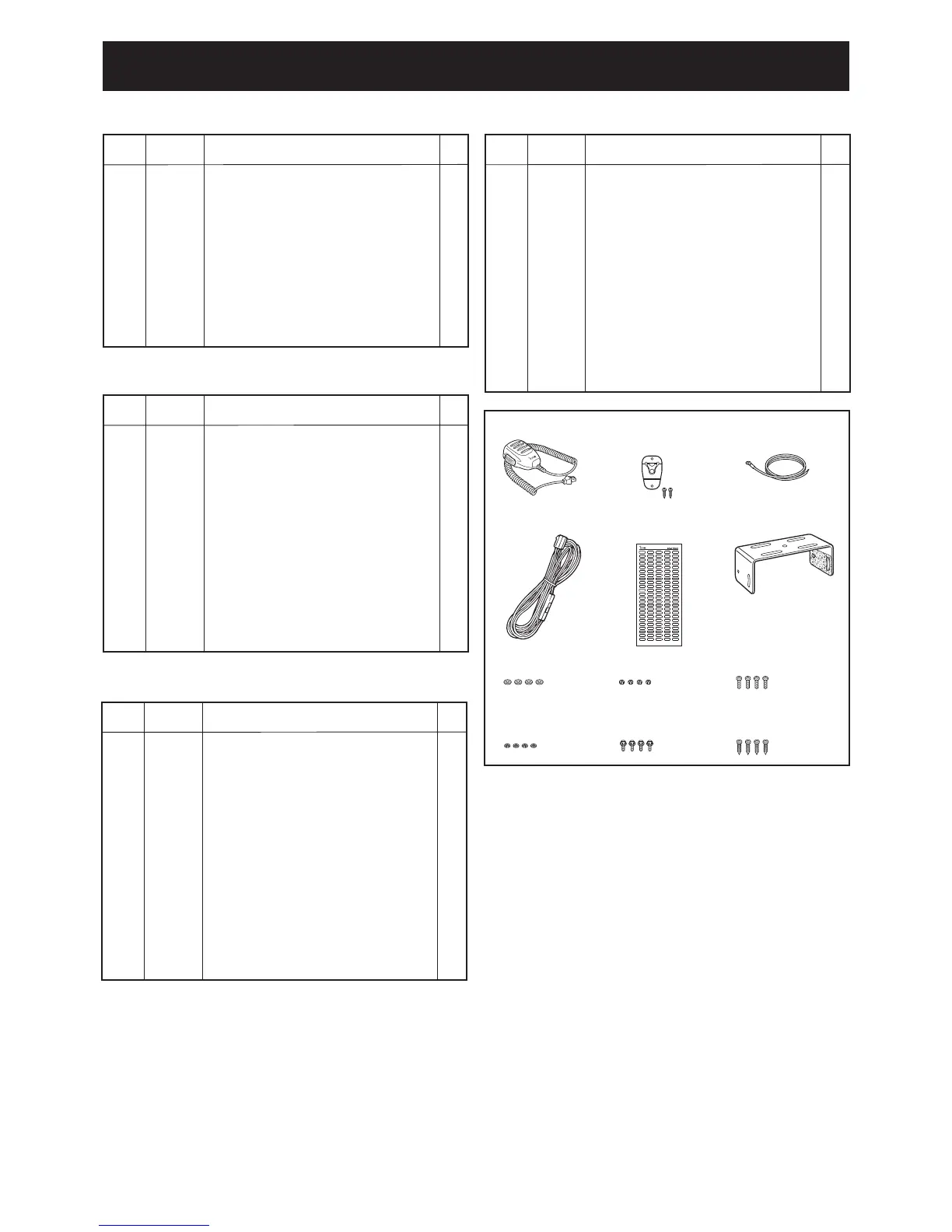

SECTION 8
.
MECHANICAL PARTS
*: Refer to “BOARD LAYOUTS” for the location.
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
MC1
MP9
MP11
W2
W1
MP6
MP7
MP3
MP4 (M5×12)
MP5 (M5×20)
MP8
MP10*
MP1
