Icom IC-F6020 Series Service Manual

6 - 3
M
ADJUSTMENT UTILITY WINDOW (example)
M

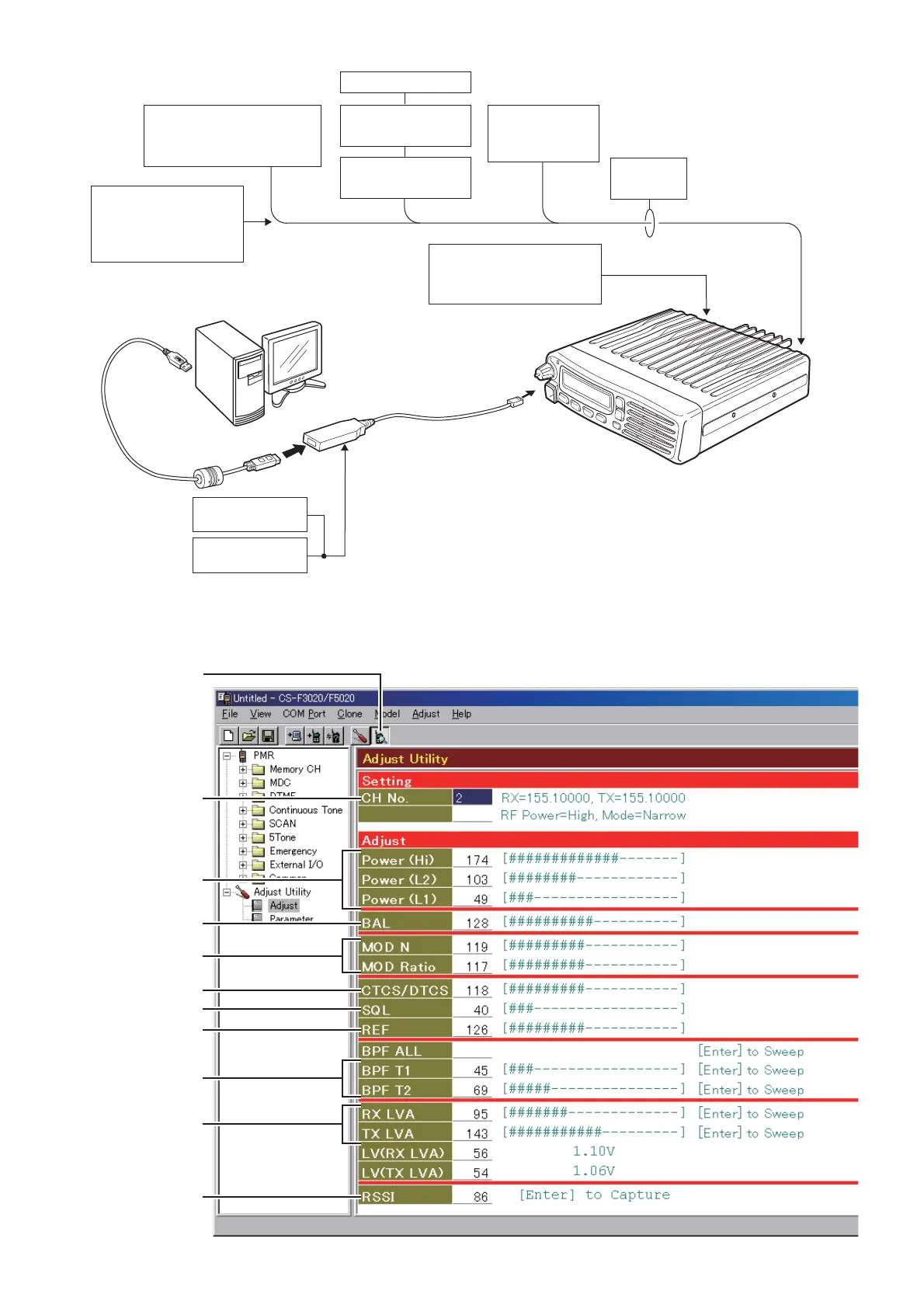

CONNECTION
Modulation analyzer
(DC measurable)
Attenuator
40 dB or 50 dB
to the antenna connector
to DC cable
Standard signal generator
–90 to +90 dBµ
(–127 to –17 dBm)
CAUTION:
DO NOT transmit while
SSG is connected to
the antenna connector.
RF power meter
30 W [25 W ver.]
60 W [50 W ver.]
DC power supply
13.6 V / 15 A except [EUR]
13.2 V / 10 A [EUR]
Frequency
counter
Oscilloscope
AC millivoltmeter
Audio generator
to the MIC
connector
JIG CABLE
to USB port
PC
TX POWER
MOD. BALANCE
DEVIATION
CTCSS\DTCS
SQUELCH
REF. FREQUENCY
RX SENSITIVITY
LOCK VOLTAGE
RSSI
(S3 and S1 level)
ADJ. CHANNEL
Click to open the
“I/O Check window”
