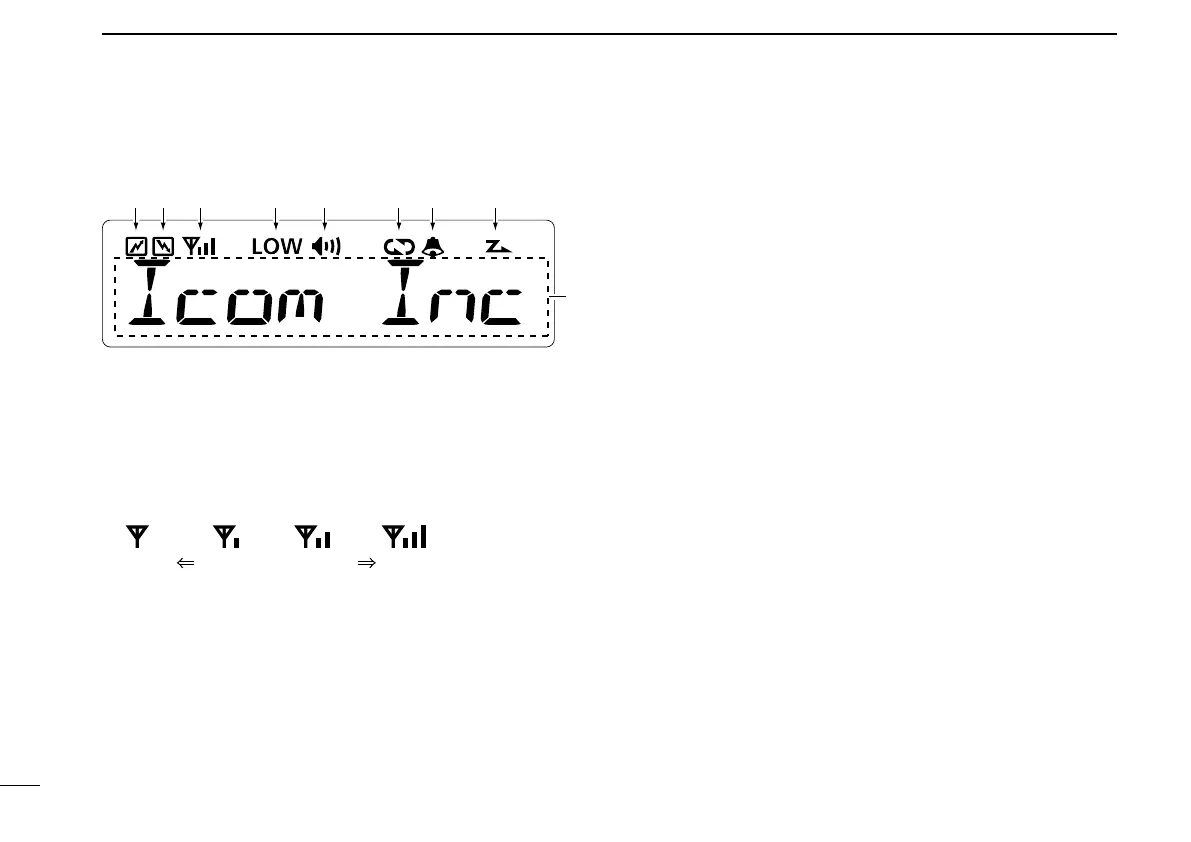

■ Function display
q w e r t y u i
o
q TRANSMIT INDICATOR
Displayed while transmitting.
w BUSY INDICATOR
Displayed while the channel is busy.
e SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
Weak
Receive Signal level
Strong
r LOW POWER INDICATOR
Displayed when low output power is selected.
t AUDIBLE INDICATOR
➥ Displayed when the channel is in the ‘Audible’ (unmute)
condition.
➥ Displayed when the specific 2/5-Tone/MDC* code is
received.
y SCRAMBLER INDICATOR
Displayed when the voice scrambler function is activated.
u BELL INDICATOR
Displayed/blinks when the specific 2/5-Tone/MDC* code
is received, according to the pre-programming.
i SCAN INDICATOR
Blinks during scan.
o ALPHANUMERIC DISPLAY
Displays an operating channel number, channel name,
Set mode contents, DTMF code, and so on.
* MDC operation only (p. 13)
