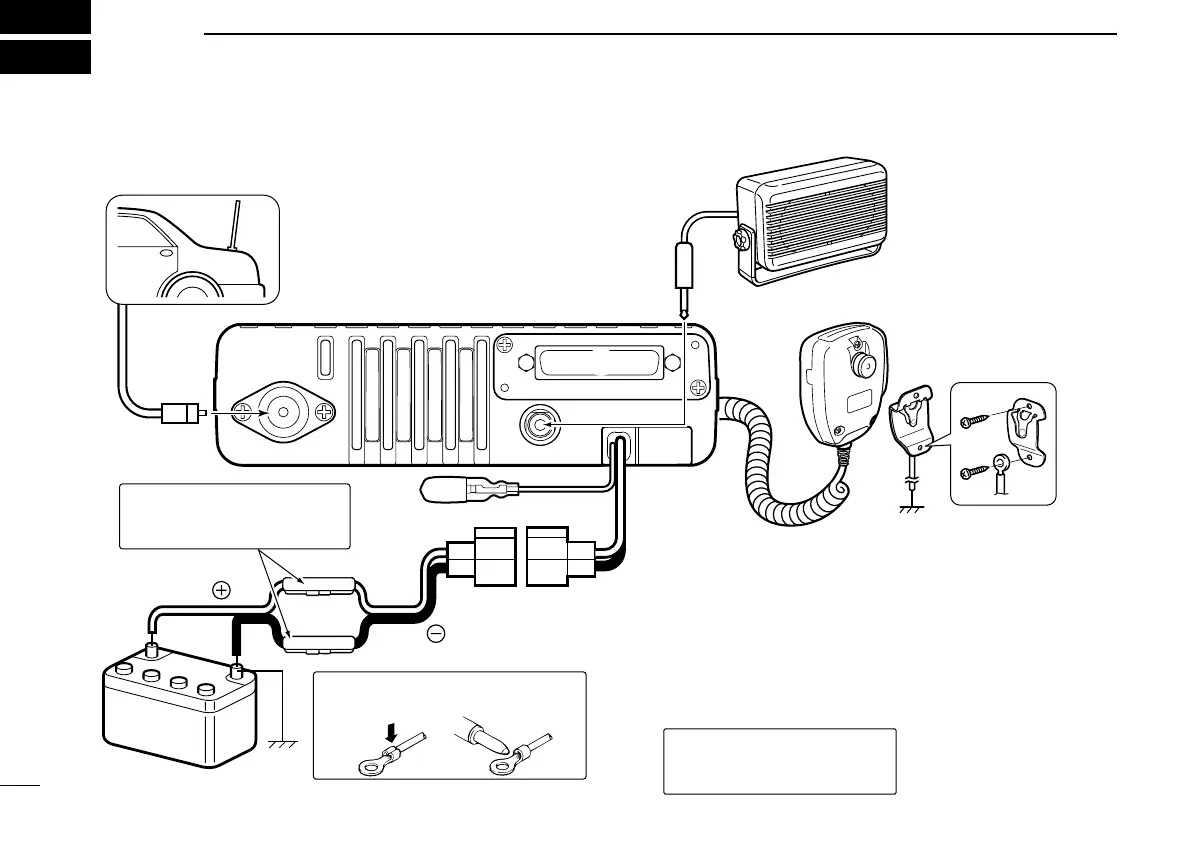

Antenna
q ANTENNA CONNECTOR
Connects to an antenna.
Contact your dealer about
antenna selection and
placement.
q
e EXTERNAL
SPEAKER JACK
w D-Sub 25-pin
Connect a 4–8 ˘
external speaker.
Connect an exter-
nal unit.
r MICROPHONE HANGER
For Non-self ground type:
Connect to the vehicle’s
ground with the supplied mi-
crophone hanger cable for
using the microphone on/off
hook functions. (p. 1)
For Self ground type:
The microphone on/off hook
functions can be used without
the vehicle’s ground.
See the next page for details.
t
r
y
Optional speaker
w
e
t IGNITION LEAD
Connects to a ignition line.
R
Do not put a pressure to
this lead.
Binding to the DC power
cable is recommended.
Microphone*
The type is different
depending on the
transceiver’s version.
*
y DC POWER RECEPTACLE
Connects to a 12 V DC battery.
Pay attention to polarities.
R WARNING! NEVER connect
to a 24 V battery. This could
damage the transceiver.
Solder
NOTE: Use the terminals as shown
below for the cable connections.
Crimp
Black
Red
12V
Battery
R WARNING! NEVER remove
the fuse-holder from the DC
power cable.
To Next Page
