Icom IC-M45 Service Manual

2 - 1
SECTION 2 DISASSEMBLY INSTRUCTIONS
•

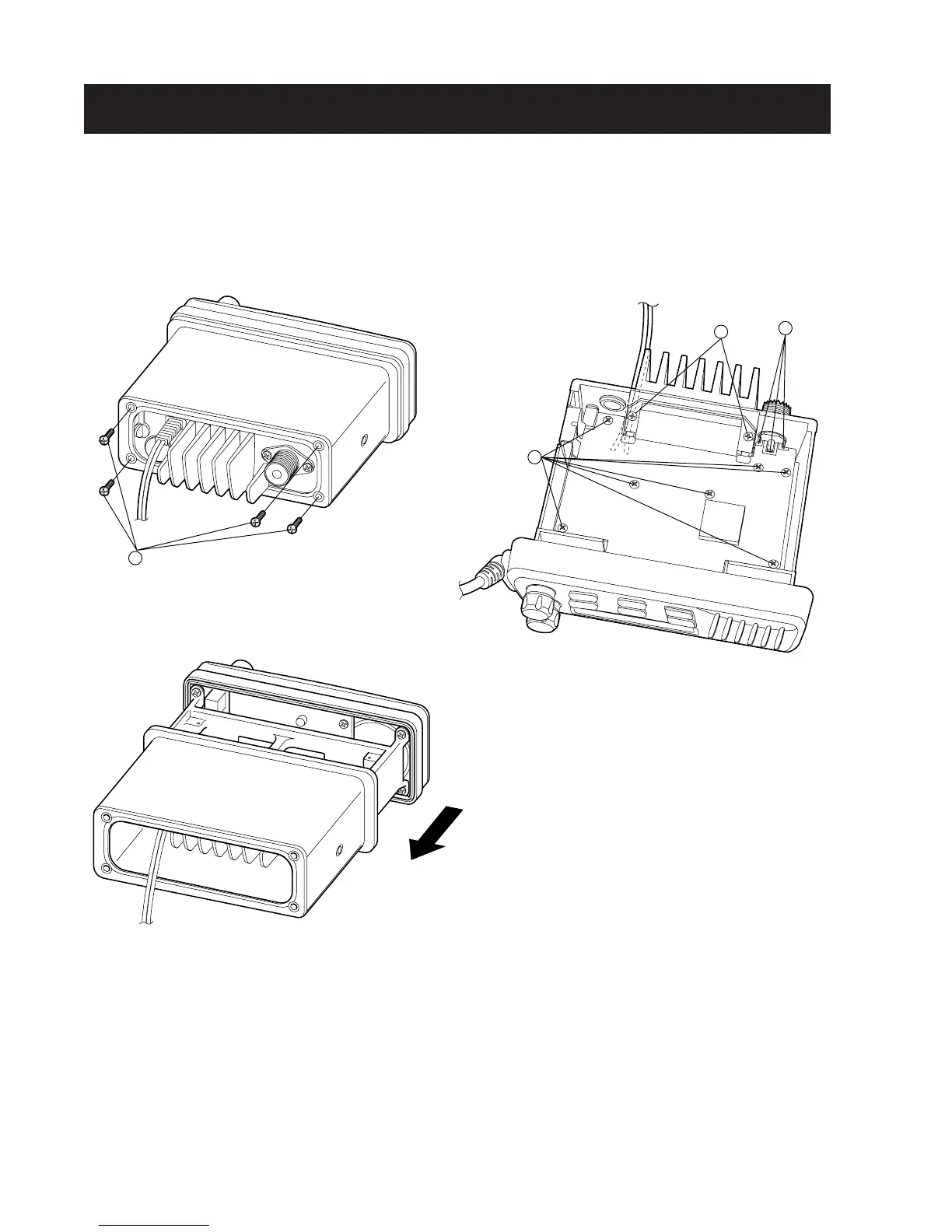

REMOVING THE CASE
1 Unscrew the 4 screws, A.
Note: When replacing the screw, 10–12 kg of torque MUST
be applied to ensure water resistance.
•
REMOVING THE MAIN UNIT
1 Unsolder DC cable (2 points) and antenna connector,
B (3 points), as shown below.
2 Unscrew 2 screws, C, and 7 screws, D, to remove the
MAIN unit.
A
C
B
D
2 Slide the case free of the chassis in the direction of the
arrow.
