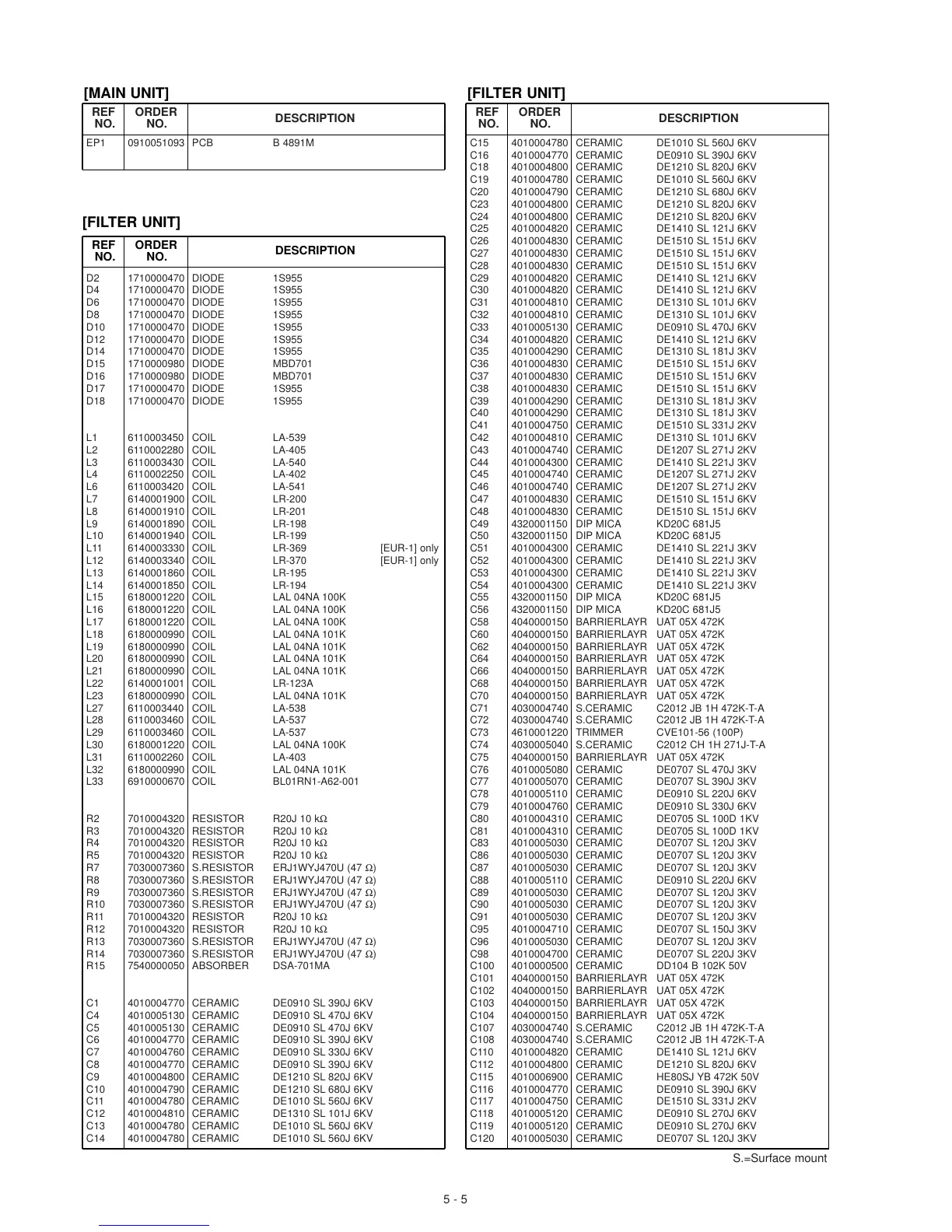

Icom IC-PW1 Service Manual Addendum

S.=Surface mount
EP1 0910051093 PCB B 4891M
D2 1710000470 DIODE 1S955
D4 1710000470 DIODE 1S955
D6 1710000470 DIODE 1S955
D8 1710000470 DIODE 1S955
D10 1710000470 DIODE 1S955
D12 1710000470 DIODE 1S955
D14 1710000470 DIODE 1S955
D15 1710000980 DIODE MBD701
D16 1710000980 DIODE MBD701
D17 1710000470 DIODE 1S955
D18 1710000470 DIODE 1S955
L1 6110003450 COIL LA-539
L2 6110002280 COIL LA-405
L3 6110003430 COIL LA-540
L4 6110002250 COIL LA-402
L6 6110003420 COIL LA-541
L7 6140001900 COIL LR-200
L8 6140001910 COIL LR-201
L9 6140001890 COIL LR-198
L10 6140001940 COIL LR-199
L11 6140003330 COIL LR-369 [EUR-1] only
L12 6140003340 COIL LR-370 [EUR-1] only
L13 6140001860 COIL LR-195
L14 6140001850 COIL LR-194
L15 6180001220 COIL LAL 04NA 100K
L16 6180001220 COIL LAL 04NA 100K
L17 6180001220 COIL LAL 04NA 100K
L18 6180000990 COIL LAL 04NA 101K
L19 6180000990 COIL LAL 04NA 101K
L20 6180000990 COIL LAL 04NA 101K
L21 6180000990 COIL LAL 04NA 101K
L22 6140001001 COIL LR-123A
L23 6180000990 COIL LAL 04NA 101K
L27 6110003440 COIL LA-538
L28 6110003460 COIL LA-537
L29 6110003460 COIL LA-537
L30 6180001220 COIL LAL 04NA 100K
L31 6110002260 COIL LA-403
L32 6180000990 COIL LAL 04NA 101K
L33 6910000670 COIL BL01RN1-A62-001
R2 7010004320 RESISTOR R20J 10 kΩ
R3 7010004320 RESISTOR R20J 10 kΩ
R4 7010004320 RESISTOR R20J 10 kΩ
R5 7010004320 RESISTOR R20J 10 kΩ
R7 7030007360 S.RESISTOR ERJ1WYJ470U (47 Ω)
R8 7030007360 S.RESISTOR ERJ1WYJ470U (47 Ω)
R9 7030007360 S.RESISTOR ERJ1WYJ470U (47 Ω)
R10 7030007360 S.RESISTOR ERJ1WYJ470U (47 Ω)
R11 7010004320 RESISTOR R20J 10 kΩ
R12 7010004320 RESISTOR R20J 10 kΩ
R13 7030007360 S.RESISTOR ERJ1WYJ470U (47 Ω)
R14 7030007360 S.RESISTOR ERJ1WYJ470U (47 Ω)
R15 7540000050 ABSORBER DSA-701MA
C1 4010004770 CERAMIC DE0910 SL 390J 6KV
C4 4010005130 CERAMIC DE0910 SL 470J 6KV
C5 4010005130 CERAMIC DE0910 SL 470J 6KV
C6 4010004770 CERAMIC DE0910 SL 390J 6KV
C7 4010004760 CERAMIC DE0910 SL 330J 6KV
C8 4010004770 CERAMIC DE0910 SL 390J 6KV
C9 4010004800 CERAMIC DE1210 SL 820J 6KV
C10 4010004790 CERAMIC DE1210 SL 680J 6KV
C11 4010004780 CERAMIC DE1010 SL 560J 6KV
C12 4010004810 CERAMIC DE1310 SL 101J 6KV
C13 4010004780 CERAMIC DE1010 SL 560J 6KV
C14 4010004780 CERAMIC DE1010 SL 560J 6KV
5 - 5
REF ORDER
DESCRIPTION
NO. NO.
[MAIN UNIT]
C15 4010004780 CERAMIC DE1010 SL 560J 6KV
C16 4010004770 CERAMIC DE0910 SL 390J 6KV
C18 4010004800 CERAMIC DE1210 SL 820J 6KV
C19 4010004780 CERAMIC DE1010 SL 560J 6KV
C20 4010004790 CERAMIC DE1210 SL 680J 6KV
C23 4010004800 CERAMIC DE1210 SL 820J 6KV
C24 4010004800 CERAMIC DE1210 SL 820J 6KV
C25 4010004820 CERAMIC DE1410 SL 121J 6KV
C26 4010004830 CERAMIC DE1510 SL 151J 6KV
C27 4010004830 CERAMIC DE1510 SL 151J 6KV
C28 4010004830 CERAMIC DE1510 SL 151J 6KV
C29 4010004820 CERAMIC DE1410 SL 121J 6KV
C30 4010004820 CERAMIC DE1410 SL 121J 6KV
C31 4010004810 CERAMIC DE1310 SL 101J 6KV
C32 4010004810 CERAMIC DE1310 SL 101J 6KV
C33 4010005130 CERAMIC DE0910 SL 470J 6KV
C34 4010004820 CERAMIC DE1410 SL 121J 6KV
C35 4010004290 CERAMIC DE1310 SL 181J 3KV
C36 4010004830 CERAMIC DE1510 SL 151J 6KV
C37 4010004830 CERAMIC DE1510 SL 151J 6KV
C38 4010004830 CERAMIC DE1510 SL 151J 6KV
C39 4010004290 CERAMIC DE1310 SL 181J 3KV
C40 4010004290 CERAMIC DE1310 SL 181J 3KV
C41 4010004750 CERAMIC DE1510 SL 331J 2KV
C42 4010004810 CERAMIC DE1310 SL 101J 6KV
C43 4010004740 CERAMIC DE1207 SL 271J 2KV
C44 4010004300 CERAMIC DE1410 SL 221J 3KV
C45 4010004740 CERAMIC DE1207 SL 271J 2KV
C46 4010004740 CERAMIC DE1207 SL 271J 2KV
C47 4010004830 CERAMIC DE1510 SL 151J 6KV
C48 4010004830 CERAMIC DE1510 SL 151J 6KV
C49 4320001150 DIP MICA KD20C 681J5
C50 4320001150 DIP MICA KD20C 681J5
C51 4010004300 CERAMIC DE1410 SL 221J 3KV
C52 4010004300 CERAMIC DE1410 SL 221J 3KV
C53 4010004300 CERAMIC DE1410 SL 221J 3KV
C54 4010004300 CERAMIC DE1410 SL 221J 3KV
C55 4320001150 DIP MICA KD20C 681J5
C56 4320001150 DIP MICA KD20C 681J5
C58 4040000150 BARRIERLAYR UAT 05X 472K
C60 4040000150 BARRIERLAYR UAT 05X 472K
C62 4040000150 BARRIERLAYR UAT 05X 472K
C64 4040000150 BARRIERLAYR UAT 05X 472K
C66 4040000150 BARRIERLAYR UAT 05X 472K
C68 4040000150 BARRIERLAYR UAT 05X 472K
C70 4040000150 BARRIERLAYR UAT 05X 472K
C71 4030004740 S.CERAMIC C2012 JB 1H 472K-T-A
C72 4030004740 S.CERAMIC C2012 JB 1H 472K-T-A
C73 4610001220 TRIMMER CVE101-56 (100P)
C74 4030005040 S.CERAMIC C2012 CH 1H 271J-T-A
C75 4040000150 BARRIERLAYR UAT 05X 472K
C76 4010005080 CERAMIC DE0707 SL 470J 3KV
C77 4010005070 CERAMIC DE0707 SL 390J 3KV
C78 4010005110 CERAMIC DE0910 SL 220J 6KV
C79 4010004760 CERAMIC DE0910 SL 330J 6KV
C80 4010004310 CERAMIC DE0705 SL 100D 1KV
C81 4010004310 CERAMIC DE0705 SL 100D 1KV
C83 4010005030 CERAMIC DE0707 SL 120J 3KV
C86 4010005030 CERAMIC DE0707 SL 120J 3KV
C87 4010005030 CERAMIC DE0707 SL 120J 3KV
C88 4010005110 CERAMIC DE0910 SL 220J 6KV
C89 4010005030 CERAMIC DE0707 SL 120J 3KV
C90 4010005030 CERAMIC DE0707 SL 120J 3KV
C91 4010005030 CERAMIC DE0707 SL 120J 3KV
C95 4010004710 CERAMIC DE0707 SL 150J 3KV
C96 4010005030 CERAMIC DE0707 SL 120J 3KV
C98 4010004700 CERAMIC DE0707 SL 220J 3KV
C100 4010000500 CERAMIC DD104 B 102K 50V
C101 4040000150 BARRIERLAYR UAT 05X 472K
C102 4040000150 BARRIERLAYR UAT 05X 472K
C103 4040000150 BARRIERLAYR UAT 05X 472K
C104 4040000150 BARRIERLAYR UAT 05X 472K
C107 4030004740 S.CERAMIC C2012 JB 1H 472K-T-A
C108 4030004740 S.CERAMIC C2012 JB 1H 472K-T-A
C110 4010004820 CERAMIC DE1410 SL 121J 6KV
C112 4010004800 CERAMIC DE1210 SL 820J 6KV
C115 4010006900 CERAMIC HE80SJ YB 472K 50V
C116 4010004770 CERAMIC DE0910 SL 390J 6KV
C117 4010004750 CERAMIC DE1510 SL 331J 2KV
C118 4010005120 CERAMIC DE0910 SL 270J 6KV
C119 4010005120 CERAMIC DE0910 SL 270J 6KV
C120 4010005030 CERAMIC DE0707 SL 120J 3KV
REF ORDER
DESCRIPTION
NO. NO.
[FILTER UNIT]
REF ORDER
DESCRIPTION
NO. NO.
[FILTER UNIT]
