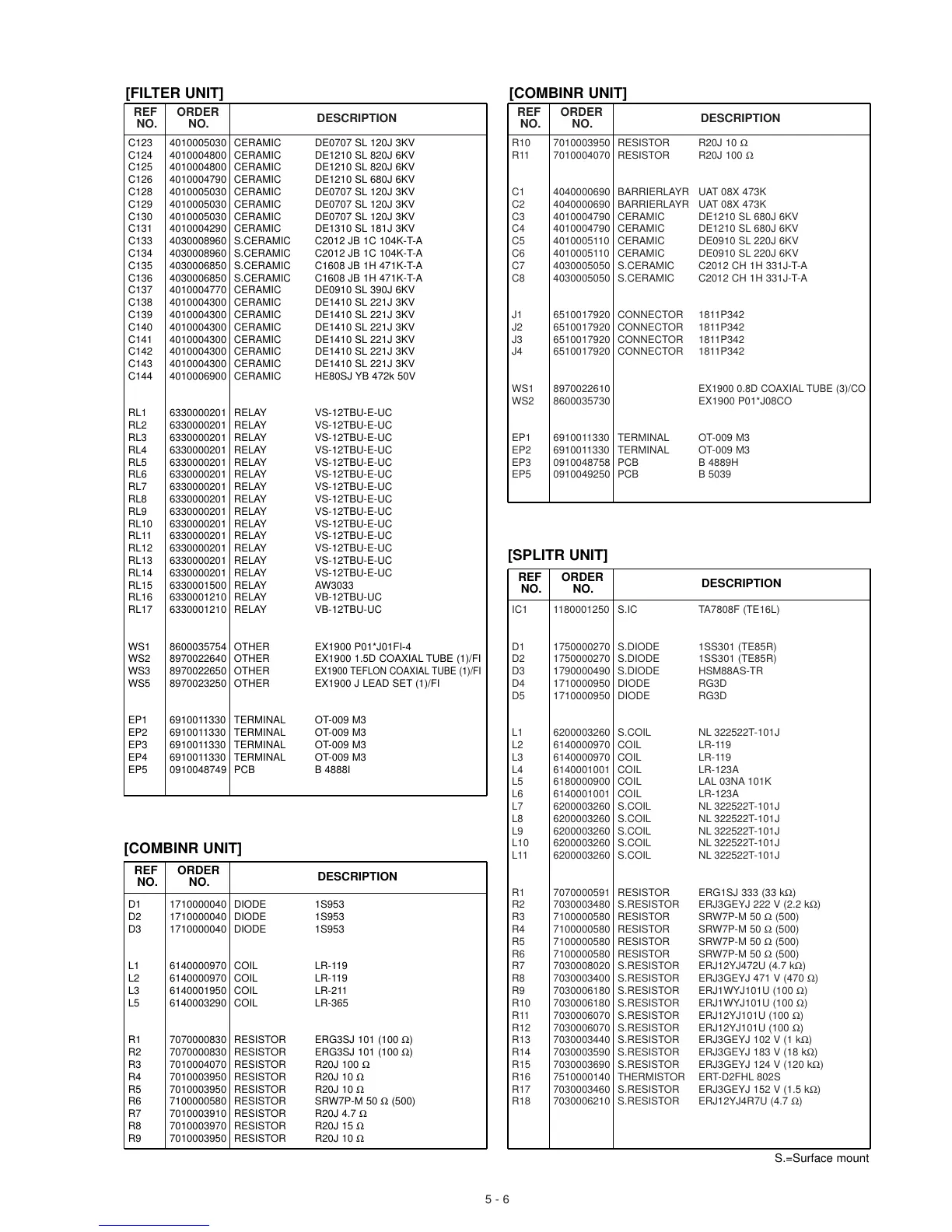

Icom IC-PW1 Service Manual Addendum

5 - 6
S.=Surface mount
C123 4010005030 CERAMIC DE0707 SL 120J 3KV
C124 4010004800 CERAMIC DE1210 SL 820J 6KV
C125 4010004800 CERAMIC DE1210 SL 820J 6KV
C126 4010004790 CERAMIC DE1210 SL 680J 6KV
C128 4010005030 CERAMIC DE0707 SL 120J 3KV
C129 4010005030 CERAMIC DE0707 SL 120J 3KV
C130 4010005030 CERAMIC DE0707 SL 120J 3KV
C131 4010004290 CERAMIC DE1310 SL 181J 3KV
C133 4030008960 S.CERAMIC C2012 JB 1C 104K-T-A
C134 4030008960 S.CERAMIC C2012 JB 1C 104K-T-A
C135 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C136 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C137 4010004770 CERAMIC DE0910 SL 390J 6KV
C138 4010004300 CERAMIC DE1410 SL 221J 3KV
C139 4010004300 CERAMIC DE1410 SL 221J 3KV
C140 4010004300 CERAMIC DE1410 SL 221J 3KV
C141 4010004300 CERAMIC DE1410 SL 221J 3KV
C142 4010004300 CERAMIC DE1410 SL 221J 3KV
C143 4010004300 CERAMIC DE1410 SL 221J 3KV
C144 4010006900 CERAMIC HE80SJ YB 472k 50V
RL1 6330000201 RELAY VS-12TBU-E-UC
RL2 6330000201 RELAY VS-12TBU-E-UC
RL3 6330000201 RELAY VS-12TBU-E-UC
RL4 6330000201 RELAY VS-12TBU-E-UC
RL5 6330000201 RELAY VS-12TBU-E-UC
RL6 6330000201 RELAY VS-12TBU-E-UC
RL7 6330000201 RELAY VS-12TBU-E-UC
RL8 6330000201 RELAY VS-12TBU-E-UC
RL9 6330000201 RELAY VS-12TBU-E-UC
RL10 6330000201 RELAY VS-12TBU-E-UC
RL11 6330000201 RELAY VS-12TBU-E-UC
RL12 6330000201 RELAY VS-12TBU-E-UC
RL13 6330000201 RELAY VS-12TBU-E-UC
RL14 6330000201 RELAY VS-12TBU-E-UC
RL15 6330001500 RELAY AW3033
RL16 6330001210 RELAY VB-12TBU-UC
RL17 6330001210 RELAY VB-12TBU-UC
WS1 8600035754 OTHER EX1900 P01*J01FI-4
WS2 8970022640 OTHER EX1900 1.5D COAXIAL TUBE (1)/FI
WS3 8970022650 OTHER
EX1900 TEFLON COAXIAL TUBE (1)/FI
WS5 8970023250 OTHER EX1900 J LEAD SET (1)/FI
EP1 6910011330 TERMINAL OT-009 M3
EP2 6910011330 TERMINAL OT-009 M3
EP3 6910011330 TERMINAL OT-009 M3
EP4 6910011330 TERMINAL OT-009 M3
EP5 0910048749 PCB B 4888I
D1 1710000040 DIODE 1S953
D2 1710000040 DIODE 1S953
D3 1710000040 DIODE 1S953
L1 6140000970 COIL LR-119
L2 6140000970 COIL LR-119
L3 6140001950 COIL LR-211
L5 6140003290 COIL LR-365
R1 7070000830 RESISTOR ERG3SJ 101 (100 Ω)
R2 7070000830 RESISTOR ERG3SJ 101 (100 Ω)
R3 7010004070 RESISTOR R20J 100 Ω
R4 7010003950 RESISTOR R20J 10 Ω
R5 7010003950 RESISTOR R20J 10 Ω
R6 7100000580 RESISTOR SRW7P-M 50 Ω (500)
R7 7010003910 RESISTOR R20J 4.7 Ω
R8 7010003970 RESISTOR R20J 15 Ω
R9 7010003950 RESISTOR R20J 10 Ω
REF ORDER
DESCRIPTION
NO. NO.
[FILTER UNIT]
R10 7010003950 RESISTOR R20J 10 Ω
R11 7010004070 RESISTOR R20J 100 Ω
C1 4040000690 BARRIERLAYR UAT 08X 473K
C2 4040000690 BARRIERLAYR UAT 08X 473K
C3 4010004790 CERAMIC DE1210 SL 680J 6KV
C4 4010004790 CERAMIC DE1210 SL 680J 6KV
C5 4010005110 CERAMIC DE0910 SL 220J 6KV
C6 4010005110 CERAMIC DE0910 SL 220J 6KV
C7 4030005050 S.CERAMIC C2012 CH 1H 331J-T-A
C8 4030005050 S.CERAMIC C2012 CH 1H 331J-T-A
J1 6510017920 CONNECTOR 1811P342
J2 6510017920 CONNECTOR 1811P342
J3 6510017920 CONNECTOR 1811P342
J4 6510017920 CONNECTOR 1811P342
WS1 8970022610
EX1900 0.8D COAXIAL TUBE (3)/CO
WS2 8600035730 EX1900 P01*J08CO
EP1 6910011330 TERMINAL OT-009 M3
EP2 6910011330 TERMINAL OT-009 M3
EP3 0910048758 PCB B 4889H
EP5 0910049250 PCB B 5039
IC1 1180001250 S.IC TA7808F (TE16L)
D1 1750000270 S.DIODE 1SS301 (TE85R)
D2 1750000270 S.DIODE 1SS301 (TE85R)
D3 1790000490 S.DIODE HSM88AS-TR
D4 1710000950 DIODE RG3D
D5 1710000950 DIODE RG3D
L1 6200003260 S.COIL NL 322522T-101J
L2 6140000970 COIL LR-119
L3 6140000970 COIL LR-119
L4 6140001001 COIL LR-123A
L5 6180000900 COIL LAL 03NA 101K
L6 6140001001 COIL LR-123A
L7 6200003260 S.COIL NL 322522T-101J
L8 6200003260 S.COIL NL 322522T-101J
L9 6200003260 S.COIL NL 322522T-101J
L10 6200003260 S.COIL NL 322522T-101J
L11 6200003260 S.COIL NL 322522T-101J
R1 7070000591 RESISTOR ERG1SJ 333 (33 kΩ)
R2 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R3 7100000580 RESISTOR SRW7P-M 50 Ω (500)
R4 7100000580 RESISTOR SRW7P-M 50 Ω (500)
R5 7100000580 RESISTOR SRW7P-M 50 Ω (500)
R6 7100000580 RESISTOR SRW7P-M 50 Ω (500)
R7 7030008020 S.RESISTOR ERJ12YJ472U (4.7 kΩ)
R8 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R9 7030006180 S.RESISTOR ERJ1WYJ101U (100 Ω)
R10 7030006180 S.RESISTOR ERJ1WYJ101U (100 Ω)
R11 7030006070 S.RESISTOR ERJ12YJ101U (100 Ω)
R12 7030006070 S.RESISTOR ERJ12YJ101U (100 Ω)
R13 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R14 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ)
R15 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R16 7510000140 THERMISTOR ERT-D2FHL 802S
R17 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R18 7030006210 S.RESISTOR ERJ12YJ4R7U (4.7 Ω)
REF ORDER
DESCRIPTION
NO. NO.
[COMBINR UNIT]
REF ORDER
DESCRIPTION
NO. NO.
[COMBINR UNIT]
REF ORDER
DESCRIPTION
NO. NO.
[SPLITR UNIT]
