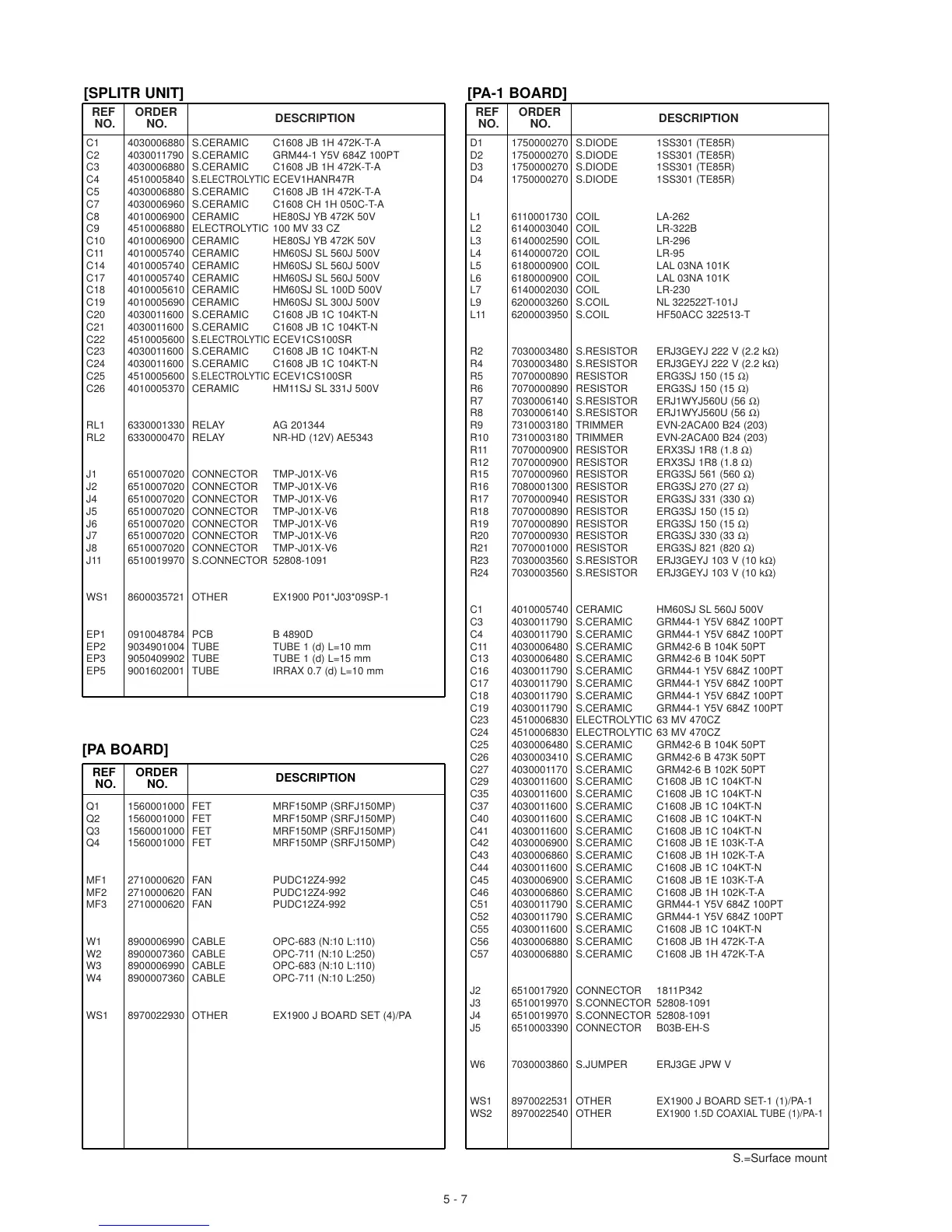

Icom IC-PW1 Service Manual Addendum

S.=Surface mount
C1 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C2 4030011790 S.CERAMIC GRM44-1 Y5V 684Z 100PT
C3 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C4 4510005840
S.ELECTROLYTIC ECEV1HANR47R
C5 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C7 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A
C8 4010006900 CERAMIC HE80SJ YB 472K 50V
C9 4510006880 ELECTROLYTIC 100 MV 33 CZ
C10 4010006900 CERAMIC HE80SJ YB 472K 50V
C11 4010005740 CERAMIC HM60SJ SL 560J 500V
C14 4010005740 CERAMIC HM60SJ SL 560J 500V
C17 4010005740 CERAMIC HM60SJ SL 560J 500V
C18 4010005610 CERAMIC HM60SJ SL 100D 500V
C19 4010005690 CERAMIC HM60SJ SL 300J 500V
C20 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C21 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C22 4510005600
S.ELECTROLYTIC ECEV1CS100SR
C23 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C24 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C25 4510005600
S.ELECTROLYTIC ECEV1CS100SR
C26 4010005370 CERAMIC HM11SJ SL 331J 500V
RL1 6330001330 RELAY AG 201344
RL2 6330000470 RELAY NR-HD (12V) AE5343
J1 6510007020 CONNECTOR TMP-J01X-V6
J2 6510007020 CONNECTOR TMP-J01X-V6
J4 6510007020 CONNECTOR TMP-J01X-V6
J5 6510007020 CONNECTOR TMP-J01X-V6
J6 6510007020 CONNECTOR TMP-J01X-V6
J7 6510007020 CONNECTOR TMP-J01X-V6
J8 6510007020 CONNECTOR TMP-J01X-V6
J11 6510019970 S.CONNECTOR 52808-1091
WS1 8600035721 OTHER EX1900 P01*J03*09SP-1
EP1 0910048784 PCB B 4890D
EP2 9034901004 TUBE TUBE 1 (d) L=10 mm
EP3 9050409902 TUBE TUBE 1 (d) L=15 mm
EP5 9001602001 TUBE IRRAX 0.7 (d) L=10 mm
Q1 1560001000 FET MRF150MP (SRFJ150MP)
Q2 1560001000 FET MRF150MP (SRFJ150MP)
Q3 1560001000 FET MRF150MP (SRFJ150MP)
Q4 1560001000 FET MRF150MP (SRFJ150MP)
MF1 2710000620 FAN PUDC12Z4-992
MF2 2710000620 FAN PUDC12Z4-992
MF3 2710000620 FAN PUDC12Z4-992
W1 8900006990 CABLE OPC-683 (N:10 L:110)
W2 8900007360 CABLE OPC-711 (N:10 L:250)
W3 8900006990 CABLE OPC-683 (N:10 L:110)
W4 8900007360 CABLE OPC-711 (N:10 L:250)
WS1 8970022930 OTHER EX1900 J BOARD SET (4)/PA
5 - 7
REF ORDER
DESCRIPTION
NO. NO.
[SPLITR UNIT]
D1 1750000270 S.DIODE 1SS301 (TE85R)
D2 1750000270 S.DIODE 1SS301 (TE85R)
D3 1750000270 S.DIODE 1SS301 (TE85R)
D4 1750000270 S.DIODE 1SS301 (TE85R)
L1 6110001730 COIL LA-262
L2 6140003040 COIL LR-322B
L3 6140002590 COIL LR-296
L4 6140000720 COIL LR-95
L5 6180000900 COIL LAL 03NA 101K
L6 6180000900 COIL LAL 03NA 101K
L7 6140002030 COIL LR-230
L9 6200003260 S.COIL NL 322522T-101J
L11 6200003950 S.COIL HF50ACC 322513-T
R2 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R4 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R5 7070000890 RESISTOR ERG3SJ 150 (15 Ω)
R6 7070000890 RESISTOR ERG3SJ 150 (15 Ω)
R7 7030006140 S.RESISTOR ERJ1WYJ560U (56 Ω)
R8 7030006140 S.RESISTOR ERJ1WYJ560U (56 Ω)
R9 7310003180 TRIMMER EVN-2ACA00 B24 (203)
R10 7310003180 TRIMMER EVN-2ACA00 B24 (203)
R11 7070000900 RESISTOR ERX3SJ 1R8 (1.8 Ω)
R12 7070000900 RESISTOR ERX3SJ 1R8 (1.8 Ω)
R15 7070000960 RESISTOR ERG3SJ 561 (560 Ω)
R16 7080001300 RESISTOR ERG3SJ 270 (27 Ω)
R17 7070000940 RESISTOR ERG3SJ 331 (330 Ω)
R18 7070000890 RESISTOR ERG3SJ 150 (15 Ω)
R19 7070000890 RESISTOR ERG3SJ 150 (15 Ω)
R20 7070000930 RESISTOR ERG3SJ 330 (33 Ω)
R21 7070001000 RESISTOR ERG3SJ 821 (820 Ω)
R23 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R24 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
C1 4010005740 CERAMIC HM60SJ SL 560J 500V
C3 4030011790 S.CERAMIC GRM44-1 Y5V 684Z 100PT
C4 4030011790 S.CERAMIC GRM44-1 Y5V 684Z 100PT
C11 4030006480 S.CERAMIC GRM42-6 B 104K 50PT
C13 4030006480 S.CERAMIC GRM42-6 B 104K 50PT
C16 4030011790 S.CERAMIC GRM44-1 Y5V 684Z 100PT
C17 4030011790 S.CERAMIC GRM44-1 Y5V 684Z 100PT
C18 4030011790 S.CERAMIC GRM44-1 Y5V 684Z 100PT
C19 4030011790 S.CERAMIC GRM44-1 Y5V 684Z 100PT
C23 4510006830 ELECTROLYTIC 63 MV 470CZ
C24 4510006830 ELECTROLYTIC 63 MV 470CZ
C25 4030006480 S.CERAMIC GRM42-6 B 104K 50PT
C26 4030003410 S.CERAMIC GRM42-6 B 473K 50PT
C27 4030001170 S.CERAMIC GRM42-6 B 102K 50PT
C29 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C35 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C37 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C40 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C41 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C42 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C43 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C44 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C45 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C46 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C51 4030011790 S.CERAMIC GRM44-1 Y5V 684Z 100PT
C52 4030011790 S.CERAMIC GRM44-1 Y5V 684Z 100PT
C55 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C56 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C57 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
J2 6510017920 CONNECTOR 1811P342
J3 6510019970 S.CONNECTOR 52808-1091
J4 6510019970 S.CONNECTOR 52808-1091
J5 6510003390 CONNECTOR B03B-EH-S
W6 7030003860 S.JUMPER ERJ3GE JPW V
WS1 8970022531 OTHER EX1900 J BOARD SET-1 (1)/PA-1
WS2 8970022540 OTHER
EX1900 1.5D COAXIAL TUBE (1)/PA-1
REF ORDER
DESCRIPTION
NO. NO.
[PA-1 BOARD]
REF ORDER
DESCRIPTION
NO. NO.
[PA BOARD]
