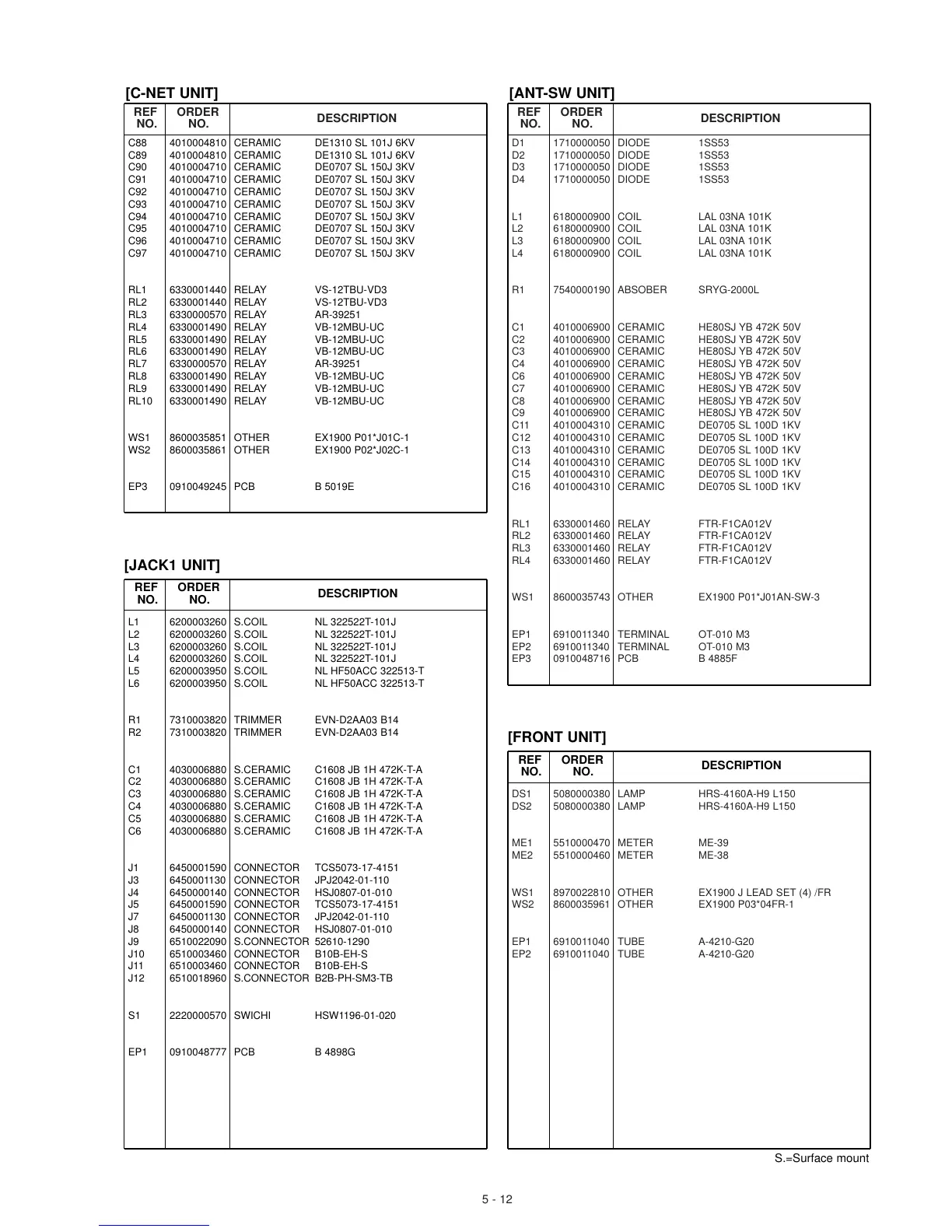

Icom IC-PW1 Service Manual Addendum

5 - 12
S.=Surface mount
C88 4010004810 CERAMIC DE1310 SL 101J 6KV
C89 4010004810 CERAMIC DE1310 SL 101J 6KV
C90 4010004710 CERAMIC DE0707 SL 150J 3KV
C91 4010004710 CERAMIC DE0707 SL 150J 3KV
C92 4010004710 CERAMIC DE0707 SL 150J 3KV
C93 4010004710 CERAMIC DE0707 SL 150J 3KV
C94 4010004710 CERAMIC DE0707 SL 150J 3KV
C95 4010004710 CERAMIC DE0707 SL 150J 3KV
C96 4010004710 CERAMIC DE0707 SL 150J 3KV
C97 4010004710 CERAMIC DE0707 SL 150J 3KV
RL1 6330001440 RELAY VS-12TBU-VD3
RL2 6330001440 RELAY VS-12TBU-VD3
RL3 6330000570 RELAY AR-39251
RL4 6330001490 RELAY VB-12MBU-UC
RL5 6330001490 RELAY VB-12MBU-UC
RL6 6330001490 RELAY VB-12MBU-UC
RL7 6330000570 RELAY AR-39251
RL8 6330001490 RELAY VB-12MBU-UC
RL9 6330001490 RELAY VB-12MBU-UC
RL10 6330001490 RELAY VB-12MBU-UC
WS1 8600035851 OTHER EX1900 P01*J01C-1
WS2 8600035861 OTHER EX1900 P02*J02C-1
EP3 0910049245 PCB B 5019E
L1 6200003260 S.COIL NL 322522T-101J
L2 6200003260 S.COIL NL 322522T-101J
L3 6200003260 S.COIL NL 322522T-101J
L4 6200003260 S.COIL NL 322522T-101J
L5 6200003950 S.COIL NL HF50ACC 322513-T
L6 6200003950 S.COIL NL HF50ACC 322513-T
R1 7310003820 TRIMMER EVN-D2AA03 B14
R2 7310003820 TRIMMER EVN-D2AA03 B14
C1 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C2 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C3 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C4 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C5 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C6 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
J1 6450001590 CONNECTOR TCS5073-17-4151
J3 6450001130 CONNECTOR JPJ2042-01-110
J4 6450000140 CONNECTOR HSJ0807-01-010
J5 6450001590 CONNECTOR TCS5073-17-4151
J7 6450001130 CONNECTOR JPJ2042-01-110
J8 6450000140 CONNECTOR HSJ0807-01-010
J9 6510022090 S.CONNECTOR 52610-1290
J10 6510003460 CONNECTOR B10B-EH-S
J11 6510003460 CONNECTOR B10B-EH-S
J12 6510018960 S.CONNECTOR B2B-PH-SM3-TB
S1 2220000570 SWICHI HSW1196-01-020
EP1 0910048777 PCB B 4898G
REF ORDER
DESCRIPTION
NO. NO.
[C-NET UNIT]
D1 1710000050 DIODE 1SS53
D2 1710000050 DIODE 1SS53
D3 1710000050 DIODE 1SS53
D4 1710000050 DIODE 1SS53
L1 6180000900 COIL LAL 03NA 101K
L2 6180000900 COIL LAL 03NA 101K
L3 6180000900 COIL LAL 03NA 101K
L4 6180000900 COIL LAL 03NA 101K
R1 7540000190 ABSOBER SRYG-2000L
C1 4010006900 CERAMIC HE80SJ YB 472K 50V
C2 4010006900 CERAMIC HE80SJ YB 472K 50V
C3 4010006900 CERAMIC HE80SJ YB 472K 50V
C4 4010006900 CERAMIC HE80SJ YB 472K 50V
C6 4010006900 CERAMIC HE80SJ YB 472K 50V
C7 4010006900 CERAMIC HE80SJ YB 472K 50V
C8 4010006900 CERAMIC HE80SJ YB 472K 50V
C9 4010006900 CERAMIC HE80SJ YB 472K 50V
C11 4010004310 CERAMIC DE0705 SL 100D 1KV
C12 4010004310 CERAMIC DE0705 SL 100D 1KV
C13 4010004310 CERAMIC DE0705 SL 100D 1KV
C14 4010004310 CERAMIC DE0705 SL 100D 1KV
C15 4010004310 CERAMIC DE0705 SL 100D 1KV
C16 4010004310 CERAMIC DE0705 SL 100D 1KV
RL1 6330001460 RELAY FTR-F1CA012V
RL2 6330001460 RELAY FTR-F1CA012V
RL3 6330001460 RELAY FTR-F1CA012V
RL4 6330001460 RELAY FTR-F1CA012V
WS1 8600035743 OTHER EX1900 P01*J01AN-SW-3
EP1 6910011340 TERMINAL OT-010 M3
EP2 6910011340 TERMINAL OT-010 M3
EP3 0910048716 PCB B 4885F
DS1 5080000380 LAMP HRS-4160A-H9 L150
DS2 5080000380 LAMP HRS-4160A-H9 L150
ME1 5510000470 METER ME-39
ME2 5510000460 METER ME-38
WS1 8970022810 OTHER EX1900 J LEAD SET (4) /FR
WS2 8600035961 OTHER EX1900 P03*04FR-1
EP1 6910011040 TUBE A-4210-G20
EP2 6910011040 TUBE A-4210-G20
REF ORDER
DESCRIPTION
NO. NO.
[ANT-SW UNIT]
REF ORDER
DESCRIPTION
NO. NO.
[JACK1 UNIT]
REF ORDER
DESCRIPTION
NO. NO.
[FRONT UNIT]
