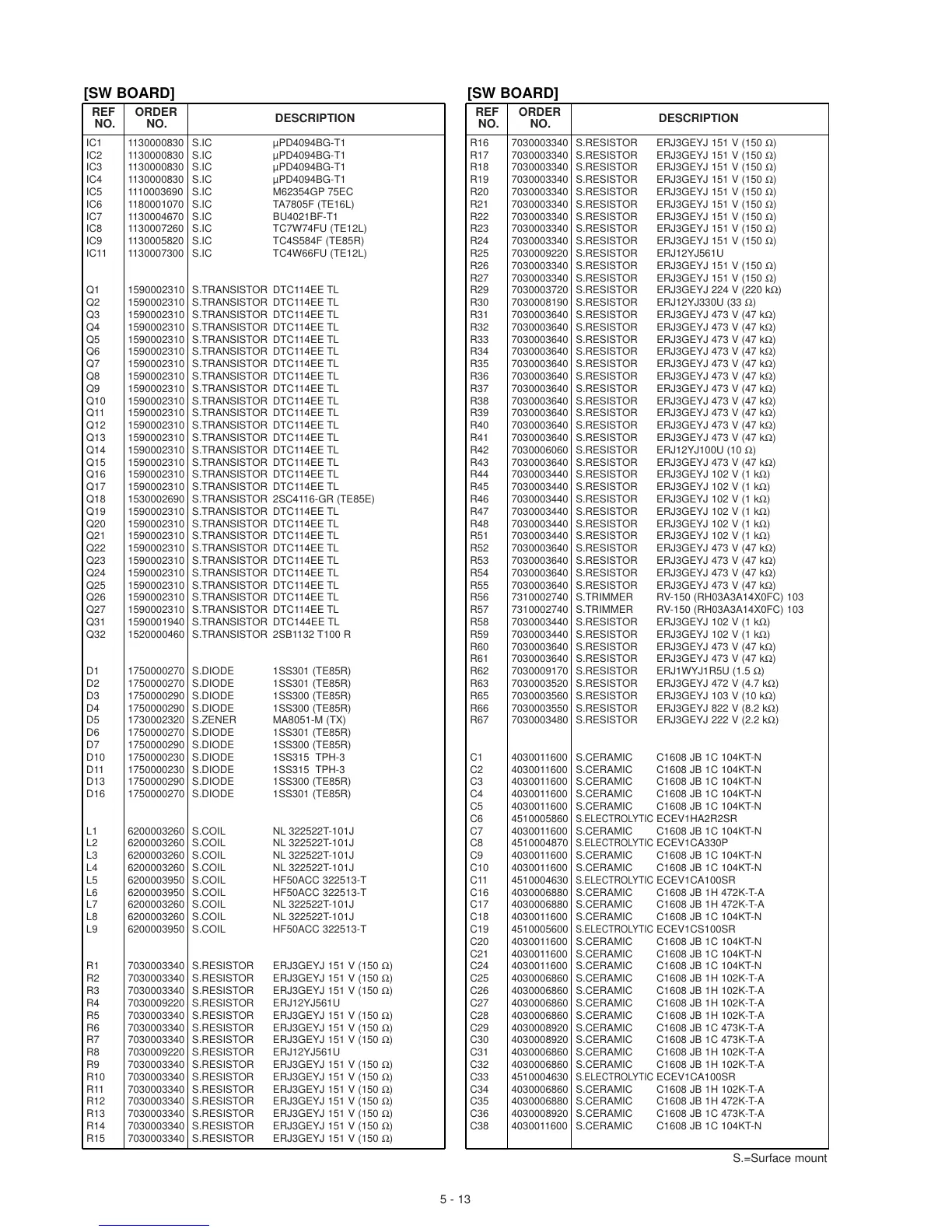

Icom IC-PW1 Service Manual Addendum

S.=Surface mount
IC1 1130000830 S.IC µPD4094BG-T1
IC2 1130000830 S.IC µPD4094BG-T1
IC3 1130000830 S.IC µPD4094BG-T1
IC4 1130000830 S.IC µPD4094BG-T1
IC5 1110003690 S.IC M62354GP 75EC
IC6 1180001070 S.IC TA7805F (TE16L)
IC7 1130004670 S.IC BU4021BF-T1
IC8 1130007260 S.IC TC7W74FU (TE12L)
IC9 1130005820 S.IC TC4S584F (TE85R)
IC11 1130007300 S.IC TC4W66FU (TE12L)
Q1 1590002310 S.TRANSISTOR DTC114EE TL
Q2 1590002310 S.TRANSISTOR DTC114EE TL
Q3 1590002310 S.TRANSISTOR DTC114EE TL
Q4 1590002310 S.TRANSISTOR DTC114EE TL
Q5 1590002310 S.TRANSISTOR DTC114EE TL
Q6 1590002310 S.TRANSISTOR DTC114EE TL
Q7 1590002310 S.TRANSISTOR DTC114EE TL
Q8 1590002310 S.TRANSISTOR DTC114EE TL
Q9 1590002310 S.TRANSISTOR DTC114EE TL
Q10 1590002310 S.TRANSISTOR DTC114EE TL
Q11 1590002310 S.TRANSISTOR DTC114EE TL
Q12 1590002310 S.TRANSISTOR DTC114EE TL
Q13 1590002310 S.TRANSISTOR DTC114EE TL
Q14 1590002310 S.TRANSISTOR DTC114EE TL
Q15 1590002310 S.TRANSISTOR DTC114EE TL
Q16 1590002310 S.TRANSISTOR DTC114EE TL
Q17 1590002310 S.TRANSISTOR DTC114EE TL
Q18 1530002690 S.TRANSISTOR 2SC4116-GR (TE85E)
Q19 1590002310 S.TRANSISTOR DTC114EE TL
Q20 1590002310 S.TRANSISTOR DTC114EE TL
Q21 1590002310 S.TRANSISTOR DTC114EE TL
Q22 1590002310 S.TRANSISTOR DTC114EE TL
Q23 1590002310 S.TRANSISTOR DTC114EE TL
Q24 1590002310 S.TRANSISTOR DTC114EE TL
Q25 1590002310 S.TRANSISTOR DTC114EE TL
Q26 1590002310 S.TRANSISTOR DTC114EE TL
Q27 1590002310 S.TRANSISTOR DTC114EE TL
Q31 1590001940 S.TRANSISTOR DTC144EE TL
Q32 1520000460 S.TRANSISTOR 2SB1132 T100 R
D1 1750000270 S.DIODE 1SS301 (TE85R)
D2 1750000270 S.DIODE 1SS301 (TE85R)
D3 1750000290 S.DIODE 1SS300 (TE85R)
D4 1750000290 S.DIODE 1SS300 (TE85R)
D5 1730002320 S.ZENER MA8051-M (TX)
D6 1750000270 S.DIODE 1SS301 (TE85R)
D7 1750000290 S.DIODE 1SS300 (TE85R)
D10 1750000230 S.DIODE 1SS315 TPH-3
D11 1750000230 S.DIODE 1SS315 TPH-3
D13 1750000290 S.DIODE 1SS300 (TE85R)
D16 1750000270 S.DIODE 1SS301 (TE85R)
L1 6200003260 S.COIL NL 322522T-101J
L2 6200003260 S.COIL NL 322522T-101J
L3 6200003260 S.COIL NL 322522T-101J
L4 6200003260 S.COIL NL 322522T-101J
L5 6200003950 S.COIL HF50ACC 322513-T
L6 6200003950 S.COIL HF50ACC 322513-T
L7 6200003260 S.COIL NL 322522T-101J
L8 6200003260 S.COIL NL 322522T-101J
L9 6200003950 S.COIL HF50ACC 322513-T
R1 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R2 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R3 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R4 7030009220 S.RESISTOR ERJ12YJ561U
R5 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R6 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R7 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R8 7030009220 S.RESISTOR ERJ12YJ561U
R9 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R10 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R11 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R12 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R13 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R14 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R15 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
5 - 13
REF ORDER
DESCRIPTION
NO. NO.
[SW BOARD]
R16 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R17 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R18 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R19 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R20 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R21 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R22 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R23 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R24 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R25 7030009220 S.RESISTOR ERJ12YJ561U
R26 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R27 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R29 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R30 7030008190 S.RESISTOR ERJ12YJ330U (33 Ω)
R31 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R32 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R33 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R34 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R35 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R36 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R37 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R38 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R39 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R40 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R41 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R42 7030006060 S.RESISTOR ERJ12YJ100U (10 Ω)
R43 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R44 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R45 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R46 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R47 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R48 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R51 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R52 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R53 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R54 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R55 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R56 7310002740 S.TRIMMER RV-150 (RH03A3A14X0FC) 103
R57 7310002740 S.TRIMMER RV-150 (RH03A3A14X0FC) 103
R58 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R59 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R60 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R61 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R62 7030009170 S.RESISTOR ERJ1WYJ1R5U (1.5 Ω)
R63 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R65 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R66 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ)
R67 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
C1 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C2 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C3 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C4 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C5 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C6 4510005860
S.ELECTROLYTIC ECEV1HA2R2SR
C7 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C8 4510004870 S.ELECTROLYTIC ECEV1CA330P
C9 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C10 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C11 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C16 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C17 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C18 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C19 4510005600 S.ELECTROLYTIC ECEV1CS100SR
C20 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C21 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C24 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C25 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C26 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C27 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C28 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C29 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A
C30 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A
C31 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C32 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C33 4510004630
S.ELECTROLYTIC ECEV1CA100SR
C34 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C35 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C36 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A
C38 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
REF ORDER
DESCRIPTION
NO. NO.
[SW BOARD]
