Icom IC-PW1 Service Manual Addendum

S.=Surface mount
L1 6140003310 COIL LR-366
L2 6140003310 COIL LR-366
L3 6140003300 COIL LR-367
R1 7100000760 RESISTOR RH-25 10 kΩ
R2 7100000750 RESISTOR RH-50 390 Ω
R3 7520000120 POSISTOR PTH9M04 BC 222TS-2F333
F1 5210000630 FUSE W28XQ1A 20A [USA]
5210000640 FUSE W28XQ1A 15A [EUR], [EUR-1]
F2 5210000630 FUSE W28XQ1A 20A [USA]
5210000640 FUSE W28XQ1A 15A [EUR], [EUR-1]
S1 6910006900 THERMAL OHD-3 110M [EUR-1]
6910011800 THERMAL OHD3-130M [USA], [EUR]
T1 5910000860 TRANSFORMER TP-69 [USA], [EUR]
5910000861 TRANSFORMER TP-69A [EUR-1]
MF1 2710000640 FAN MMF-12C12DH-R06
W1 8900007300 CABLE OPC-709 [EUR]
8900007310 CABLE OPC-707 [USA]
8900008830 CABLE OPC-855 [EUR-1]
WS1 8970022822 OTHER PX1981 J BOARD SET-2 (6)/RE
WS2 8600036251 OTHER PX1981 P05RE-1
WS3 8600036510 OTHER PX1981 P06RE
EP1 6510008350 TERMINAL ML-1750A 4P
EP2 8930042970 COVER PG-47-02
EP15 6950000410 E.OTHER SUPER GROUND (FGA21M-11B)
EP16 6910010950 PIPE NB-15
EP17 9019810780 TUBE
HEAT CONTRACTION TUBE F 6 (d) L=25 mm
EP18 9019810780 TUBE HEAT CONTRACTION TUBE F 6 (d) L=25 mm
EP23 6910011160 TUBE T-105 NO.1/2 L=250 mm
EP24 9019810770 TUBE HEAT CONTRACTION TUBE F 15 (d) L=45 mm
EP27 9019810770 TUBE HEAT CONTRACTION TUBE F 15 (d) L=45 mm
EP29 6910010480 BEAD DL-7C 0R-31-15-19H
EP34 6910010480 BEAD DL-7C 0R-31-15-19H
EP35 6910010480 BEAD DL-7C 0R-31-15-19H
EP36 6910011140 TUBE T-105 NO.6 L=220 mm
EP37 6910010480 BEAD DL-7C 0R-31-15-19H
EP38 6910010480 BEAD DL-7C 0R-31-15-19H
EP39 9030694001 TUBE HEAT CONTRACTION TUBE 2 (d) L=20 mm
EP41 9019810810 TUBE HEAT CONTRACTION TUBE F 40 (d) L=25 mm
EP42 6910010480 BEAD DL-7C 0R-31-15-19H
EP43 9019810810 TUBE HEAT CONTRACTION TUBE F 40 (d) L=25 mm
IC2 1170000320 IC PC111YS
IC3 1180001620 IC HA17431PA
IC4 1170000320 IC PC111YS
IC5 1180001710 IC TA78M18S
IC6 1170000320 IC PC111YS
IC7 1170000320 IC PC111YS
Q1 1530003520 TRANSISTOR 2SC4237
Q2 1530002080 TRANSISTOR 2SC2655-Y (C)
Q3 1530002080 TRANSISTOR 2SC2655-Y (C)
Q4 1530003530 TRANSISTOR 2SC3075
Q5 1530000040 TRANSISTOR 2SC1815-Y
Q6 1530003540 TRANSISTOR 2SA1020-Y (C)
5 - 15
REF ORDER
DESCRIPTION
NO. NO.
[REG UNIT]
D1 1710000930 BRIDGE D3SBA60
D2 1790000780 DIODE RG-4C
D3 1790001510 DIODE SF5S6
D4 1790001360 DIODE SF10SC6
D5 1790001490 DIODE D1NL20U-4070
D6 1730002480 ZENER RD6.2F B2
D7 1730000070 ZENER RD3.9E B2
D8 1790001230 BRIDGE S1VB60
D9 1730002470 ZENER RD100E B
D10 1790001510 DIODE SF5S6
L2 6190001220 COIL TSL1112 100M 10U
L3 6140002030 COIL LR-230 (SK-10M-15Y 120)
L4 5920000450 COIL FK-080E-1020
R1 7100000770 RESISTOR RGU5L 6.8 Ω
R2 7080001340 RESISTOR ERG3SJ 473 (47 kΩ)
R3 7070000271 RESISTOR ERG1SJ 101 (100 Ω)
R4 7010007040 RESISTOR PSD1/4 270 kΩ
R5 7070001020 RESISTOR ERX3SJ 5R6 (5.6 Ω)
R6 7070001020 RESISTOR ERX3SJ 5R6 (5.6 Ω)
R7 7070000940 RESISTOR ERG3SJ 331 (330 Ω)
R8 7070000301 RESISTOR ERG1SJ 331 (330 Ω)
R9 7010007100 RESISTOR PSD1/4V 1 kΩ
R10 7010007100 RESISTOR PSD1/4V 1 kΩ
R11 7010007150 RESISTOR PSD1/4V 10 kΩ
R12 7310001240 TRIMMER RH0621CS2J1KA (471)
R13 7010007110 RESISTOR PSD1/4V 2.2 kΩ
R14 7010006930 RESISTOR PSD1/4 470 Ω
R15 7310001090 TRIMMER RH0621C13J1TA (102)
R16 7010007270 RESISTOR PSD1/4V 270 kΩ
R17 7010007100 RESISTOR PSD1/4V 1 kΩ
R18 7010007030 RESISTOR PSD1/4 120 kΩ
R19 7010007030 RESISTOR PSD1/4 120 kΩ
R20 7010007020 RESISTOR PSD1/4 100 kΩ
R21 7010007020 RESISTOR PSD1/4 100 kΩ
R22 7010006980 RESISTOR PSD1/4 10 kΩ
R23 7010006980 RESISTOR PSD1/4 10 kΩ
R24 7010007080 RESISTOR PSN1/4 560 kΩ
R25 7070000910 RESISTOR ERG2SJ 104 (100 kΩ)
R26 7070000920 RESISTOR ERG3SJ 103 (10 kΩ)
R27 7010007100 RESISTOR PSD1/4V 1 kΩ
R28 7010007170 RESISTOR PSD1/4V 18 kΩ
R29 7070000920 RESISTOR ERG3SJ 103 (10 kΩ)
R30 7070000920 RESISTOR ERG3SJ 103 (10 kΩ)
R31 7070000920 RESISTOR ERG3SJ 103 (10 kΩ)
R32 7070000990 RESISTOR ERG3SJ 221 (220 Ω)
R33 7010007070 RESISTOR PSN1/4 2.2 kΩ
R34 7010006950 RESISTOR PSD1/4 1.5 kΩ
R35 7010006960 RESISTOR PSD1/4 2.2 kΩ
R36 7100000770 RESISTOR RGU5L 6.8 Ω [EUR-1] only
R37 7100000770 RESISTOR RGU5L 6.8 Ω [EUR-1] only
R38 7070001020 RESISTOR ERX3SJ 5R6 (5.6 Ω)
R39 7070001020 RESISTOR ERX3SJ 5R6 (5.6 Ω)
C1 4510006820 ELECTROLYTIC EC0S2GB 181DB
C2 4310001010 MYLAR 630MMW224K
C3 4010004730 CERAMIC DE0905 SL 221J 1KV
C4 4510006840 ELECTORL 35 MV 2200GX
C6 4510006800 ELECTROLYTIC 25 MV 470 GX
C7 4040000190 BARRIERLAYR UAT 05X 103K
C8 4510006790 ELECTROLYTIC 16 MV 2700 GX
C9 4510006790 ELECTROLYTIC 16 MV 2700 GX
C10 4510006780 ELECTROLYTIC 16 MV 470 GX
C11 4040000190 BARRIERLAYR UAT 05X 103K
C12 4310000360 MYLAR 50 F2D 103J
C13 4310000360 MYLAR 50 F2D 103J
C21 4310000440 MYLAR 50 F2D 473J
C22 4310000400 MYLAR 50 F2D 223J
C23 4310000350 MYLAR 50 F2D 822J
C24 4040000150 BARRIERLAYR UAT 05X 472K
C26 4510006900 ELECTROLYTIC ECA 2GHG 2R2
C27 4310000920 MYLAR 250 MMW 473K
C28 4510004490 ELECTROLYTIC 25 MV 22 HW
C30 4010008110 CERAMIC DE1307E472M-KH
C31 4010008110 CERAMIC DE1307E472M-KH
REF ORDER
DESCRIPTION
NO. NO.
[SUBREG BOARD]

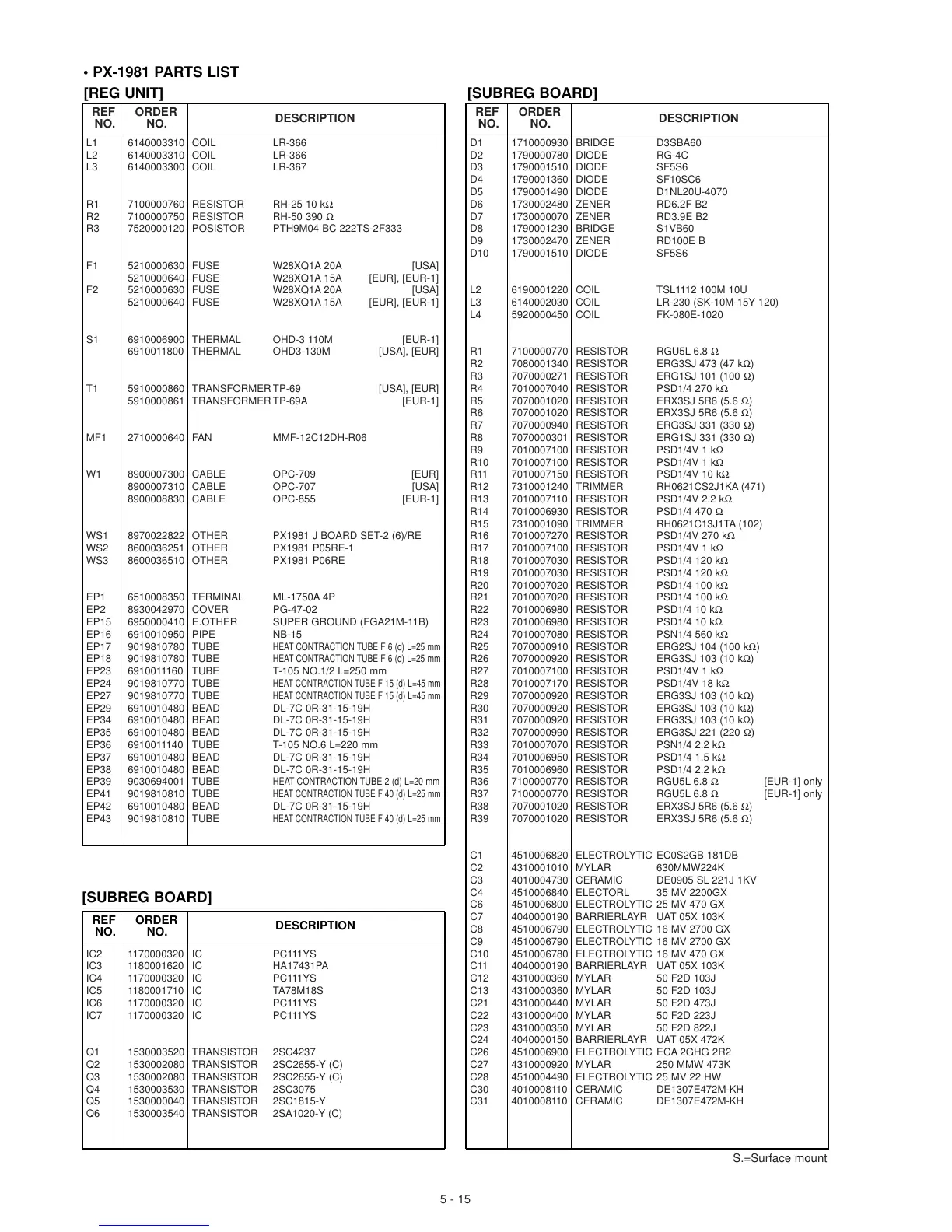

• PX-1981 PARTS LIST
REF ORDER
DESCRIPTION
NO. NO.
[SUBREG BOARD]
