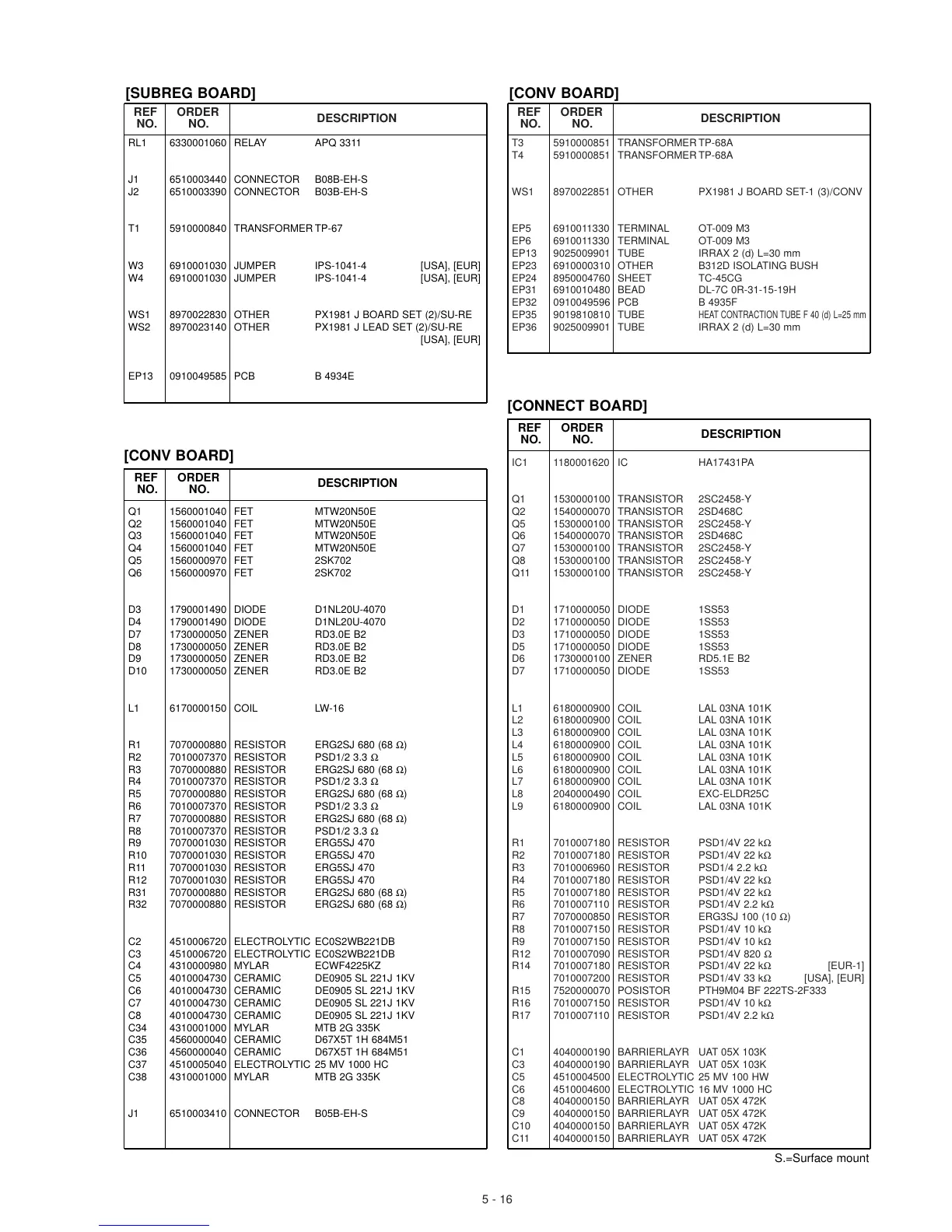

Icom IC-PW1 Service Manual Addendum

5 - 16
S.=Surface mount
RL1 6330001060 RELAY APQ 3311
J1 6510003440 CONNECTOR B08B-EH-S
J2 6510003390 CONNECTOR B03B-EH-S
T1 5910000840 TRANSFORMER TP-67
W3 6910001030 JUMPER IPS-1041-4 [USA], [EUR]
W4 6910001030 JUMPER IPS-1041-4 [USA], [EUR]
WS1 8970022830 OTHER PX1981 J BOARD SET (2)/SU-RE
WS2 8970023140 OTHER PX1981 J LEAD SET (2)/SU-RE
[USA], [EUR]
EP13 0910049585 PCB B 4934E
Q1 1560001040 FET MTW20N50E
Q2 1560001040 FET MTW20N50E
Q3 1560001040 FET MTW20N50E
Q4 1560001040 FET MTW20N50E
Q5 1560000970 FET 2SK702
Q6 1560000970 FET 2SK702
D3 1790001490 DIODE D1NL20U-4070
D4 1790001490 DIODE D1NL20U-4070
D7 1730000050 ZENER RD3.0E B2
D8 1730000050 ZENER RD3.0E B2
D9 1730000050 ZENER RD3.0E B2
D10 1730000050 ZENER RD3.0E B2
L1 6170000150 COIL LW-16
R1 7070000880 RESISTOR ERG2SJ 680 (68 Ω)
R2 7010007370 RESISTOR PSD1/2 3.3 Ω
R3 7070000880 RESISTOR ERG2SJ 680 (68 Ω)
R4 7010007370 RESISTOR PSD1/2 3.3 Ω
R5 7070000880 RESISTOR ERG2SJ 680 (68 Ω)
R6 7010007370 RESISTOR PSD1/2 3.3 Ω
R7 7070000880 RESISTOR ERG2SJ 680 (68 Ω)
R8 7010007370 RESISTOR PSD1/2 3.3 Ω
R9 7070001030 RESISTOR ERG5SJ 470
R10 7070001030 RESISTOR ERG5SJ 470
R11 7070001030 RESISTOR ERG5SJ 470
R12 7070001030 RESISTOR ERG5SJ 470
R31 7070000880 RESISTOR ERG2SJ 680 (68 Ω)
R32 7070000880 RESISTOR ERG2SJ 680 (68 Ω)
C2 4510006720 ELECTROLYTIC EC0S2WB221DB
C3 4510006720 ELECTROLYTIC EC0S2WB221DB
C4 4310000980 MYLAR ECWF4225KZ
C5 4010004730 CERAMIC DE0905 SL 221J 1KV
C6 4010004730 CERAMIC DE0905 SL 221J 1KV
C7 4010004730 CERAMIC DE0905 SL 221J 1KV
C8 4010004730 CERAMIC DE0905 SL 221J 1KV
C34 4310001000 MYLAR MTB 2G 335K
C35 4560000040 CERAMIC D67X5T 1H 684M51
C36 4560000040 CERAMIC D67X5T 1H 684M51
C37 4510005040 ELECTROLYTIC 25 MV 1000 HC
C38 4310001000 MYLAR MTB 2G 335K
J1 6510003410 CONNECTOR B05B-EH-S
REF ORDER
DESCRIPTION
NO. NO.
[SUBREG BOARD]
T3 5910000851 TRANSFORMER TP-68A
T4 5910000851 TRANSFORMER TP-68A
WS1 8970022851 OTHER PX1981 J BOARD SET-1 (3)/CONV
EP5 6910011330 TERMINAL OT-009 M3
EP6 6910011330 TERMINAL OT-009 M3
EP13 9025009901 TUBE IRRAX 2 (d) L=30 mm
EP23 6910000310 OTHER B312D ISOLATING BUSH
EP24 8950004760 SHEET TC-45CG
EP31 6910010480 BEAD DL-7C 0R-31-15-19H
EP32 0910049596 PCB B 4935F
EP35 9019810810 TUBE
HEAT CONTRACTION TUBE F 40 (d) L=25 mm
EP36 9025009901 TUBE IRRAX 2 (d) L=30 mm
IC1 1180001620 IC HA17431PA
Q1 1530000100 TRANSISTOR 2SC2458-Y
Q2 1540000070 TRANSISTOR 2SD468C
Q5 1530000100 TRANSISTOR 2SC2458-Y
Q6 1540000070 TRANSISTOR 2SD468C
Q7 1530000100 TRANSISTOR 2SC2458-Y
Q8 1530000100 TRANSISTOR 2SC2458-Y
Q11 1530000100 TRANSISTOR 2SC2458-Y
D1 1710000050 DIODE 1SS53
D2 1710000050 DIODE 1SS53
D3 1710000050 DIODE 1SS53
D5 1710000050 DIODE 1SS53
D6 1730000100 ZENER RD5.1E B2
D7 1710000050 DIODE 1SS53
L1 6180000900 COIL LAL 03NA 101K
L2 6180000900 COIL LAL 03NA 101K
L3 6180000900 COIL LAL 03NA 101K
L4 6180000900 COIL LAL 03NA 101K
L5 6180000900 COIL LAL 03NA 101K
L6 6180000900 COIL LAL 03NA 101K
L7 6180000900 COIL LAL 03NA 101K
L8 2040000490 COIL EXC-ELDR25C
L9 6180000900 COIL LAL 03NA 101K
R1 7010007180 RESISTOR PSD1/4V 22 kΩ
R2 7010007180 RESISTOR PSD1/4V 22 kΩ
R3 7010006960 RESISTOR PSD1/4 2.2 kΩ
R4 7010007180 RESISTOR PSD1/4V 22 kΩ
R5 7010007180 RESISTOR PSD1/4V 22 kΩ
R6 7010007110 RESISTOR PSD1/4V 2.2 kΩ
R7 7070000850 RESISTOR ERG3SJ 100 (10 Ω)
R8 7010007150 RESISTOR PSD1/4V 10 kΩ
R9 7010007150 RESISTOR PSD1/4V 10 kΩ
R12 7010007090 RESISTOR PSD1/4V 820 Ω
R14 7010007180 RESISTOR PSD1/4V 22 kΩ [EUR-1]
7010007200 RESISTOR PSD1/4V 33 kΩ [USA], [EUR]
R15 7520000070 POSISTOR PTH9M04 BF 222TS-2F333
R16 7010007150 RESISTOR PSD1/4V 10 kΩ
R17 7010007110 RESISTOR PSD1/4V 2.2 kΩ
C1 4040000190 BARRIERLAYR UAT 05X 103K
C3 4040000190 BARRIERLAYR UAT 05X 103K
C5 4510004500 ELECTROLYTIC 25 MV 100 HW
C6 4510004600 ELECTROLYTIC 16 MV 1000 HC
C8 4040000150 BARRIERLAYR UAT 05X 472K
C9 4040000150 BARRIERLAYR UAT 05X 472K
C10 4040000150 BARRIERLAYR UAT 05X 472K
C11 4040000150 BARRIERLAYR UAT 05X 472K
REF ORDER
DESCRIPTION
NO. NO.
[CONV BOARD]
REF ORDER
DESCRIPTION
NO. NO.
[CONV BOARD]
REF ORDER
DESCRIPTION
NO. NO.
[CONNECT BOARD]
