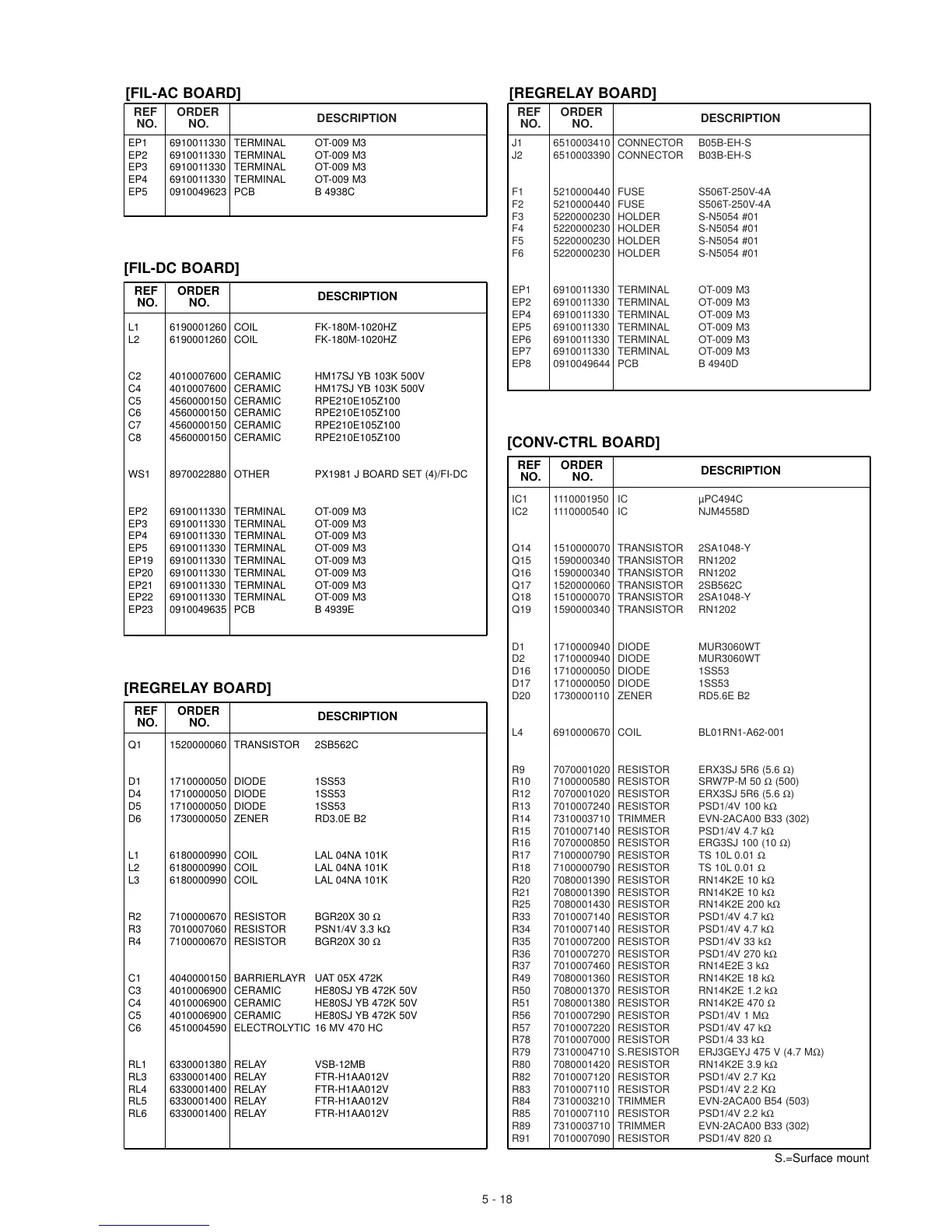

5 - 18
S.=Surface mount
EP1 6910011330 TERMINAL OT-009 M3
EP2 6910011330 TERMINAL OT-009 M3
EP3 6910011330 TERMINAL OT-009 M3
EP4 6910011330 TERMINAL OT-009 M3
EP5 0910049623 PCB B 4938C
L1 6190001260 COIL FK-180M-1020HZ
L2 6190001260 COIL FK-180M-1020HZ
C2 4010007600 CERAMIC HM17SJ YB 103K 500V
C4 4010007600 CERAMIC HM17SJ YB 103K 500V
C5 4560000150 CERAMIC RPE210E105Z100
C6 4560000150 CERAMIC RPE210E105Z100
C7 4560000150 CERAMIC RPE210E105Z100
C8 4560000150 CERAMIC RPE210E105Z100
WS1 8970022880 OTHER PX1981 J BOARD SET (4)/FI-DC
EP2 6910011330 TERMINAL OT-009 M3
EP3 6910011330 TERMINAL OT-009 M3
EP4 6910011330 TERMINAL OT-009 M3
EP5 6910011330 TERMINAL OT-009 M3
EP19 6910011330 TERMINAL OT-009 M3
EP20 6910011330 TERMINAL OT-009 M3
EP21 6910011330 TERMINAL OT-009 M3
EP22 6910011330 TERMINAL OT-009 M3
EP23 0910049635 PCB B 4939E
Q1 1520000060 TRANSISTOR 2SB562C
D1 1710000050 DIODE 1SS53
D4 1710000050 DIODE 1SS53
D5 1710000050 DIODE 1SS53
D6 1730000050 ZENER RD3.0E B2
L1 6180000990 COIL LAL 04NA 101K
L2 6180000990 COIL LAL 04NA 101K
L3 6180000990 COIL LAL 04NA 101K
R2 7100000670 RESISTOR BGR20X 30 Ω
R3 7010007060 RESISTOR PSN1/4V 3.3 kΩ
R4 7100000670 RESISTOR BGR20X 30 Ω
C1 4040000150 BARRIERLAYR UAT 05X 472K
C3 4010006900 CERAMIC HE80SJ YB 472K 50V
C4 4010006900 CERAMIC HE80SJ YB 472K 50V
C5 4010006900 CERAMIC HE80SJ YB 472K 50V
C6 4510004590 ELECTROLYTIC 16 MV 470 HC
RL1 6330001380 RELAY VSB-12MB
RL3 6330001400 RELAY FTR-H1AA012V
RL4 6330001400 RELAY FTR-H1AA012V
RL5 6330001400 RELAY FTR-H1AA012V
RL6 6330001400 RELAY FTR-H1AA012V
REF ORDER
DESCRIPTION
NO. NO.
[FIL-AC BOARD]
J1 6510003410 CONNECTOR B05B-EH-S
J2 6510003390 CONNECTOR B03B-EH-S
F1 5210000440 FUSE S506T-250V-4A
F2 5210000440 FUSE S506T-250V-4A
F3 5220000230 HOLDER S-N5054 #01
F4 5220000230 HOLDER S-N5054 #01
F5 5220000230 HOLDER S-N5054 #01
F6 5220000230 HOLDER S-N5054 #01
EP1 6910011330 TERMINAL OT-009 M3
EP2 6910011330 TERMINAL OT-009 M3
EP4 6910011330 TERMINAL OT-009 M3
EP5 6910011330 TERMINAL OT-009 M3
EP6 6910011330 TERMINAL OT-009 M3
EP7 6910011330 TERMINAL OT-009 M3
EP8 0910049644 PCB B 4940D
IC1 1110001950 IC µPC494C
IC2 1110000540 IC NJM4558D
Q14 1510000070 TRANSISTOR 2SA1048-Y
Q15 1590000340 TRANSISTOR RN1202
Q16 1590000340 TRANSISTOR RN1202
Q17 1520000060 TRANSISTOR 2SB562C
Q18 1510000070 TRANSISTOR 2SA1048-Y
Q19 1590000340 TRANSISTOR RN1202
D1 1710000940 DIODE MUR3060WT
D2 1710000940 DIODE MUR3060WT
D16 1710000050 DIODE 1SS53
D17 1710000050 DIODE 1SS53
D20 1730000110 ZENER RD5.6E B2
L4 6910000670 COIL BL01RN1-A62-001
R9 7070001020 RESISTOR ERX3SJ 5R6 (5.6 Ω)
R10 7100000580 RESISTOR SRW7P-M 50 Ω (500)
R12 7070001020 RESISTOR ERX3SJ 5R6 (5.6 Ω)
R13 7010007240 RESISTOR PSD1/4V 100 kΩ
R14 7310003710 TRIMMER EVN-2ACA00 B33 (302)
R15 7010007140 RESISTOR PSD1/4V 4.7 kΩ
R16 7070000850 RESISTOR ERG3SJ 100 (10 Ω)
R17 7100000790 RESISTOR TS 10L 0.01 Ω
R18 7100000790 RESISTOR TS 10L 0.01 Ω
R20 7080001390 RESISTOR RN14K2E 10 kΩ
R21 7080001390 RESISTOR RN14K2E 10 kΩ
R25 7080001430 RESISTOR RN14K2E 200 kΩ
R33 7010007140 RESISTOR PSD1/4V 4.7 kΩ
R34 7010007140 RESISTOR PSD1/4V 4.7 kΩ
R35 7010007200 RESISTOR PSD1/4V 33 kΩ
R36 7010007270 RESISTOR PSD1/4V 270 kΩ
R37 7010007460 RESISTOR RN14E2E 3 kΩ
R49 7080001360 RESISTOR RN14K2E 18 kΩ
R50 7080001370 RESISTOR RN14K2E 1.2 kΩ
R51 7080001380 RESISTOR RN14K2E 470 Ω
R56 7010007290 RESISTOR PSD1/4V 1 MΩ
R57 7010007220 RESISTOR PSD1/4V 47 kΩ
R78 7010007000 RESISTOR PSD1/4 33 kΩ
R79 7310004710 S.RESISTOR ERJ3GEYJ 475 V (4.7 MΩ)
R80 7080001420 RESISTOR RN14K2E 3.9 kΩ
R82 7010007120 RESISTOR PSD1/4V 2.7 KΩ
R83 7010007110 RESISTOR PSD1/4V 2.2 KΩ
R84 7310003210 TRIMMER EVN-2ACA00 B54 (503)
R85 7010007110 RESISTOR PSD1/4V 2.2 kΩ
R89 7310003710 TRIMMER EVN-2ACA00 B33 (302)
R91 7010007090 RESISTOR PSD1/4V 820 Ω
REF ORDER
DESCRIPTION
NO. NO.
[REGRELAY BOARD]
REF ORDER
DESCRIPTION
NO. NO.
[FIL-DC BOARD]
REF ORDER
DESCRIPTION
NO. NO.
[REGRELAY BOARD]
REF ORDER
DESCRIPTION
NO. NO.
[CONV-CTRL BOARD]
To Next Page
