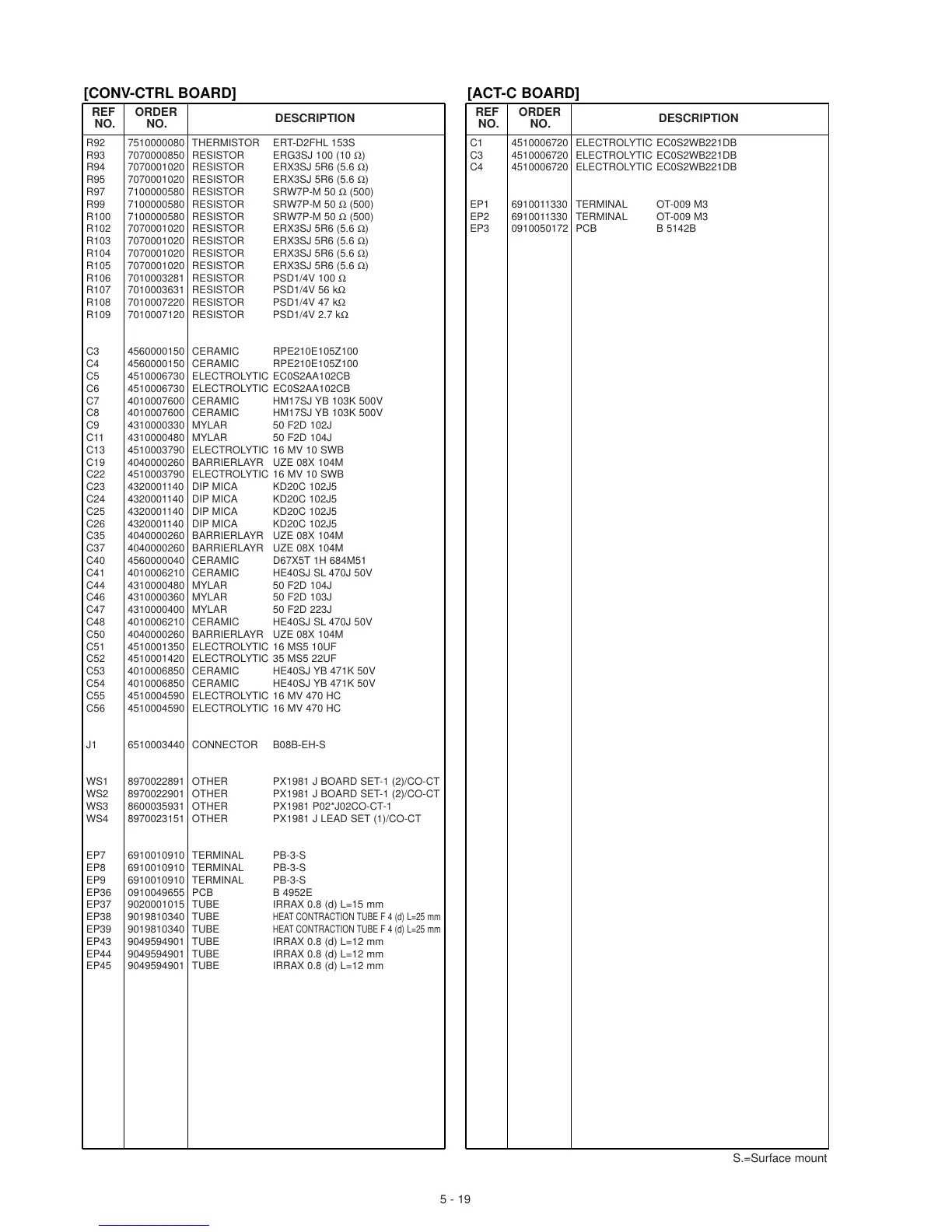

Icom IC-PW1 Service Manual Addendum

S.=Surface mount
R92 7510000080 THERMISTOR ERT-D2FHL 153S
R93 7070000850 RESISTOR ERG3SJ 100 (10 Ω)
R94 7070001020 RESISTOR ERX3SJ 5R6 (5.6 Ω)
R95 7070001020 RESISTOR ERX3SJ 5R6 (5.6 Ω)
R97 7100000580 RESISTOR SRW7P-M 50 Ω (500)
R99 7100000580 RESISTOR SRW7P-M 50 Ω (500)
R100 7100000580 RESISTOR SRW7P-M 50 Ω (500)
R102 7070001020 RESISTOR ERX3SJ 5R6 (5.6 Ω)
R103 7070001020 RESISTOR ERX3SJ 5R6 (5.6 Ω)
R104 7070001020 RESISTOR ERX3SJ 5R6 (5.6 Ω)
R105 7070001020 RESISTOR ERX3SJ 5R6 (5.6 Ω)
R106 7010003281 RESISTOR PSD1/4V 100 Ω
R107 7010003631 RESISTOR PSD1/4V 56 kΩ
R108 7010007220 RESISTOR PSD1/4V 47 kΩ
R109 7010007120 RESISTOR PSD1/4V 2.7 kΩ
C3 4560000150 CERAMIC RPE210E105Z100
C4 4560000150 CERAMIC RPE210E105Z100
C5 4510006730 ELECTROLYTIC EC0S2AA102CB
C6 4510006730 ELECTROLYTIC EC0S2AA102CB
C7 4010007600 CERAMIC HM17SJ YB 103K 500V
C8 4010007600 CERAMIC HM17SJ YB 103K 500V
C9 4310000330 MYLAR 50 F2D 102J
C11 4310000480 MYLAR 50 F2D 104J
C13 4510003790 ELECTROLYTIC 16 MV 10 SWB
C19 4040000260 BARRIERLAYR UZE 08X 104M
C22 4510003790 ELECTROLYTIC 16 MV 10 SWB
C23 4320001140 DIP MICA KD20C 102J5
C24 4320001140 DIP MICA KD20C 102J5
C25 4320001140 DIP MICA KD20C 102J5
C26 4320001140 DIP MICA KD20C 102J5
C35 4040000260 BARRIERLAYR UZE 08X 104M
C37 4040000260 BARRIERLAYR UZE 08X 104M
C40 4560000040 CERAMIC D67X5T 1H 684M51
C41 4010006210 CERAMIC HE40SJ SL 470J 50V
C44 4310000480 MYLAR 50 F2D 104J
C46 4310000360 MYLAR 50 F2D 103J
C47 4310000400 MYLAR 50 F2D 223J
C48 4010006210 CERAMIC HE40SJ SL 470J 50V
C50 4040000260 BARRIERLAYR UZE 08X 104M
C51 4510001350 ELECTROLYTIC 16 MS5 10UF
C52 4510001420 ELECTROLYTIC 35 MS5 22UF
C53 4010006850 CERAMIC HE40SJ YB 471K 50V
C54 4010006850 CERAMIC HE40SJ YB 471K 50V
C55 4510004590 ELECTROLYTIC 16 MV 470 HC
C56 4510004590 ELECTROLYTIC 16 MV 470 HC
J1 6510003440 CONNECTOR B08B-EH-S
WS1 8970022891 OTHER PX1981 J BOARD SET-1 (2)/CO-CT
WS2 8970022901 OTHER PX1981 J BOARD SET-1 (2)/CO-CT
WS3 8600035931 OTHER PX1981 P02*J02CO-CT-1
WS4 8970023151 OTHER PX1981 J LEAD SET (1)/CO-CT
EP7 6910010910 TERMINAL PB-3-S
EP8 6910010910 TERMINAL PB-3-S
EP9 6910010910 TERMINAL PB-3-S
EP36 0910049655 PCB B 4952E
EP37 9020001015 TUBE IRRAX 0.8 (d) L=15 mm
EP38 9019810340 TUBE
HEAT CONTRACTION TUBE F 4 (d) L=25 mm
EP39 9019810340 TUBE HEAT CONTRACTION TUBE F 4 (d) L=25 mm
EP43 9049594901 TUBE IRRAX 0.8 (d) L=12 mm
EP44 9049594901 TUBE IRRAX 0.8 (d) L=12 mm
EP45 9049594901 TUBE IRRAX 0.8 (d) L=12 mm
5 - 19
REF ORDER
DESCRIPTION
NO. NO.
[CONV-CTRL BOARD]
C1 4510006720 ELECTROLYTIC EC0S2WB221DB
C3 4510006720 ELECTROLYTIC EC0S2WB221DB
C4 4510006720 ELECTROLYTIC EC0S2WB221DB
EP1 6910011330 TERMINAL OT-009 M3
EP2 6910011330 TERMINAL OT-009 M3
EP3 0910050172 PCB B 5142B
REF ORDER
DESCRIPTION
NO. NO.
[ACT-C BOARD]
