Icom IC-PW1 Service Manual Addendum

Mar. 2011
1

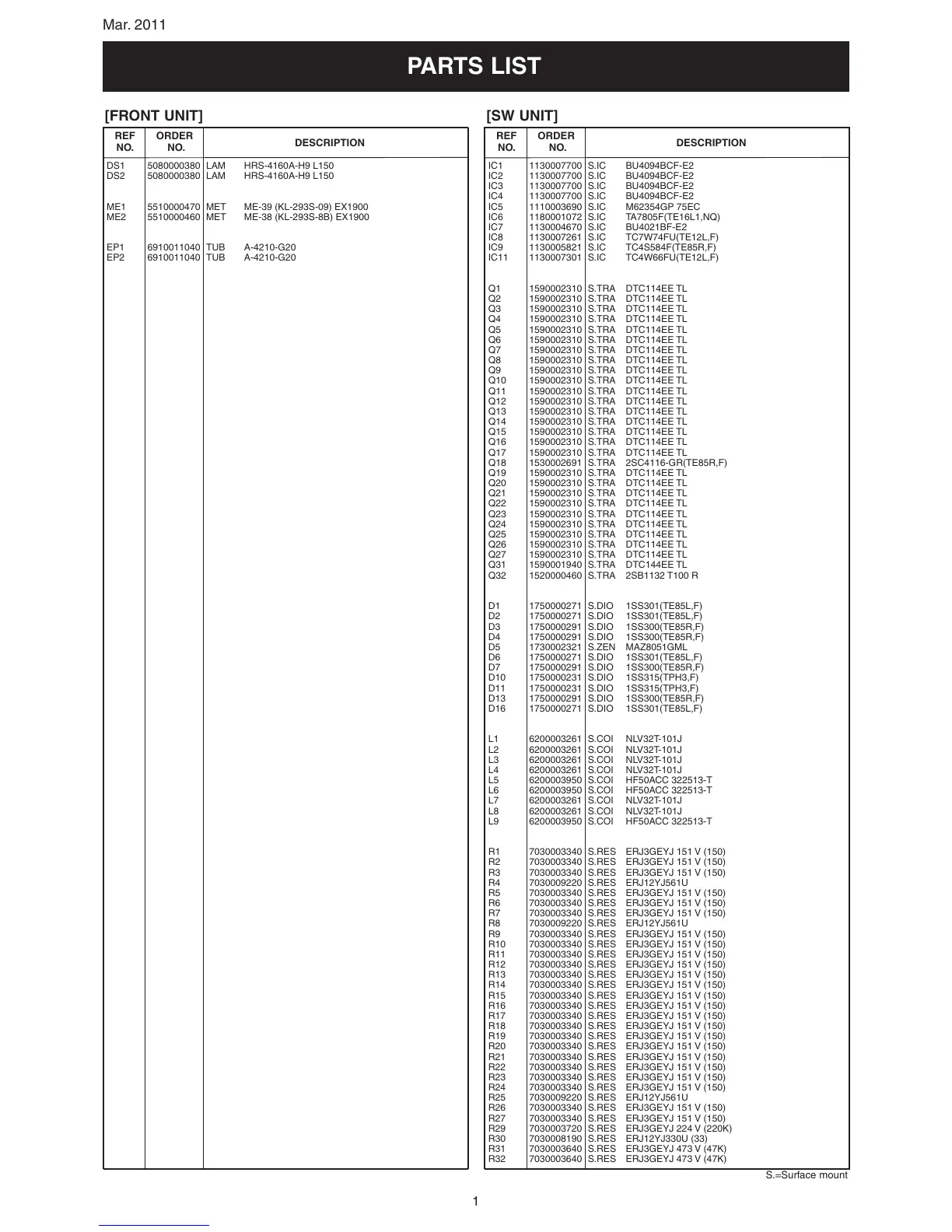

SECTION 5. PARTS LIST
[FRONT UNIT]
REF ORDER
DESCRIPTION
NO. NO.
DS1 5080000380 LAM HRS-4160A-H9 L150
DS2 5080000380 LAM HRS-4160A-H9 L150
ME1 5510000470 MET ME-39 (KL-293S-09) EX1900
ME2 5510000460 MET ME-38 (KL-293S-8B) EX1900
EP1 6910011040 TUB A-4210-G20
EP2 6910011040 TUB A-4210-G20
S.=Surface mount
[SW UNIT]
REF ORDER
DESCRIPTION
NO. NO.
IC1 1130007700 S.IC BU4094BCF-E2
IC2 1130007700 S.IC BU4094BCF-E2
IC3 1130007700 S.IC BU4094BCF-E2
IC4 1130007700 S.IC BU4094BCF-E2
IC5 1110003690 S.IC M62354GP 75EC
IC6 1180001072 S.IC TA7805F(TE16L1,NQ)
IC7 1130004670 S.IC BU4021BF-E2
IC8 1130007261 S.IC TC7W74FU(TE12L,F)
IC9 1130005821 S.IC TC4S584F(TE85R,F)
IC11 1130007301 S.IC TC4W66FU(TE12L,F)
Q1 1590002310 S.TRA DTC114EE TL
Q2 1590002310 S.TRA DTC114EE TL
Q3 1590002310 S.TRA DTC114EE TL
Q4 1590002310 S.TRA DTC114EE TL
Q5 1590002310 S.TRA DTC114EE TL
Q6 1590002310 S.TRA DTC114EE TL
Q7 1590002310 S.TRA DTC114EE TL
Q8 1590002310 S.TRA DTC114EE TL
Q9 1590002310 S.TRA DTC114EE TL
Q10 1590002310 S.TRA DTC114EE TL
Q11 1590002310 S.TRA DTC114EE TL
Q12 1590002310 S.TRA DTC114EE TL
Q13 1590002310 S.TRA DTC114EE TL
Q14 1590002310 S.TRA DTC114EE TL
Q15 1590002310 S.TRA DTC114EE TL
Q16 1590002310 S.TRA DTC114EE TL
Q17 1590002310 S.TRA DTC114EE TL
Q18 1530002691 S.TRA 2SC4116-GR(TE85R,F)
Q19 1590002310 S.TRA DTC114EE TL
Q20 1590002310 S.TRA DTC114EE TL
Q21 1590002310 S.TRA DTC114EE TL
Q22 1590002310 S.TRA DTC114EE TL
Q23 1590002310 S.TRA DTC114EE TL
Q24 1590002310 S.TRA DTC114EE TL
Q25 1590002310 S.TRA DTC114EE TL
Q26 1590002310 S.TRA DTC114EE TL
Q27 1590002310 S.TRA DTC114EE TL
Q31 1590001940 S.TRA DTC144EE TL
Q32 1520000460 S.TRA 2SB1132 T100 R
D1 1750000271 S.DIO 1SS301(TE85L,F)
D2 1750000271 S.DIO 1SS301(TE85L,F)
D3 1750000291 S.DIO 1SS300(TE85R,F)
D4 1750000291 S.DIO 1SS300(TE85R,F)
D5 1730002321 S.ZEN MAZ8051GML
D6 1750000271 S.DIO 1SS301(TE85L,F)
D7 1750000291 S.DIO 1SS300(TE85R,F)
D10 1750000231 S.DIO 1SS315(TPH3,F)
D11 1750000231 S.DIO 1SS315(TPH3,F)
D13 1750000291 S.DIO 1SS300(TE85R,F)
D16 1750000271 S.DIO 1SS301(TE85L,F)
L1 6200003261 S.COI NLV32T-101J
L2 6200003261 S.COI NLV32T-101J
L3 6200003261 S.COI NLV32T-101J
L4 6200003261 S.COI NLV32T-101J
L5 6200003950 S.COI HF50ACC 322513-T
L6 6200003950 S.COI HF50ACC 322513-T
L7 6200003261 S.COI NLV32T-101J
L8 6200003261 S.COI NLV32T-101J
L9 6200003950 S.COI HF50ACC 322513-T
R1 7030003340 S.RES ERJ3GEYJ 151 V (150)
R2 7030003340 S.RES ERJ3GEYJ 151 V (150)
R3 7030003340 S.RES ERJ3GEYJ 151 V (150)
R4 7030009220 S.RES ERJ12YJ561U
R5 7030003340 S.RES ERJ3GEYJ 151 V (150)
R6 7030003340 S.RES ERJ3GEYJ 151 V (150)
R7 7030003340 S.RES ERJ3GEYJ 151 V (150)
R8 7030009220 S.RES ERJ12YJ561U
R9 7030003340 S.RES ERJ3GEYJ 151 V (150)
R10 7030003340 S.RES ERJ3GEYJ 151 V (150)
R11 7030003340 S.RES ERJ3GEYJ 151 V (150)
R12 7030003340 S.RES ERJ3GEYJ 151 V (150)
R13 7030003340 S.RES ERJ3GEYJ 151 V (150)
R14 7030003340 S.RES ERJ3GEYJ 151 V (150)
R15 7030003340 S.RES ERJ3GEYJ 151 V (150)
R16 7030003340 S.RES ERJ3GEYJ 151 V (150)
R17 7030003340 S.RES ERJ3GEYJ 151 V (150)
R18 7030003340 S.RES ERJ3GEYJ 151 V (150)
R19 7030003340 S.RES ERJ3GEYJ 151 V (150)
R20 7030003340 S.RES ERJ3GEYJ 151 V (150)
R21 7030003340 S.RES ERJ3GEYJ 151 V (150)
R22 7030003340 S.RES ERJ3GEYJ 151 V (150)
R23 7030003340 S.RES ERJ3GEYJ 151 V (150)
R24 7030003340 S.RES ERJ3GEYJ 151 V (150)
R25 7030009220 S.RES ERJ12YJ561U
R26 7030003340 S.RES ERJ3GEYJ 151 V (150)
R27 7030003340 S.RES ERJ3GEYJ 151 V (150)
R29 7030003720 S.RES ERJ3GEYJ 224 V (220K)
R30 7030008190 S.RES ERJ12YJ330U (33)
R31 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R32 7030003640 S.RES ERJ3GEYJ 473 V (47K)
