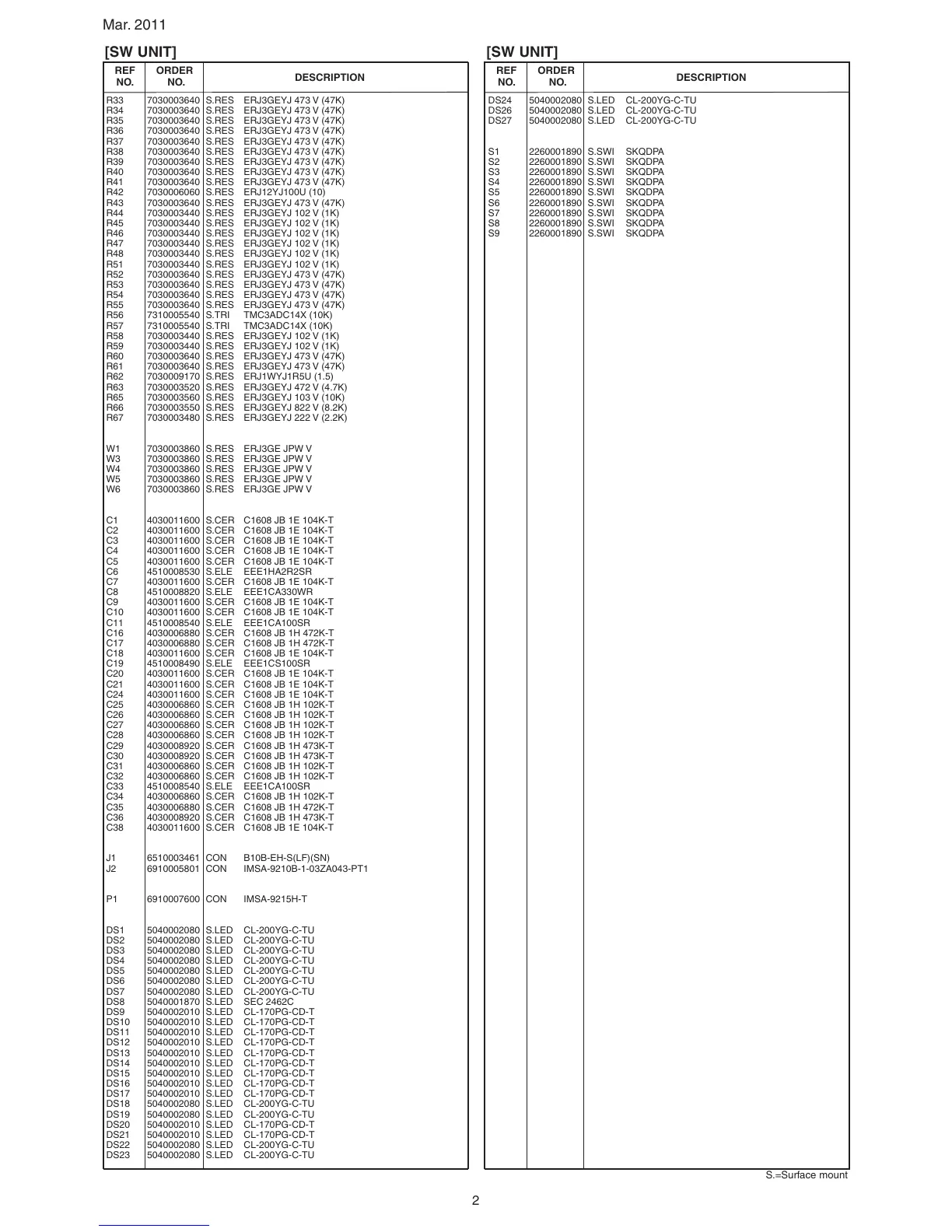

Icom IC-PW1 Service Manual Addendum

Mar. 2011
2
[SW UNIT]
REF ORDER
DESCRIPTION
NO. NO.
R33 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R34 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R35 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R36 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R37 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R38 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R39 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R40 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R41 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R42 7030006060 S.RES ERJ12YJ100U (10)
R43 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R44 7030003440 S.RES ERJ3GEYJ 102 V (1K)
R45 7030003440 S.RES ERJ3GEYJ 102 V (1K)
R46 7030003440 S.RES ERJ3GEYJ 102 V (1K)
R47 7030003440 S.RES ERJ3GEYJ 102 V (1K)
R48 7030003440 S.RES ERJ3GEYJ 102 V (1K)
R51 7030003440 S.RES ERJ3GEYJ 102 V (1K)
R52 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R53 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R54 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R55 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R56 7310005540 S.TRI TMC3ADC14X (10K)
R57 7310005540 S.TRI TMC3ADC14X (10K)
R58 7030003440 S.RES ERJ3GEYJ 102 V (1K)
R59 7030003440 S.RES ERJ3GEYJ 102 V (1K)
R60 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R61 7030003640 S.RES ERJ3GEYJ 473 V (47K)
R62 7030009170 S.RES ERJ1WYJ1R5U (1.5)
R63 7030003520 S.RES ERJ3GEYJ 472 V (4.7K)
R65 7030003560 S.RES ERJ3GEYJ 103 V (10K)
R66 7030003550 S.RES ERJ3GEYJ 822 V (8.2K)
R67 7030003480 S.RES ERJ3GEYJ 222 V (2.2K)
W1 7030003860 S.RES ERJ3GE JPW V
W3 7030003860 S.RES ERJ3GE JPW V
W4 7030003860 S.RES ERJ3GE JPW V
W5 7030003860 S.RES ERJ3GE JPW V
W6 7030003860 S.RES ERJ3GE JPW V
C1 4030011600 S.CER C1608 JB 1E 104K-T
C2 4030011600 S.CER C1608 JB 1E 104K-T
C3 4030011600 S.CER C1608 JB 1E 104K-T
C4 4030011600 S.CER C1608 JB 1E 104K-T
C5 4030011600 S.CER C1608 JB 1E 104K-T
C6 4510008530 S.ELE EEE1HA2R2SR
C7 4030011600 S.CER C1608 JB 1E 104K-T
C8 4510008820 S.ELE EEE1CA330WR
C9 4030011600 S.CER C1608 JB 1E 104K-T
C10 4030011600 S.CER C1608 JB 1E 104K-T
C11 4510008540 S.ELE EEE1CA100SR
C16 4030006880 S.CER C1608 JB 1H 472K-T
C17 4030006880 S.CER C1608 JB 1H 472K-T
C18 4030011600 S.CER C1608 JB 1E 104K-T
C19 4510008490 S.ELE EEE1CS100SR
C20 4030011600 S.CER C1608 JB 1E 104K-T
C21 4030011600 S.CER C1608 JB 1E 104K-T
C24 4030011600 S.CER C1608 JB 1E 104K-T
C25 4030006860 S.CER C1608 JB 1H 102K-T
C26 4030006860 S.CER C1608 JB 1H 102K-T
C27 4030006860 S.CER C1608 JB 1H 102K-T
C28 4030006860 S.CER C1608 JB 1H 102K-T
C29 4030008920 S.CER C1608 JB 1H 473K-T
C30 4030008920 S.CER C1608 JB 1H 473K-T
C31 4030006860 S.CER C1608 JB 1H 102K-T
C32 4030006860 S.CER C1608 JB 1H 102K-T
C33 4510008540 S.ELE EEE1CA100SR
C34 4030006860 S.CER C1608 JB 1H 102K-T
C35 4030006880 S.CER C1608 JB 1H 472K-T
C36 4030008920 S.CER C1608 JB 1H 473K-T
C38 4030011600 S.CER C1608 JB 1E 104K-T
J1 6510003461 CON B10B-EH-S(LF)(SN)
J2 6910005801 CON IMSA-9210B-1-03ZA043-PT1
P1 6910007600 CON IMSA-9215H-T
DS1 5040002080 S.LED CL-200YG-C-TU
DS2 5040002080 S.LED CL-200YG-C-TU
DS3 5040002080 S.LED CL-200YG-C-TU
DS4 5040002080 S.LED CL-200YG-C-TU
DS5 5040002080 S.LED CL-200YG-C-TU
DS6 5040002080 S.LED CL-200YG-C-TU
DS7 5040002080 S.LED CL-200YG-C-TU
DS8 5040001870 S.LED SEC 2462C
DS9 5040002010 S.LED CL-170PG-CD-T
DS10 5040002010 S.LED CL-170PG-CD-T
DS11 5040002010 S.LED CL-170PG-CD-T
DS12 5040002010 S.LED CL-170PG-CD-T
DS13 5040002010 S.LED CL-170PG-CD-T
DS14 5040002010 S.LED CL-170PG-CD-T
DS15 5040002010 S.LED CL-170PG-CD-T
DS16 5040002010 S.LED CL-170PG-CD-T
DS17 5040002010 S.LED CL-170PG-CD-T
DS18 5040002080 S.LED CL-200YG-C-TU
DS19 5040002080 S.LED CL-200YG-C-TU
DS20 5040002010 S.LED CL-170PG-CD-T
DS21 5040002010 S.LED CL-170PG-CD-T
DS22 5040002080 S.LED CL-200YG-C-TU
DS23 5040002080 S.LED CL-200YG-C-TU
S.=Surface mount
[SW UNIT]
REF ORDER
DESCRIPTION
NO. NO.
DS24 5040002080 S.LED CL-200YG-C-TU
DS26 5040002080 S.LED CL-200YG-C-TU
DS27 5040002080 S.LED CL-200YG-C-TU
S1 2260001890 S.SWI SKQDPA
S2 2260001890 S.SWI SKQDPA
S3 2260001890 S.SWI SKQDPA
S4 2260001890 S.SWI SKQDPA
S5 2260001890 S.SWI SKQDPA
S6 2260001890 S.SWI SKQDPA
S7 2260001890 S.SWI SKQDPA
S8 2260001890 S.SWI SKQDPA
S9 2260001890 S.SWI SKQDPA
