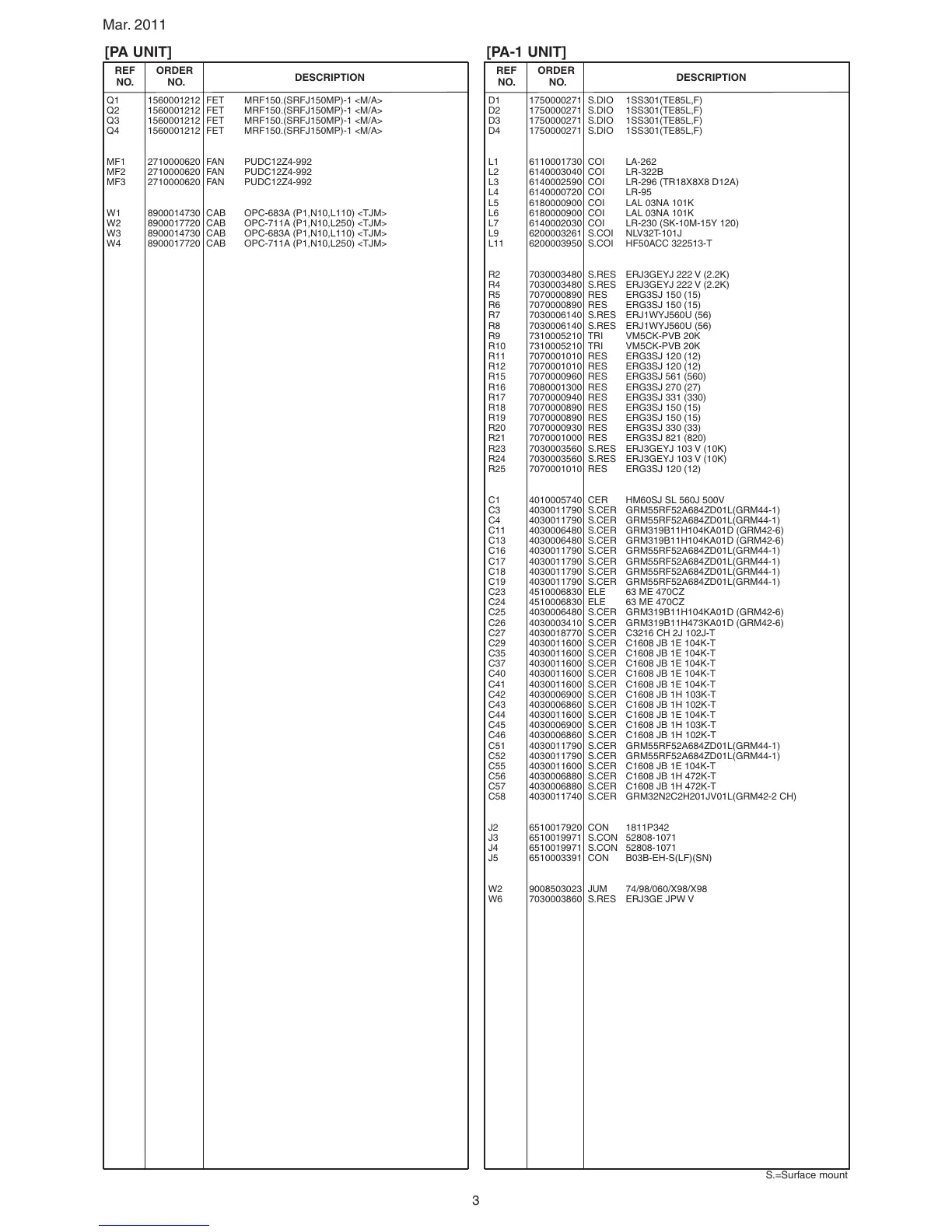

Icom IC-PW1 Service Manual Addendum

Mar. 2011
3
[PA UNIT]
REF ORDER
DESCRIPTION
NO. NO.
Q1 1560001212 FET MRF150.(SRFJ150MP)-1 <M/A>
Q2 1560001212 FET MRF150.(SRFJ150MP)-1 <M/A>
Q3 1560001212 FET MRF150.(SRFJ150MP)-1 <M/A>
Q4 1560001212 FET MRF150.(SRFJ150MP)-1 <M/A>
MF1 2710000620 FAN PUDC12Z4-992
MF2 2710000620 FAN PUDC12Z4-992
MF3 2710000620 FAN PUDC12Z4-992
W1 8900014730 CAB OPC-683A (P1,N10,L110) <TJM>
W2 8900017720 CAB OPC-711A (P1,N10,L250) <TJM>
W3 8900014730 CAB OPC-683A (P1,N10,L110) <TJM>
W4 8900017720 CAB OPC-711A (P1,N10,L250) <TJM>
S.=Surface mount
[PA-1 UNIT]
REF ORDER
DESCRIPTION
NO. NO.
D1 1750000271 S.DIO 1SS301(TE85L,F)
D2 1750000271 S.DIO 1SS301(TE85L,F)
D3 1750000271 S.DIO 1SS301(TE85L,F)
D4 1750000271 S.DIO 1SS301(TE85L,F)
L1 6110001730 COI LA-262
L2 6140003040 COI LR-322B
L3 6140002590 COI LR-296 (TR18X8X8 D12A)
L4 6140000720 COI LR-95
L5 6180000900 COI LAL 03NA 101K
L6 6180000900 COI LAL 03NA 101K
L7 6140002030 COI LR-230 (SK-10M-15Y 120)
L9 6200003261 S.COI NLV32T-101J
L11 6200003950 S.COI HF50ACC 322513-T
R2 7030003480 S.RES ERJ3GEYJ 222 V (2.2K)
R4 7030003480 S.RES ERJ3GEYJ 222 V (2.2K)
R5 7070000890 RES ERG3SJ 150 (15)
R6 7070000890 RES ERG3SJ 150 (15)
R7 7030006140 S.RES ERJ1WYJ560U (56)
R8 7030006140 S.RES ERJ1WYJ560U (56)
R9 7310005210 TRI VM5CK-PVB 20K
R10 7310005210 TRI VM5CK-PVB 20K
R11 7070001010 RES ERG3SJ 120 (12)
R12 7070001010 RES ERG3SJ 120 (12)
R15 7070000960 RES ERG3SJ 561 (560)
R16 7080001300 RES ERG3SJ 270 (27)
R17 7070000940 RES ERG3SJ 331 (330)
R18 7070000890 RES ERG3SJ 150 (15)
R19 7070000890 RES ERG3SJ 150 (15)
R20 7070000930 RES ERG3SJ 330 (33)
R21 7070001000 RES ERG3SJ 821 (820)
R23 7030003560 S.RES ERJ3GEYJ 103 V (10K)
R24 7030003560 S.RES ERJ3GEYJ 103 V (10K)
R25 7070001010 RES ERG3SJ 120 (12)
C1 4010005740 CER HM60SJ SL 560J 500V
C3 4030011790 S.CER GRM55RF52A684ZD01L(GRM44-1)
C4 4030011790 S.CER GRM55RF52A684ZD01L(GRM44-1)
C11 4030006480 S.CER GRM319B11H104KA01D (GRM42-6)
C13 4030006480 S.CER GRM319B11H104KA01D (GRM42-6)
C16 4030011790 S.CER GRM55RF52A684ZD01L(GRM44-1)
C17 4030011790 S.CER GRM55RF52A684ZD01L(GRM44-1)
C18 4030011790 S.CER GRM55RF52A684ZD01L(GRM44-1)
C19 4030011790 S.CER GRM55RF52A684ZD01L(GRM44-1)
C23 4510006830 ELE 63 ME 470CZ
C24 4510006830 ELE 63 ME 470CZ
C25 4030006480 S.CER GRM319B11H104KA01D (GRM42-6)
C26 4030003410 S.CER GRM319B11H473KA01D (GRM42-6)
C27 4030018770 S.CER C3216 CH 2J 102J-T
C29 4030011600 S.CER C1608 JB 1E 104K-T
C35 4030011600 S.CER C1608 JB 1E 104K-T
C37 4030011600 S.CER C1608 JB 1E 104K-T
C40 4030011600 S.CER C1608 JB 1E 104K-T
C41 4030011600 S.CER C1608 JB 1E 104K-T
C42 4030006900 S.CER C1608 JB 1H 103K-T
C43 4030006860 S.CER C1608 JB 1H 102K-T
C44 4030011600 S.CER C1608 JB 1E 104K-T
C45 4030006900 S.CER C1608 JB 1H 103K-T
C46 4030006860 S.CER C1608 JB 1H 102K-T
C51 4030011790 S.CER GRM55RF52A684ZD01L(GRM44-1)
C52 4030011790 S.CER GRM55RF52A684ZD01L(GRM44-1)
C55 4030011600 S.CER C1608 JB 1E 104K-T
C56 4030006880 S.CER C1608 JB 1H 472K-T
C57 4030006880 S.CER C1608 JB 1H 472K-T
C58 4030011740 S.CER GRM32N2C2H201JV01L(GRM42-2 CH)
J2 6510017920 CON 1811P342
J3 6510019971 S.CON 52808-1071
J4 6510019971 S.CON 52808-1071
J5 6510003391 CON B03B-EH-S(LF)(SN)
W2 9008503023 JUM 74/98/060/X98/X98
W6 7030003860 S.RES ERJ3GE JPW V
