Icom IC-PW1 Service Manual Addendum

Mar. 2011
7

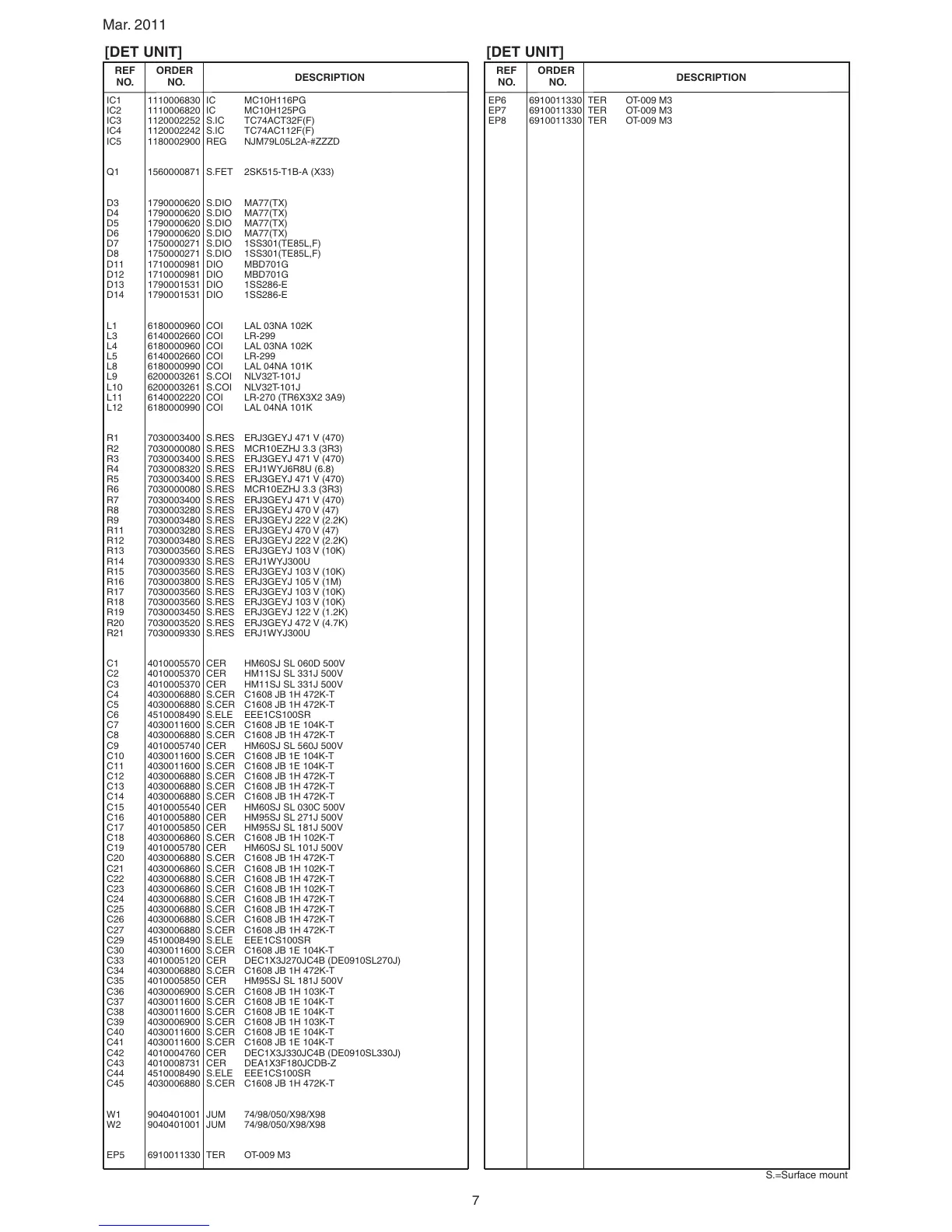

[DET UNIT]
REF ORDER
DESCRIPTION
NO. NO.
IC1 1110006830 IC MC10H116PG
IC2 1110006820 IC MC10H125PG
IC3 1120002252 S.IC TC74ACT32F(F)
IC4 1120002242 S.IC TC74AC112F(F)
IC5 1180002900 REG NJM79L05L2A-#ZZZD
Q1 1560000871 S.FET 2SK515-T1B-A (X33)
D3 1790000620 S.DIO MA77(TX)
D4 1790000620 S.DIO MA77(TX)
D5 1790000620 S.DIO MA77(TX)
D6 1790000620 S.DIO MA77(TX)
D7 1750000271 S.DIO 1SS301(TE85L,F)
D8 1750000271 S.DIO 1SS301(TE85L,F)
D11 1710000981 DIO MBD701G
D12 1710000981 DIO MBD701G
D13 1790001531 DIO 1SS286-E
D14 1790001531 DIO 1SS286-E
L1 6180000960 COI LAL 03NA 102K
L3 6140002660 COI LR-299
L4 6180000960 COI LAL 03NA 102K
L5 6140002660 COI LR-299
L8 6180000990 COI LAL 04NA 101K
L9 6200003261 S.COI NLV32T-101J
L10 6200003261 S.COI NLV32T-101J
L11 6140002220 COI LR-270 (TR6X3X2 3A9)
L12 6180000990 COI LAL 04NA 101K
R1 7030003400 S.RES ERJ3GEYJ 471 V (470)
R2 7030000080 S.RES MCR10EZHJ 3.3 (3R3)
R3 7030003400 S.RES ERJ3GEYJ 471 V (470)
R4 7030008320 S.RES ERJ1WYJ6R8U (6.8)
R5 7030003400 S.RES ERJ3GEYJ 471 V (470)
R6 7030000080 S.RES MCR10EZHJ 3.3 (3R3)
R7 7030003400 S.RES ERJ3GEYJ 471 V (470)
R8 7030003280 S.RES ERJ3GEYJ 470 V (47)
R9 7030003480 S.RES ERJ3GEYJ 222 V (2.2K)
R11 7030003280 S.RES ERJ3GEYJ 470 V (47)
R12 7030003480 S.RES ERJ3GEYJ 222 V (2.2K)
R13 7030003560 S.RES ERJ3GEYJ 103 V (10K)
R14 7030009330 S.RES ERJ1WYJ300U
R15 7030003560 S.RES ERJ3GEYJ 103 V (10K)
R16 7030003800 S.RES ERJ3GEYJ 105 V (1M)
R17 7030003560 S.RES ERJ3GEYJ 103 V (10K)
R18 7030003560 S.RES ERJ3GEYJ 103 V (10K)
R19 7030003450 S.RES ERJ3GEYJ 122 V (1.2K)
R20 7030003520 S.RES ERJ3GEYJ 472 V (4.7K)
R21 7030009330 S.RES ERJ1WYJ300U
C1 4010005570 CER HM60SJ SL 060D 500V
C2 4010005370 CER HM11SJ SL 331J 500V
C3 4010005370 CER HM11SJ SL 331J 500V
C4 4030006880 S.CER C1608 JB 1H 472K-T
C5 4030006880 S.CER C1608 JB 1H 472K-T
C6 4510008490 S.ELE EEE1CS100SR
C7 4030011600 S.CER C1608 JB 1E 104K-T
C8 4030006880 S.CER C1608 JB 1H 472K-T
C9 4010005740 CER HM60SJ SL 560J 500V
C10 4030011600 S.CER C1608 JB 1E 104K-T
C11 4030011600 S.CER C1608 JB 1E 104K-T
C12 4030006880 S.CER C1608 JB 1H 472K-T
C13 4030006880 S.CER C1608 JB 1H 472K-T
C14 4030006880 S.CER C1608 JB 1H 472K-T
C15 4010005540 CER HM60SJ SL 030C 500V
C16 4010005880 CER HM95SJ SL 271J 500V
C17 4010005850 CER HM95SJ SL 181J 500V
C18 4030006860 S.CER C1608 JB 1H 102K-T
C19 4010005780 CER HM60SJ SL 101J 500V
C20 4030006880 S.CER C1608 JB 1H 472K-T
C21 4030006860 S.CER C1608 JB 1H 102K-T
C22 4030006880 S.CER C1608 JB 1H 472K-T
C23 4030006860 S.CER C1608 JB 1H 102K-T
C24 4030006880 S.CER C1608 JB 1H 472K-T
C25 4030006880 S.CER C1608 JB 1H 472K-T
C26 4030006880 S.CER C1608 JB 1H 472K-T
C27 4030006880 S.CER C1608 JB 1H 472K-T
C29 4510008490 S.ELE EEE1CS100SR
C30 4030011600 S.CER C1608 JB 1E 104K-T
C33 4010005120 CER DEC1X3J270JC4B (DE0910SL270J)
C34 4030006880 S.CER C1608 JB 1H 472K-T
C35 4010005850 CER HM95SJ SL 181J 500V
C36 4030006900 S.CER C1608 JB 1H 103K-T
C37 4030011600 S.CER C1608 JB 1E 104K-T
C38 4030011600 S.CER C1608 JB 1E 104K-T
C39 4030006900 S.CER C1608 JB 1H 103K-T
C40 4030011600 S.CER C1608 JB 1E 104K-T
C41 4030011600 S.CER C1608 JB 1E 104K-T
C42 4010004760 CER DEC1X3J330JC4B (DE0910SL330J)
C43 4010008731 CER DEA1X3F180JCDB-Z
C44 4510008490 S.ELE EEE1CS100SR
C45 4030006880 S.CER C1608 JB 1H 472K-T
W1 9040401001 JUM 74/98/050/X98/X98
W2 9040401001 JUM 74/98/050/X98/X98
EP5 6910011330 TER OT-009 M3
S.=Surface mount
[DET UNIT]
REF ORDER
DESCRIPTION
NO. NO.
EP6 6910011330 TER OT-009 M3
EP7 6910011330 TER OT-009 M3
EP8 6910011330 TER OT-009 M3
