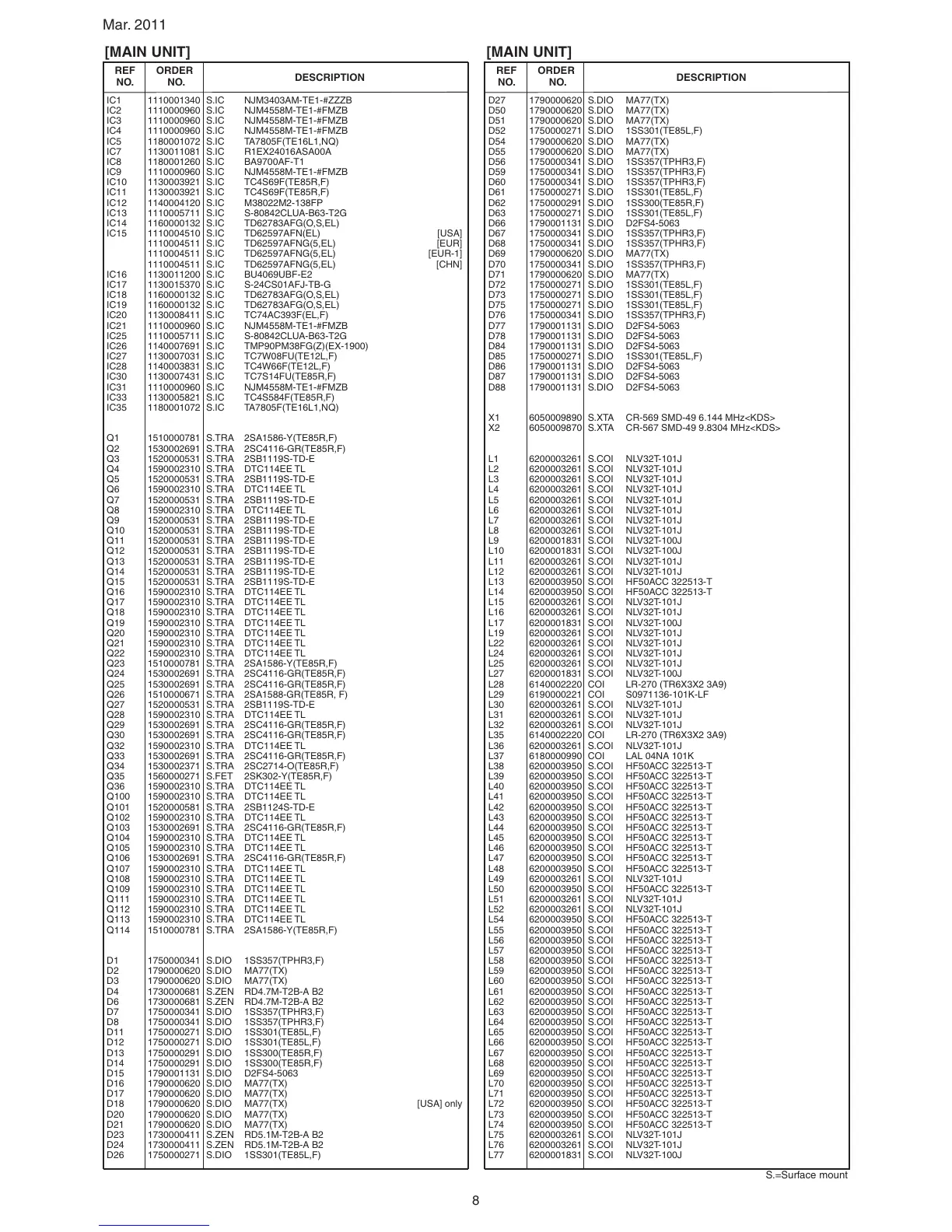

Icom IC-PW1 Service Manual Addendum

Mar. 2011
8
[MAIN UNIT]
REF ORDER
DESCRIPTION
NO. NO.
IC1 1110001340 S.IC NJM3403AM-TE1-#ZZZB
IC2 1110000960 S.IC NJM4558M-TE1-#FMZB
IC3 1110000960 S.IC NJM4558M-TE1-#FMZB
IC4 1110000960 S.IC NJM4558M-TE1-#FMZB
IC5 1180001072 S.IC TA7805F(TE16L1,NQ)
IC7 1130011081 S.IC R1EX24016ASA00A
IC8 1180001260 S.IC BA9700AF-T1
IC9 1110000960 S.IC NJM4558M-TE1-#FMZB
IC10 1130003921 S.IC TC4S69F(TE85R,F)
IC11 1130003921 S.IC TC4S69F(TE85R,F)
IC12 1140004120 S.IC M38022M2-138FP
IC13 1110005711 S.IC S-80842CLUA-B63-T2G
IC14 1160000132 S.IC TD62783AFG(O,S,EL)
IC15 1110004510 S.IC TD62597AFN(EL) [USA]
1110004511 S.IC TD62597AFNG(5,EL) [EUR]
1110004511 S.IC TD62597AFNG(5,EL) [EUR-1]
1110004511 S.IC TD62597AFNG(5,EL) [CHN]
IC16 1130011200 S.IC BU4069UBF-E2
IC17 1130015370 S.IC S-24CS01AFJ-TB-G
IC18 1160000132 S.IC TD62783AFG(O,S,EL)
IC19 1160000132 S.IC TD62783AFG(O,S,EL)
IC20 1130008411 S.IC TC74AC393F(EL,F)
IC21 1110000960 S.IC NJM4558M-TE1-#FMZB
IC25 1110005711 S.IC S-80842CLUA-B63-T2G
IC26 1140007691 S.IC TMP90PM38FG(Z)(EX-1900)
IC27 1130007031 S.IC TC7W08FU(TE12L,F)
IC28 1140003831 S.IC TC4W66F(TE12L,F)
IC30 1130007431 S.IC TC7S14FU(TE85R,F)
IC31 1110000960 S.IC NJM4558M-TE1-#FMZB
IC33 1130005821 S.IC TC4S584F(TE85R,F)
IC35 1180001072 S.IC TA7805F(TE16L1,NQ)
Q1 1510000781 S.TRA 2SA1586-Y(TE85R,F)
Q2 1530002691 S.TRA 2SC4116-GR(TE85R,F)
Q3 1520000531 S.TRA 2SB1119S-TD-E
Q4 1590002310 S.TRA DTC114EE TL
Q5 1520000531 S.TRA 2SB1119S-TD-E
Q6 1590002310 S.TRA DTC114EE TL
Q7 1520000531 S.TRA 2SB1119S-TD-E
Q8 1590002310 S.TRA DTC114EE TL
Q9 1520000531 S.TRA 2SB1119S-TD-E
Q10 1520000531 S.TRA 2SB1119S-TD-E
Q11 1520000531 S.TRA 2SB1119S-TD-E
Q12 1520000531 S.TRA 2SB1119S-TD-E
Q13 1520000531 S.TRA 2SB1119S-TD-E
Q14 1520000531 S.TRA 2SB1119S-TD-E
Q15 1520000531 S.TRA 2SB1119S-TD-E
Q16 1590002310 S.TRA DTC114EE TL
Q17 1590002310 S.TRA DTC114EE TL
Q18 1590002310 S.TRA DTC114EE TL
Q19 1590002310 S.TRA DTC114EE TL
Q20 1590002310 S.TRA DTC114EE TL
Q21 1590002310 S.TRA DTC114EE TL
Q22 1590002310 S.TRA DTC114EE TL
Q23 1510000781 S.TRA 2SA1586-Y(TE85R,F)
Q24 1530002691 S.TRA 2SC4116-GR(TE85R,F)
Q25 1530002691 S.TRA 2SC4116-GR(TE85R,F)
Q26 1510000671 S.TRA 2SA1588-GR(TE85R, F)
Q27 1520000531 S.TRA 2SB1119S-TD-E
Q28 1590002310 S.TRA DTC114EE TL
Q29 1530002691 S.TRA 2SC4116-GR(TE85R,F)
Q30 1530002691 S.TRA 2SC4116-GR(TE85R,F)
Q32 1590002310 S.TRA DTC114EE TL
Q33 1530002691 S.TRA 2SC4116-GR(TE85R,F)
Q34 1530002371 S.TRA 2SC2714-O(TE85R,F)
Q35 1560000271 S.FET 2SK302-Y(TE85R,F)
Q36 1590002310 S.TRA DTC114EE TL
Q100 1590002310 S.TRA DTC114EE TL
Q101 1520000581 S.TRA 2SB1124S-TD-E
Q102 1590002310 S.TRA DTC114EE TL
Q103 1530002691 S.TRA 2SC4116-GR(TE85R,F)
Q104 1590002310 S.TRA DTC114EE TL
Q105 1590002310 S.TRA DTC114EE TL
Q106 1530002691 S.TRA 2SC4116-GR(TE85R,F)
Q107 1590002310 S.TRA DTC114EE TL
Q108 1590002310 S.TRA DTC114EE TL
Q109 1590002310 S.TRA DTC114EE TL
Q111 1590002310 S.TRA DTC114EE TL
Q112 1590002310 S.TRA DTC114EE TL
Q113 1590002310 S.TRA DTC114EE TL
Q114 1510000781 S.TRA 2SA1586-Y(TE85R,F)
D1 1750000341 S.DIO 1SS357(TPHR3,F)
D2 1790000620 S.DIO MA77(TX)
D3 1790000620 S.DIO MA77(TX)
D4 1730000681 S.ZEN RD4.7M-T2B-A B2
D6 1730000681 S.ZEN RD4.7M-T2B-A B2
D7 1750000341 S.DIO 1SS357(TPHR3,F)
D8 1750000341 S.DIO 1SS357(TPHR3,F)
D11 1750000271 S.DIO 1SS301(TE85L,F)
D12 1750000271 S.DIO 1SS301(TE85L,F)
D13 1750000291 S.DIO 1SS300(TE85R,F)
D14 1750000291 S.DIO 1SS300(TE85R,F)
D15 1790001131 S.DIO D2FS4-5063
D16 1790000620 S.DIO MA77(TX)
D17 1790000620 S.DIO MA77(TX)
D18 1790000620 S.DIO MA77(TX) [USA] only
D20 1790000620 S.DIO MA77(TX)
D21 1790000620 S.DIO MA77(TX)
D23 1730000411 S.ZEN RD5.1M-T2B-A B2
D24 1730000411 S.ZEN RD5.1M-T2B-A B2
D26 1750000271 S.DIO 1SS301(TE85L,F)
S.=Surface mount
[MAIN UNIT]
REF ORDER
DESCRIPTION
NO. NO.
D27 1790000620 S.DIO MA77(TX)
D50 1790000620 S.DIO MA77(TX)
D51 1790000620 S.DIO MA77(TX)
D52 1750000271 S.DIO 1SS301(TE85L,F)
D54 1790000620 S.DIO MA77(TX)
D55 1790000620 S.DIO MA77(TX)
D56 1750000341 S.DIO 1SS357(TPHR3,F)
D59 1750000341 S.DIO 1SS357(TPHR3,F)
D60 1750000341 S.DIO 1SS357(TPHR3,F)
D61 1750000271 S.DIO 1SS301(TE85L,F)
D62 1750000291 S.DIO 1SS300(TE85R,F)
D63 1750000271 S.DIO 1SS301(TE85L,F)
D66 1790001131 S.DIO D2FS4-5063
D67 1750000341 S.DIO 1SS357(TPHR3,F)
D68 1750000341 S.DIO 1SS357(TPHR3,F)
D69 1790000620 S.DIO MA77(TX)
D70 1750000341 S.DIO 1SS357(TPHR3,F)
D71 1790000620 S.DIO MA77(TX)
D72 1750000271 S.DIO 1SS301(TE85L,F)
D73 1750000271 S.DIO 1SS301(TE85L,F)
D75 1750000271 S.DIO 1SS301(TE85L,F)
D76 1750000341 S.DIO 1SS357(TPHR3,F)
D77 1790001131 S.DIO D2FS4-5063
D78 1790001131 S.DIO D2FS4-5063
D84 1790001131 S.DIO D2FS4-5063
D85 1750000271 S.DIO 1SS301(TE85L,F)
D86 1790001131 S.DIO D2FS4-5063
D87 1790001131 S.DIO D2FS4-5063
D88 1790001131 S.DIO D2FS4-5063
X1 6050009890 S.XTA CR-569 SMD-49 6.144 MHz<KDS>
X2 6050009870 S.XTA CR-567 SMD-49 9.8304 MHz<KDS>
L1 6200003261 S.COI NLV32T-101J
L2 6200003261 S.COI NLV32T-101J
L3 6200003261 S.COI NLV32T-101J
L4 6200003261 S.COI NLV32T-101J
L5 6200003261 S.COI NLV32T-101J
L6 6200003261 S.COI NLV32T-101J
L7 6200003261 S.COI NLV32T-101J
L8 6200003261 S.COI NLV32T-101J
L9 6200001831 S.COI NLV32T-100J
L10 6200001831 S.COI NLV32T-100J
L11 6200003261 S.COI NLV32T-101J
L12 6200003261 S.COI NLV32T-101J
L13 6200003950 S.COI HF50ACC 322513-T
L14 6200003950 S.COI HF50ACC 322513-T
L15 6200003261 S.COI NLV32T-101J
L16 6200003261 S.COI NLV32T-101J
L17 6200001831 S.COI NLV32T-100J
L19 6200003261 S.COI NLV32T-101J
L22 6200003261 S.COI NLV32T-101J
L24 6200003261 S.COI NLV32T-101J
L25 6200003261 S.COI NLV32T-101J
L27 6200001831 S.COI NLV32T-100J
L28 6140002220 COI LR-270 (TR6X3X2 3A9)
L29 6190000221 COI S0971136-101K-LF
L30 6200003261 S.COI NLV32T-101J
L31 6200003261 S.COI NLV32T-101J
L32 6200003261 S.COI NLV32T-101J
L35 6140002220 COI LR-270 (TR6X3X2 3A9)
L36 6200003261 S.COI NLV32T-101J
L37 6180000990 COI LAL 04NA 101K
L38 6200003950 S.COI HF50ACC 322513-T
L39 6200003950 S.COI HF50ACC 322513-T
L40 6200003950 S.COI HF50ACC 322513-T
L41 6200003950 S.COI HF50ACC 322513-T
L42 6200003950 S.COI HF50ACC 322513-T
L43 6200003950 S.COI HF50ACC 322513-T
L44 6200003950 S.COI HF50ACC 322513-T
L45 6200003950 S.COI HF50ACC 322513-T
L46 6200003950 S.COI HF50ACC 322513-T
L47 6200003950 S.COI HF50ACC 322513-T
L48 6200003950 S.COI HF50ACC 322513-T
L49 6200003261 S.COI NLV32T-101J
L50 6200003950 S.COI HF50ACC 322513-T
L51 6200003261 S.COI NLV32T-101J
L52 6200003261 S.COI NLV32T-101J
L54 6200003950 S.COI HF50ACC 322513-T
L55 6200003950 S.COI HF50ACC 322513-T
L56 6200003950 S.COI HF50ACC 322513-T
L57 6200003950 S.COI HF50ACC 322513-T
L58 6200003950 S.COI HF50ACC 322513-T
L59 6200003950 S.COI HF50ACC 322513-T
L60 6200003950 S.COI HF50ACC 322513-T
L61 6200003950 S.COI HF50ACC 322513-T
L62 6200003950 S.COI HF50ACC 322513-T
L63 6200003950 S.COI HF50ACC 322513-T
L64 6200003950 S.COI HF50ACC 322513-T
L65 6200003950 S.COI HF50ACC 322513-T
L66 6200003950 S.COI HF50ACC 322513-T
L67 6200003950 S.COI HF50ACC 322513-T
L68 6200003950 S.COI HF50ACC 322513-T
L69 6200003950 S.COI HF50ACC 322513-T
L70 6200003950 S.COI HF50ACC 322513-T
L71 6200003950 S.COI HF50ACC 322513-T
L72 6200003950 S.COI HF50ACC 322513-T
L73 6200003950 S.COI HF50ACC 322513-T
L74 6200003950 S.COI HF50ACC 322513-T
L75 6200003261 S.COI NLV32T-101J
L76 6200003261 S.COI NLV32T-101J
L77 6200001831 S.COI NLV32T-100J
