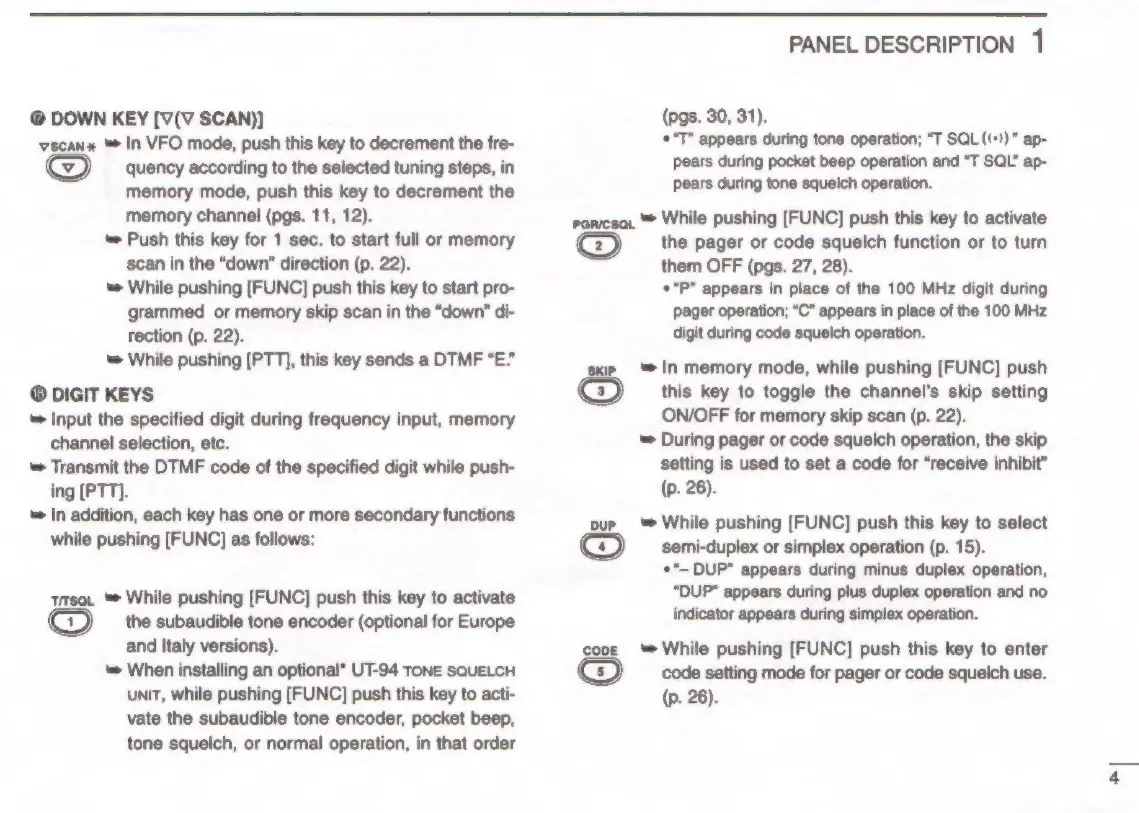

@ DOWN KEY [V(V SCAN)]
vscanx “ In VFO mode, push this key to decrement the fre-
GW) quency according to the selected tuning steps, in
memory mode, push this key to decrement the
memory channel (pgs. 11, 12).
‘» Push this key for 1 sec. to start full or memory
scan in the “down” direction (p. 22).
‘» While pushing [FUNC] push this key to start pro-
grammed or memory skip scan in the “down” di-
rection (p. 22).
‘» While pushing [PTT], this key sends a DTMF “E”
© DIGIT KEYS
‘» Input the specified digit during frequency input, memory
channel selection, etc.
‘» Transmit the DTMF code of the specified digit while push-
ing [PTT].
‘ In addition, each key has one or more secondary functions
while pushing [FUNC] as follows:
tsa. “ While pushing [FUNC] push this key to activate
the subaudible tone encoder (optional for Europe
and Italy versions).
‘» When installing an optional* UT-94 TONE SQUELCH
unit, while pushing [FUNC] push this key to acti-
vate the subaudible tone encoder, pocket beep,
tone squelch, or normal operation, in that order
PANEL DESCRIPTION 1
(pgs. 30, 31).
**T” appears during tone operation; “T SQL ((+))” ap-
pears during pocket beep operation and “T SQL’ ap-
pears during tone squelch operation.
pancsat “ While pushing [FUNC] push this key to activate
© the pager or code squelch function or to turn
them OFF (pgs. 27, 28).
«*“P”" appears in place of the 100 MHz digit during
pager operation; “C” appears in place of the 100 MHz
digit during code squelch operation.
i» “In memory mode, while pushing [FUNC] push
(=) this key to toggle the channel's skip setting
ON/OFF for memory skip scan (p. 22).
‘» During pager or code squelch operation, the skip
setting is used to set a code for “receive inhibit”
(p. 26).
pur While pushing [FUNC] push this key to select
@) _ semi-duplex or simplex operation (p. 15).
**- DUP” appears during minus duplex operation,
“DUP” appears during plus duplex operation and no
indicator appears during simplex operation.
cope While pushing [FUNC] push this key to enter
code setting mode for pager or code squelch use.
(p. 26).
a
