Icom IC-W2E - Front Panel Controls and Functions

J

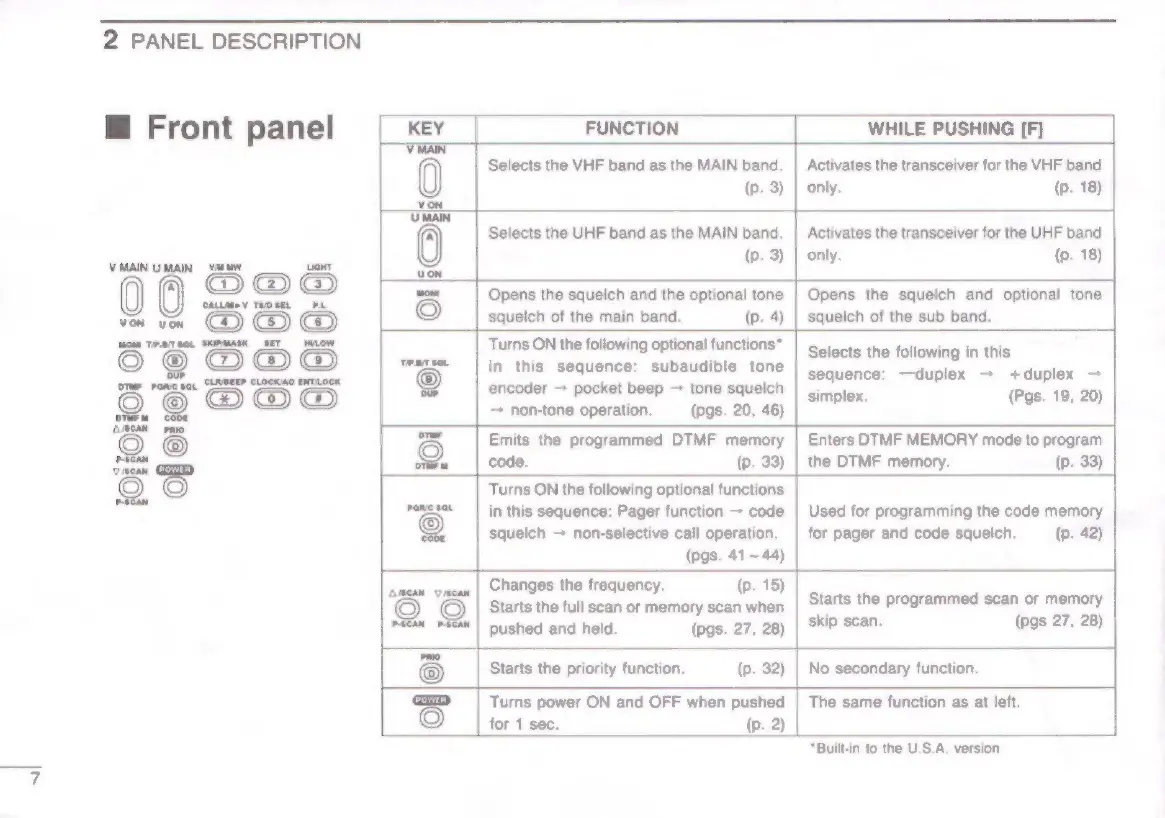

2 PANEL DESCRIPTION
@ Front panel
<
i
= Ey
=)
0
iG{0
Ps 3 Bsc 5 2
10:6:0
403 OF
(
i
i
o oFoto)
FUNCTION
Selects the VHF band as the MAIN band.
(p. 3)
WHILE PUSHING [F]
Activates the transceiver for the VHF band
only. (p. 18)
Selects the UHF band as the MAIN band. | Activates the transceiver for the UHF band
(p. 3) | only. (p. 18)
Opens the squelch and the optional tone | Opens the squelch and optional tone
squelch of the main band. (p. 4) | squelch of the sub band.
Turns ON the following optional functions*
wa in this sequence: subaudible tone
© encoder — pocket beep — tone squelch
— non-tone operation. (pgs. 20, 46)
Emits the programmed DTMF memory
code. (p. 33)
Turns ON the following optional functions
in this sequence: Pager function + code
squelch — non-selective call operation.
(pgs. 41 ~44)
Changes the frequency. (p. 15)
Starts the full scan or memory scan when
pushed and held. (pgs. 27, 28)
Selects the following in this
sequence: —duplex -~ +duplex —
simplex. (Pgs. 19, 20)
Enters DTMF MEMORY mode to program
the DTMF memory. (p. 33)
Used for programming the code memory
for pager and code squelch. (p. 42)
Starts the programmed scan or memory
skip scan. (pgs 27, 28)
Starts the priority function. (p. 32)
Turns power ON and OFF when pushed
for 1 sec. (p. 2)
No secondary function.
The same function as at left.
“Built-in to the U.S.A. version
