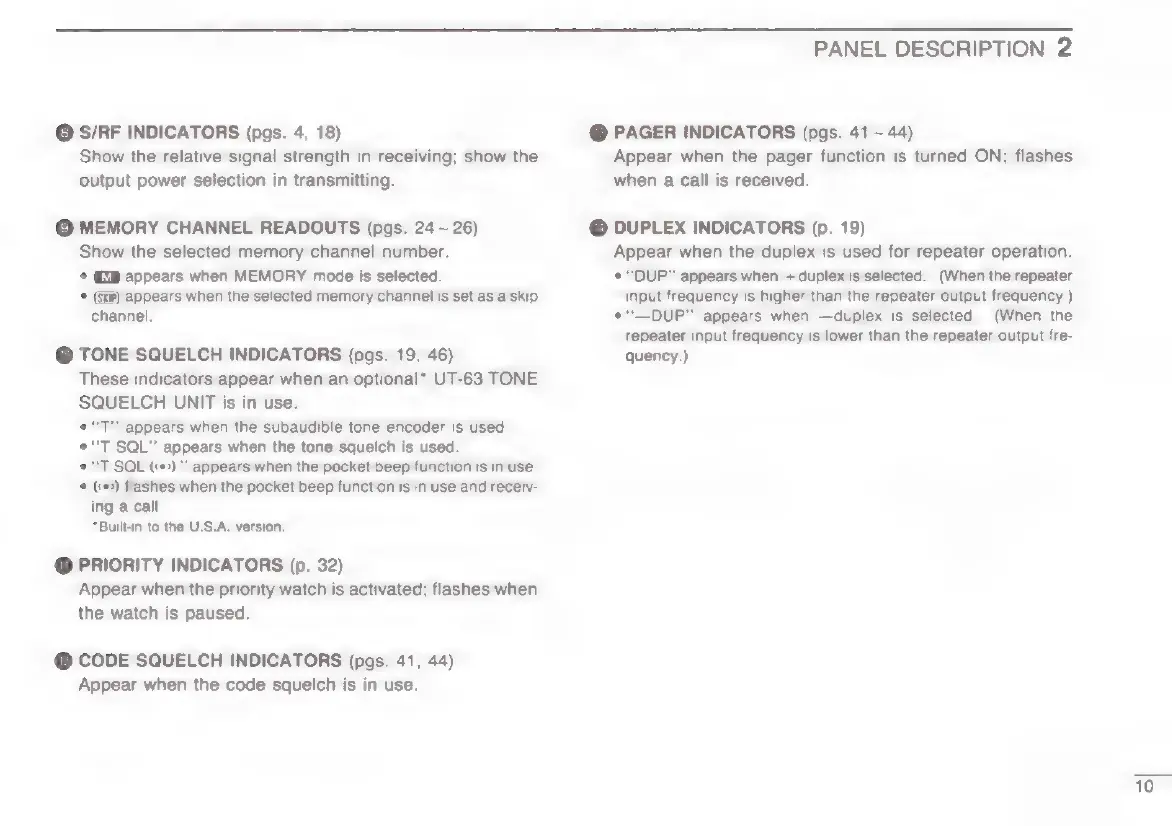

© S/RF INDICATORS (pgs. 4, 18)
Show the relative signal strength in receiving; show the
output power selection in transmitting.
© MEMORY CHANNEL READOUTS (pgs. 24 ~ 26)
Show the selected memory channel number.
* @B appears when MEMORY mode is selected.
. appears when the selected memory channel is set as a skip
channel.
@ TONE SQUELCH INDICATORS (pgs. 19, 46)
These indicators appear when an optional” UT-63 TONE
SQUELCH UNIT is in use.
*“'T’' appears when the subaudible tone encoder is used.
*“T SQL” appears when the tone squeich is used.
© “'T SQL (*:)’ appears when the pocket beep function is in use.
* (<*)) flashes when the pocket beep function is in use and receiv-
ing a call
*Built-in to the U.S.A. version.
@ PRIORITY INDICATORS (p. 32)
Appear when the priority watch is activated; flashes when
the watch is paused.
@ CODE SQUELCH INDICATORS (pgs. 41, 44)
Appear when the code squelch is in use.
PANEL DESCRIPTION 2
@ PAGER INDICATORS (pgs. 41 ~ 44)
Appear when the pager function is turned ON; flashes
when a Call is received.
@ DUPLEX INDICATORS (p. 19)
Appear when the duplex is used for repeater operation.
© “DUP” appears when + duplex is selected. (When the repeater
input frequency is higher than the repeater output frequency.)
¢“—DUP" appears when —duplex is selected. (When the
repeater input frequency is lower than the repeater output fre-
quency.)
