Icom IC-W2E - DTMF Memory Operations; DTMF Code Programming and Transmission

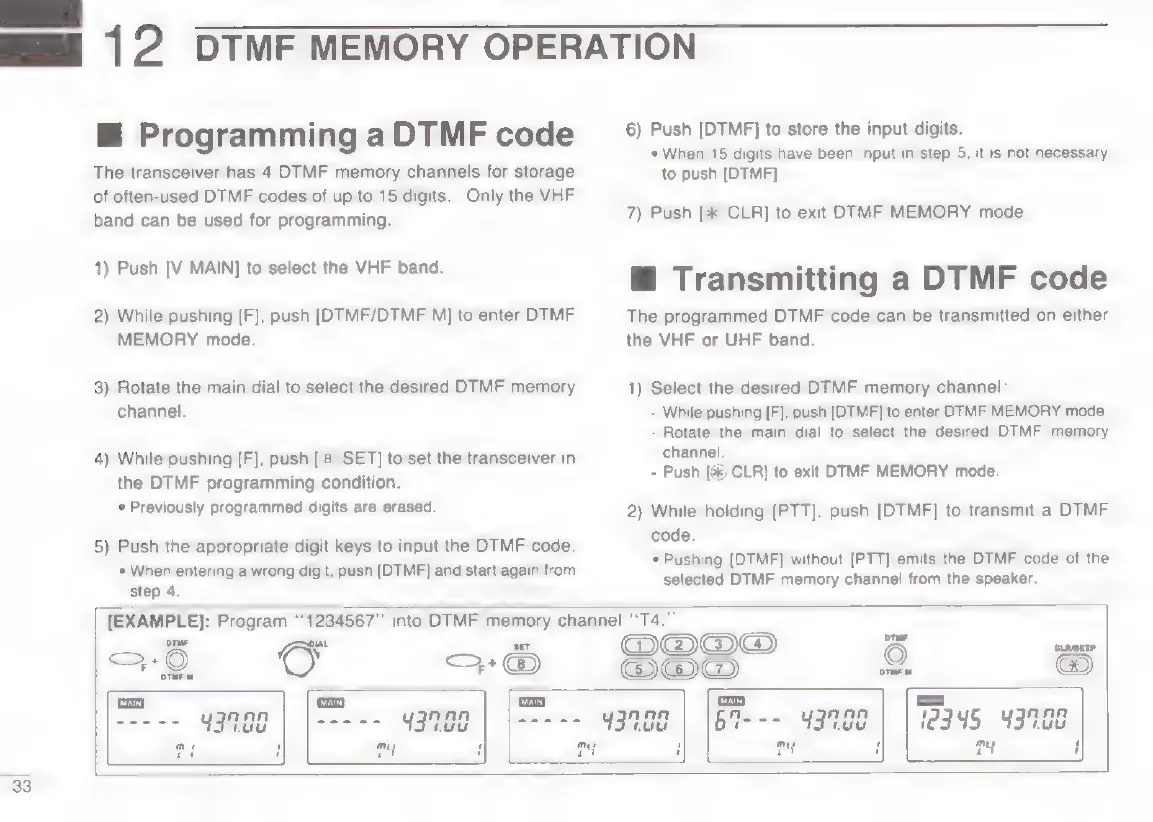

@ Programming a DTMF code
The transceiver has 4 DTIMF memory channels for storage
of often-used DTMF codes of up to 15 digits. Only the VHF
band can be used for programming.
1) Push [V MAIN] to select the VHF band.
2) While pushing [F], push [DTMF/DTMF M] to enter DTMF
MEMORY mode.
3) Rotate the main dial to select the desired DTMF memory
channel.
4) While pushing [F], push (8) SET] to set the transceiver in
the DTMF programming condition.
* Previously programmed digits are erased.
5) Push the appropriate digit keys to input the DTMF code.
* When entering a wrong digit, push [DTMF] and start again from
step 4,
en |
mg 12 DTMF MEMORY OPERATION
6) Push [DTMF] to store the input digits.
When 15 digits have been input in step 5, it is not necessary
to push [DTMF].
7) Push [&) CLR] to exit DTMF MEMORY mode.
@ Transmitting a DTMF code
The programmed DTMF code can be transmitted on either
the VHF or UHF band.
1) Select the desired DTMF memory channel:
- While pushing [F], push [DTMF] to enter DOTMF MEMORY mode.
- Rotate the main dial to select the desired DTMF memory
channel.
- Push [%) CLR] to exit DTMF MEMORY mode.
2) While holding [PTT], push [DTMF] to transmit a DTMF
code.
* Pushing [DTMF] without [PTT] emits the DTMF code of the
selected DTMF memory channel from the speaker.
[EXAMPLE]: Program ‘'1234567" into DTIMF memory channel ‘‘T4.””
set
=> BD
OOO@
we
ti
OOD
i)
[van]
2345 YITLEG
fy i
