Technische Daten
15
Acoustical operating principle
Directional pattern
Frequency range
Field Sensitivity (mV/Pa)
Field Sensitivity (dB re iV/Pa)
Rated Impedance
Min. load impedance
SPL
S/N ratio
Power supply voltage
Current consumption
Weight (Microphone only)
(with suspension mount)
Dimensions
Pressure gradient transducer
Cardioid
20Hz – 18KHz
23.30
-32.7
200 Ohms
1000 Ohms
126dB
83.7dB
48V +/-3V
2.9mA
0.67Kg (1.5lb)
1.09Kg (2.4lb)
50mm (dia.) x 209mm (L)
1.97” (dia.) x 8.23” (L)

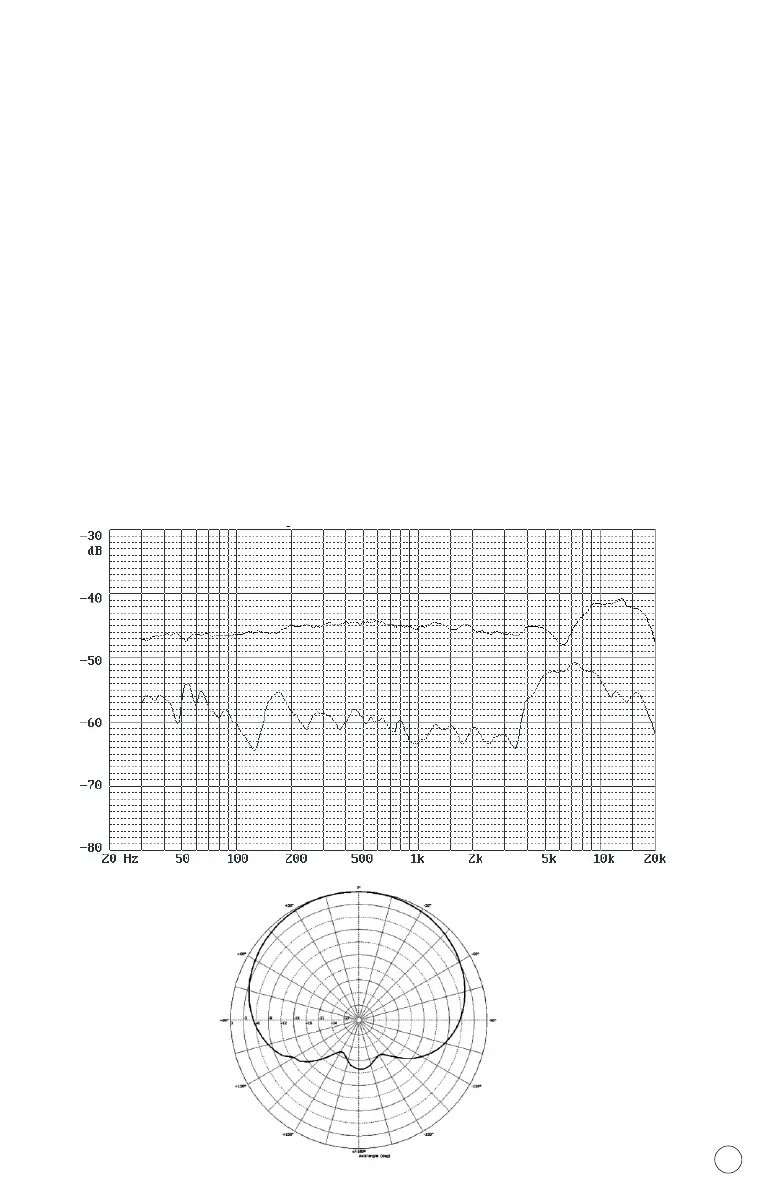

Frequency response chart
