ICON PRO-FORM EASY STRIDER - ROLLER ARM ATTACHMENT; PEDAL ARM INSTALLATION

11
9

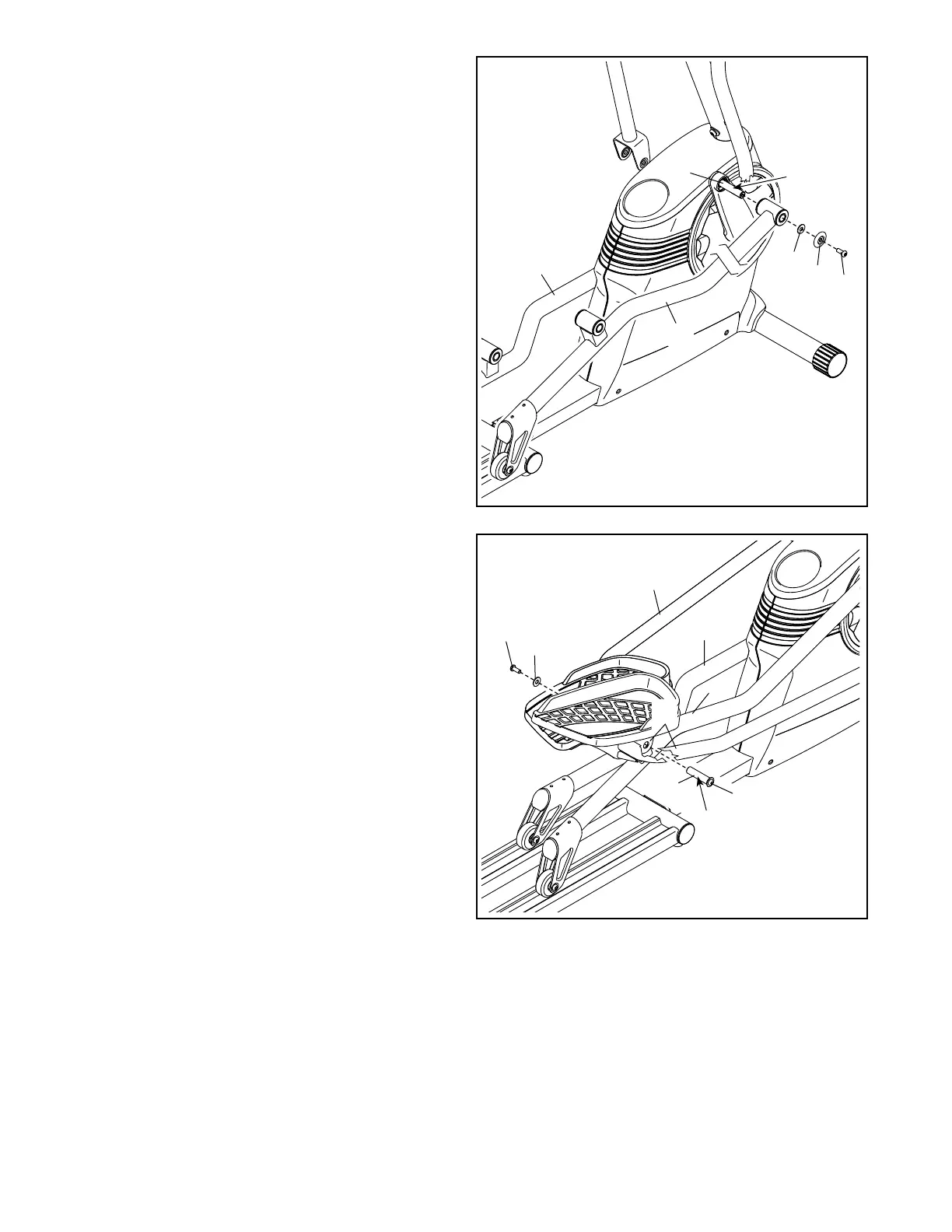

9. Apply grease to the right Crank Arm (13).
Identify the Right Roller Arm (7) and orient it as
shown.
Attach the Right Roller Arm (7) to the right Crank
Arm (13) with an M8 x 20mm Screw (61), an
Axle Cover (44), and an M8 Washer (63).
Attach the Left Roller Arm (8) in the same
way.
61
Grease
44
63
13
8
7
10
10. Apply grease to a Short Axle (19).
Then, identify the Right Pedal Arm (9).
Slide the Right Pedal Arm (9) onto the Right
Roller Arm (7) as shown, and insert the Short
Axle (19) into both parts from the direction
shown.
Finger tighten an M8 x 20mm Screw (61) with
an M8 Washer (63) into the end of the Short
Axle (19).
Then, tighten both of the M8 x 20mm Screws
(61) in the Short Axle (19) at the same time.
Attach the Left Pedal Arm (10) to the Left
Roller Arm (8) in the same way.
10
61
63
8
7
19
61
9
Grease
