ICON PRO-FORM EASY STRIDER - UPRIGHT ATTACHMENT TO FRAME; LONG AXLE INSTALLATION

9
5
2
1
72
74
73
77
80
80
62
Hexagonal Hole
62
32
6

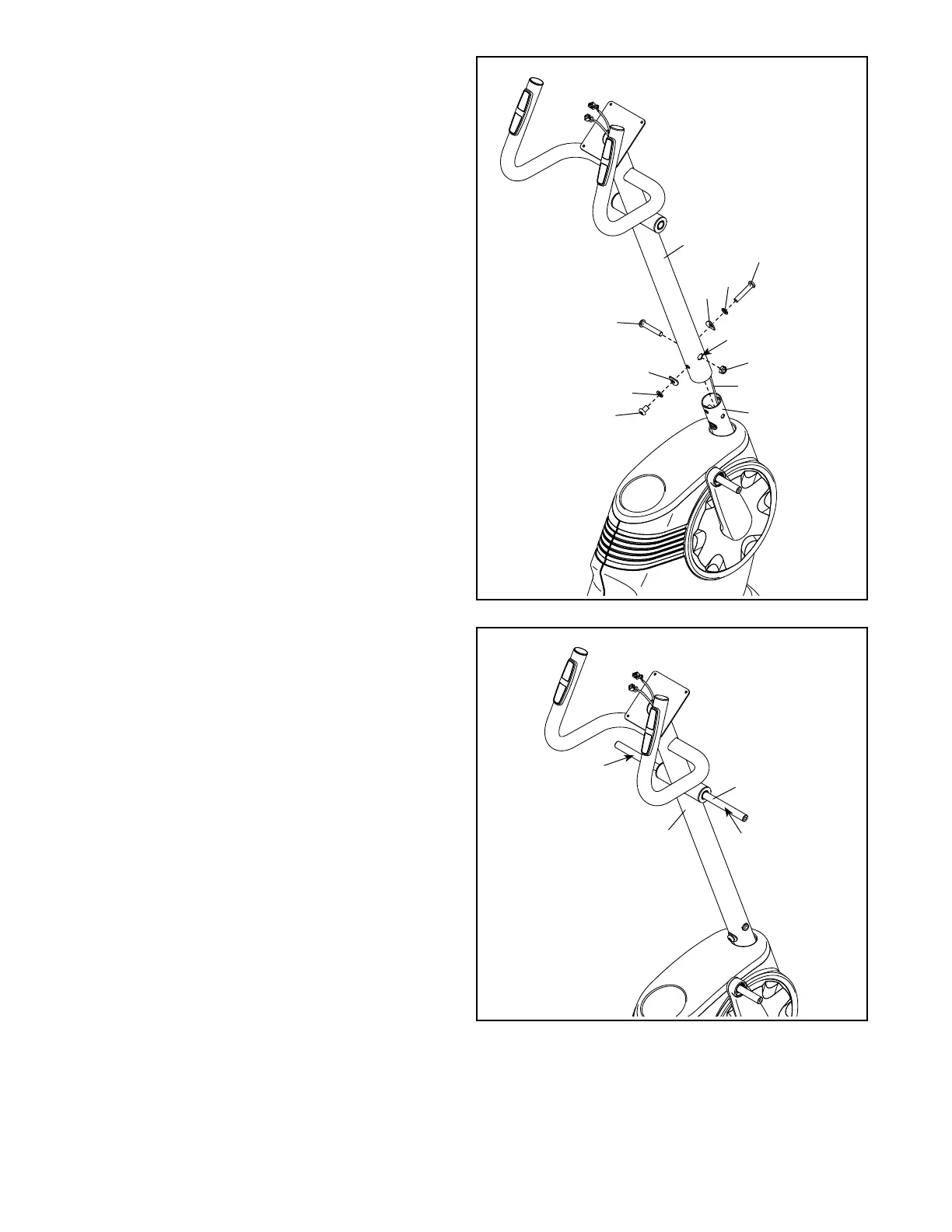

5. Tip: Avoid pinching the Main Wire Harness
(32). Slide the Upright (2) onto the Frame (1).
Attach the Upright (2) with an M10 x 53mm
Screw (73), an M10 x 20mm Screw (74), two
M10 Split Washers (80), and two M10 Curved
Washers (62) as shown; do not fully tighten
the Screws yet.
Finish attaching the Upright (2) with an M10 x
60mm Bolt (72) and an M10 Locknut (77); do
not fully tighten the Screws yet. Make sure
that the Locknut is in the hexagonal hole.
Grease
Grease
18
2
Avoid pinching
the Main Wire
Harness (32)
6. Insert the Long Axle (18) into the Upright (2) and
center it.
Using a plastic bag to keep your fingers clean,
apply some of the included grease to both ends
of the Long Axle (18).
