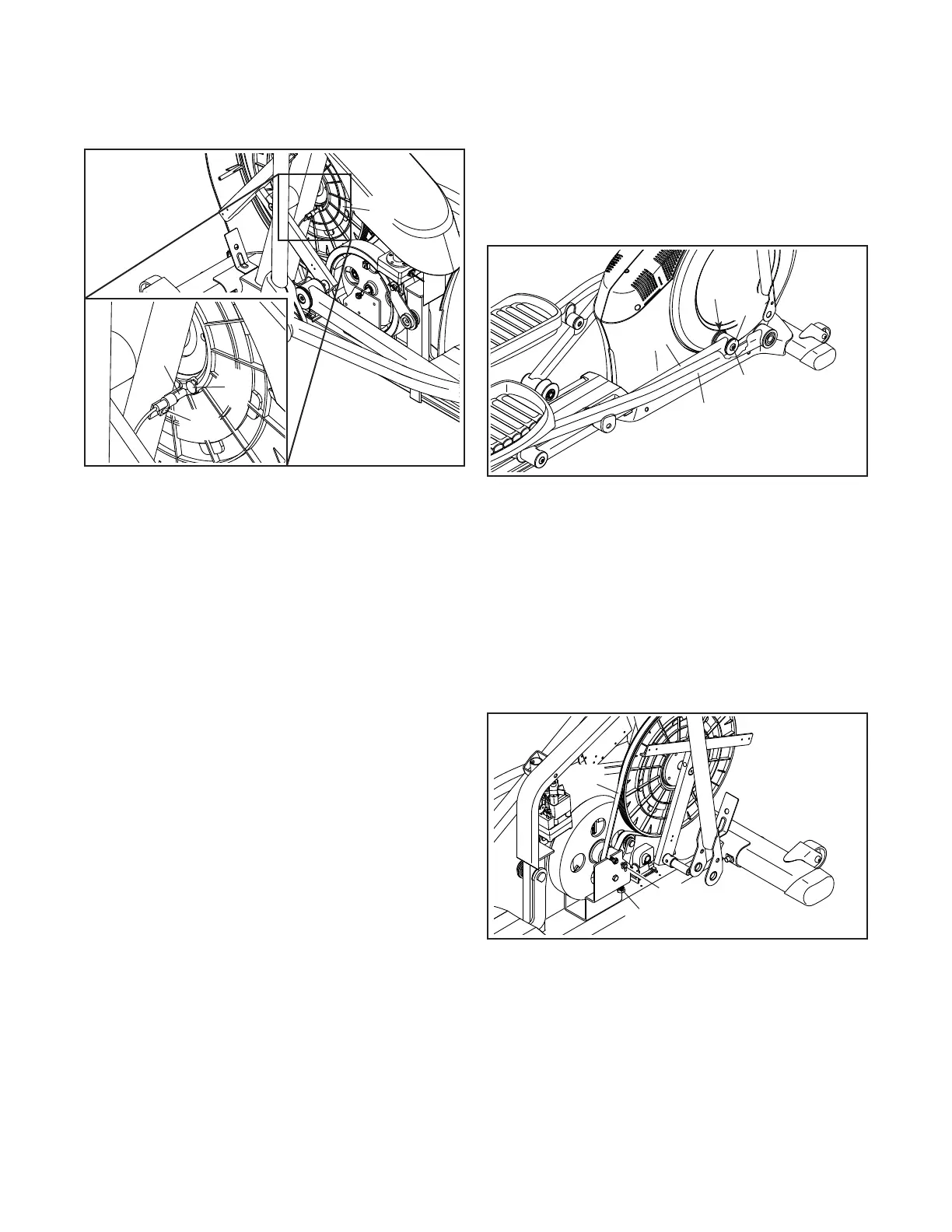

Next, locate the Reed Switch (38). Turn the Pulley (19)
until a Magnet (43) is aligned with the Reed Switch.
Note: For clarity, the left shield and the left disc ring are
shown removed in the drawing below.
Next, slightly loosen the indicated M4 x 16mm Screw
(101). Then, slide the Reed Switch (38) slightly closer
to or away from the Magnet (43), and retighten the
Screw.
Plug in the power cord, press the power switch to the
reset position, and rock the Pulley (19) forward and
backward just enough that the Magnet (43) passes the
Reed Switch (38) repeatedly.
Repeat these actions until the console displays correct
feedback. When the reed switch is correctly adjusted,
press the power switch to the off position, unplug the
power cord, and reattach the left disc.
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while
the resistance is adjusted to the highest level, the drive
belt may need to be adjusted. To adjust the drive belt,
first press the power switch to the off position and
unplug the power cord.
See assembly step 16 on page 15. Use a standard
screwdriver to remove the Shield Cover (75) and the
Shield Cover Cap (118).
See assembly step 15 on page 15. Remove
the Right Upper Body Leg Outer and Inner Covers
(69, 83).
See assembly step 12 on page 13. Remove the
Right Pedal Arm (58) from the Right Upper Body
Leg (60).
Next, remove the M8 x 16mm Screw (95), the Axle
Cover (53), and the M8 Washer (not shown) from the
right Crank Arm (20). Then, carefully remove the Right
Pedal Arm (58) and the Right Roller Arm (59) from the
elliptical.
See EXPLODED DRAWING C on page 39. Identify
the Left and Right Shields (73, 74). Remove the
M4 x 19mm Tek Screws (5), the M4 x 19mm Screws
(127), and the M4 x 48mm Screw (107) from the Left
and Right Shields; make sure to note the location of
each size of Screw. Then, remove the Right Shield.
Next, locate and loosen the Idler Screw (89), tighten
the Belt Adjustment Screw (91) until the Drive Belt
(113) is tight, and then retighten the Idler Screw.
Reattach the right shield, the right roller arm, the right
pedal arm, the shield cover cap, and the shield cover.
Then, plug in the power cord.
