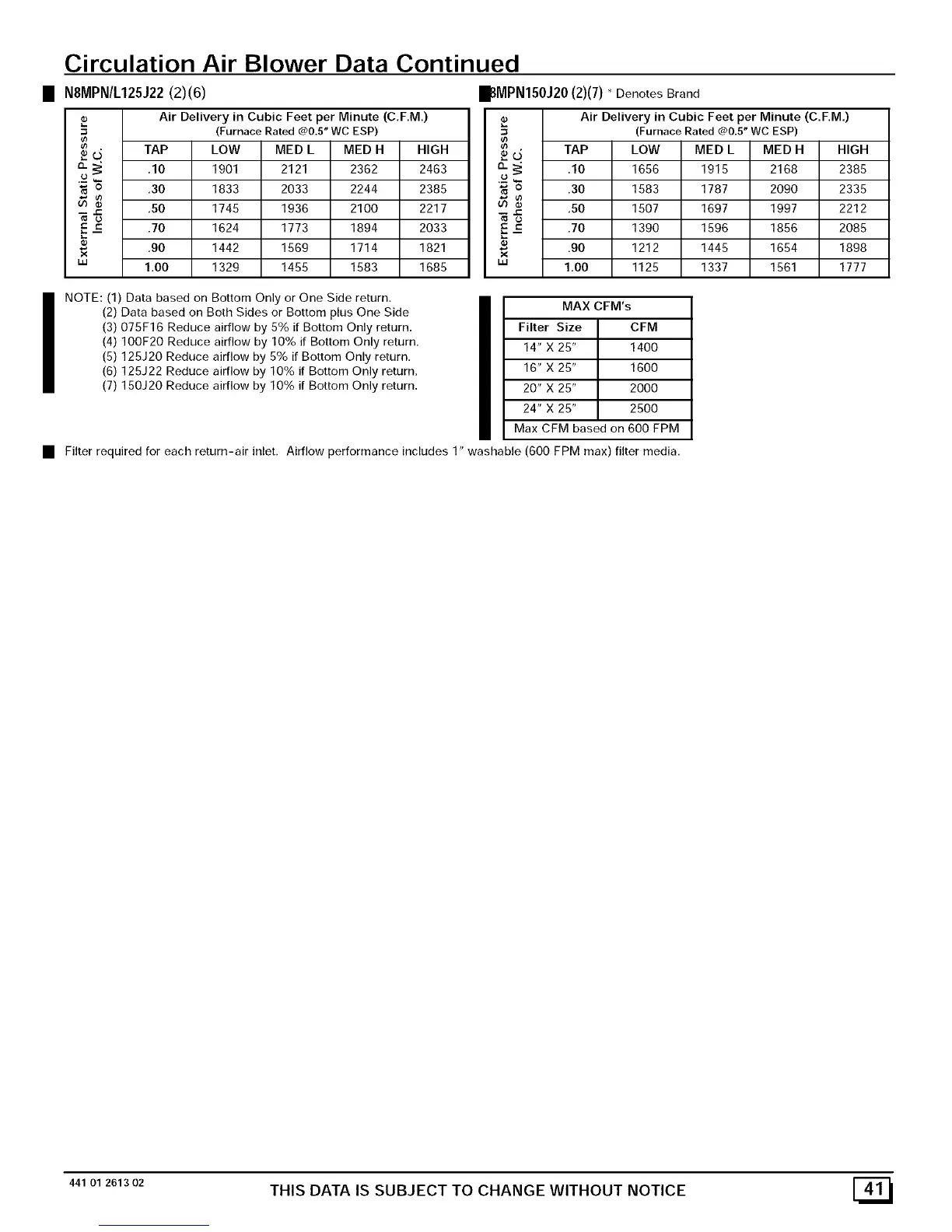

Circulation Air Blower Data Continued
• N8MPN/L125J22(2)(6)
Air Delivery in Cubic Feet per Minute (C.F.M.)
= (Furnace Rated @0.5" WC ESP)
O TAP LOW MED L MED H HIGH
_ ,10 1901 2121 2362 2463
,£
_o ,30 1833 2033 2244 2385
,50 1745 1936 2100 2217
E _ .70 1624 1773 1894 2033
.90 1442 1569 1714 1821
1.00 1329 1455 1583 1685
_ISMPN150J20(2)(7)* DenotesBrand
p Air Delivery in Cubic Feet per Minute (C.F.M,)
= (Furnace Rated @0.5" WC ESP)
u_
u_
._ t; TAP LOW MED L MED H
a. ;_ .10 1656 1915 2168
,u T..
o .30 1583 1787 2090
_.c_"_ _ .50 1507 1697 1997
_ .70 1390 1596 1856
_4 .90 1212 1445 1654
×
uJ 1.00 1125 1337 1561
HIGH
2385
2335
2212
2085
1898
1777
I IIMAxO Ms
Filter Size CFM
14" X 25" 1400
16" X 25" 1600
20" X 25" 2000
24" X 25" 2500
Max CFM based on 600 FPM
• Filter required for each return-air inlet. Airflow performance includes 1" washable (600 FPM max) filter media.
NOTE: (1) Data based on Bottom Only or One Side return.
(2) Data based on Both Sides or Bottom plus One Side
(3) 075F16 Reduce airflow by 5% if Bottom Only return.
(4) 100F20 Reduce airflow by 10% if Bottom Only return,
(5) 125J20 Reduce airflow by 5% if Bottom Only return.
(6) 125J22 Reduce airflow by 10% if Bottom Only return,
(7) 150J20 Reduce airflow by 10% if Bottom Only return,
44101261302 THIS DATA IS SUBJECT TO CHANGE WITHOUT NOTICE [_1
