ICP A Series User Manual

46 440 01 4542 00
Specifications subject to change without notice.

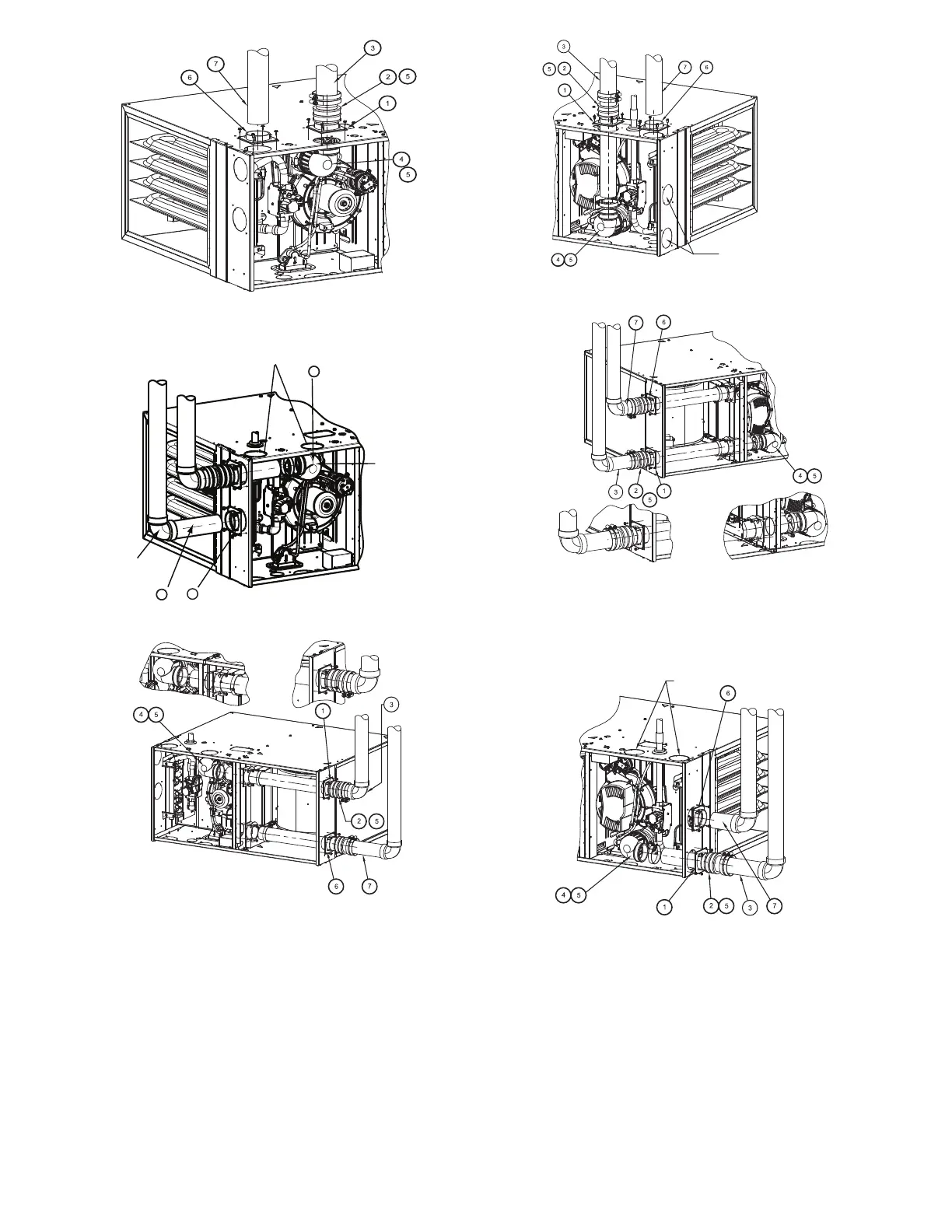

HORIZONTAL LEFT---VERTICAL VENT CONFIGURATION
A11327A
6
4
Alternate combustion air
connection.
Rotate vent
elbow to
required
position.
4
5
Vent Pipe
HORIZONAL LEF T ---LEFT VENT CONFIGURATION
A11328A
Requires Accessory Vent Kit
See Product Data for
Current Kit Number
HORIZONTAL LEFT---RIGHT VENT CONFIGURATION
A11329A
Fig. 55 -- Horizontal Left (Appearance may vary)
See “ Notes for Venting Options”
ALTERNATE
COMBUSTION
AIR CONNECTIONS
HORIZONTAL RIGHT---VERTICAL VENT CONFIGURATION
A11337
Requires Internal Vent Kit
See Product Data for Current Kit Number
HORIZONTAL RIGHT---LEFT VENT CONFIGURATION
A11336
ALTERNATE
COMBUSTION
AIR CONNECTIONS
HORIZONTAL RIGHT---RIGHT VENT CONFIGURATION
A11335
Fig. 56 -- Horizontal Right (Appearance may vary)
See “ Notes for Venting Options”
NOTES FOR VENTING OPTIONS
1. Attach vent pipe adapter with gasket to furnace casing.
2. Align notches in rubber coupling over standoffs on adapter. Slide clamps over the coupling.
3. Slide vent pipe through adapter and coupling into vent elbow.
4. Insert vent pipe into vent elbow.
5. Torque all clamps 15 lb.-- in.
6. Attach combustion air pipe adapter with gasket to furnace.
7. Attach combustion air pipe to adapter with silicone. Pilot drill a1/8--in. hole in adapter and secure with a #7 x 1/2--in. sheet metal
screw .
