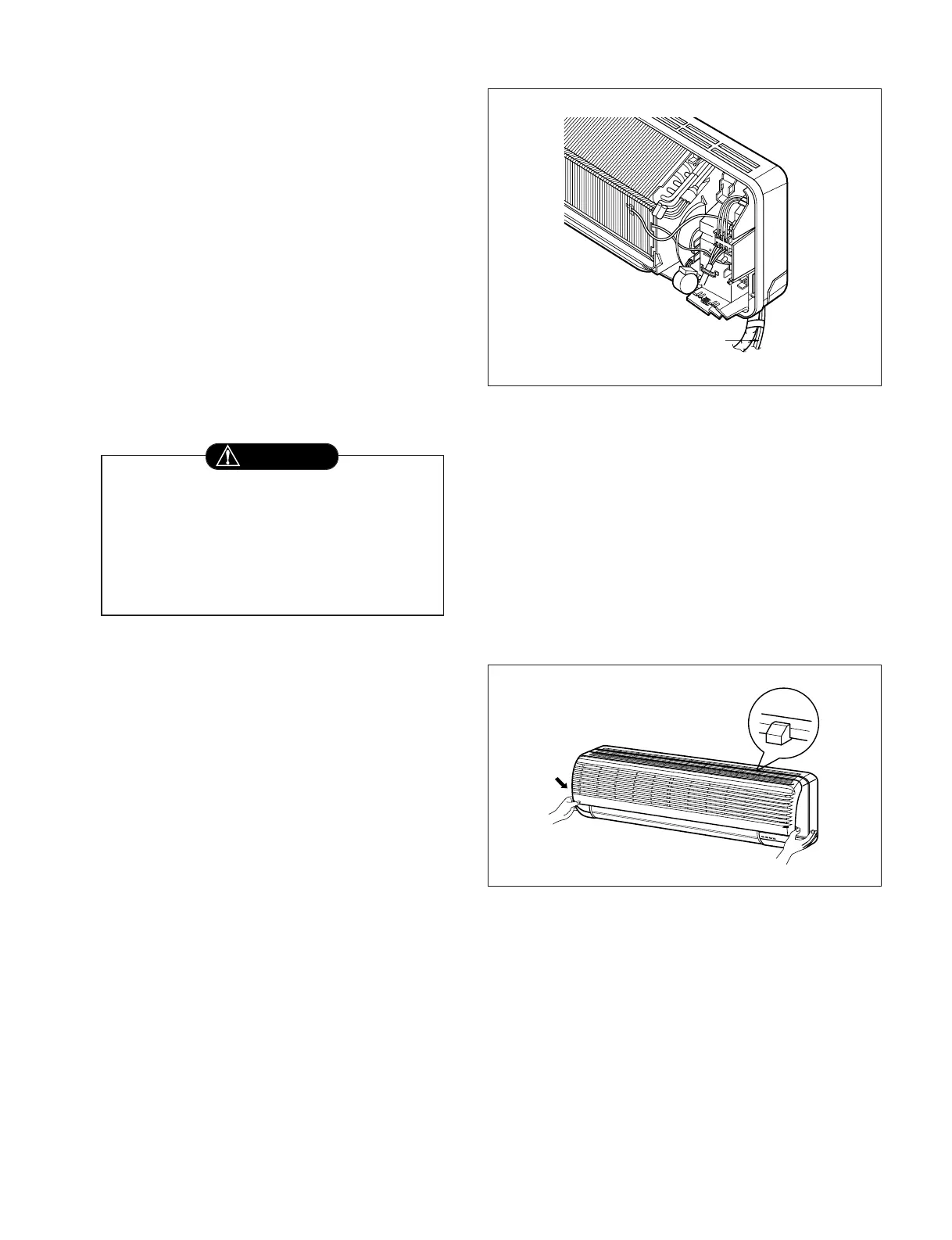

2) Connect the cable to the indoor unit
1. Connect the wires to the terminals on the
control board individually according to the
outdoor unit connection.
• Ensure that the color of the wires of outdoor unit
and the terminal No. are the same as those of
indoor unit respectively.
(Refer to Wiring diagram on page30.)
Connecting cable
2. Attach the Grille onto the cabinet.
• Grasp lower the left and right side of the Grille and
engage four tabs on the top inside edge of the
chassis.
• Press the Grille toward the chassis until it will be
back into place.
• Be sure to refer to the wiring diagram label
inside the cover control and carry out the
correct field wiring.
Wrong wiring can cause the unit to misoperate
to result in a fire hazard.
• Check local electrical codes and any specified
wiring instructions or limitations.
WARNING
To Next Page
