- 37 -
3) Forming the pipings
1. Wrap the connecting portion of indoor unit with
the Insulation material and secure it with two
Plastic Bands.(for the right pipings)
• If you want to connect an additional drain hose, the
end of the drain-outlet should keep distance from the
ground.(Do not dip it into water, and fix it on the wall
to avoid swinging in the wind.)
2. Tape the Pipings, drain hose and Connecting
Cable from down to up.
3. Form the pipings gathered by taping along the
exterior wall and fix it onto the wall by saddle or
equivalent.
2. Tape the Pipings and Connecting cable from down
to up.
3. Form the pipings gathered by taping along the
exterior wall, make the Trap to be required to
prevent water from entering into the room.
4. Fix the pipings onto the wall by saddle or
equivalent.

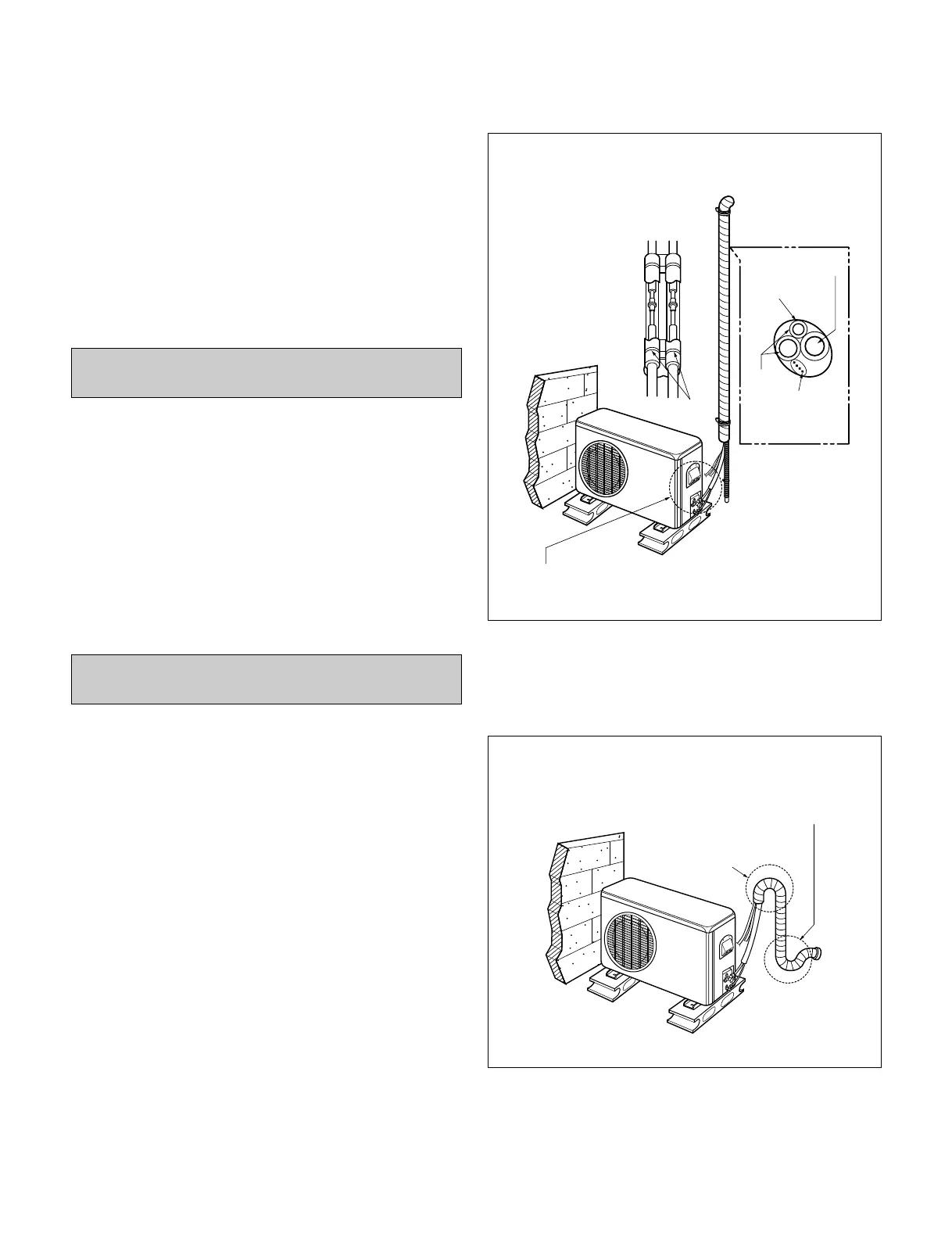

In case of the Outdoor unit being installed below
position of the Indoor unit.
In case of the Outdoor unit being installed above
position of the Indoor unit.
Seal a small opening
around the pipings with
gum type sealer.
Taping
Pipings
Connecting
cable
Plastic
band
• Trap is required to prevent water from
entering into electrical parts.
Seal a small opening
around the pipings
with gum type sealer.
Trap
Drain hose
To Next Page
