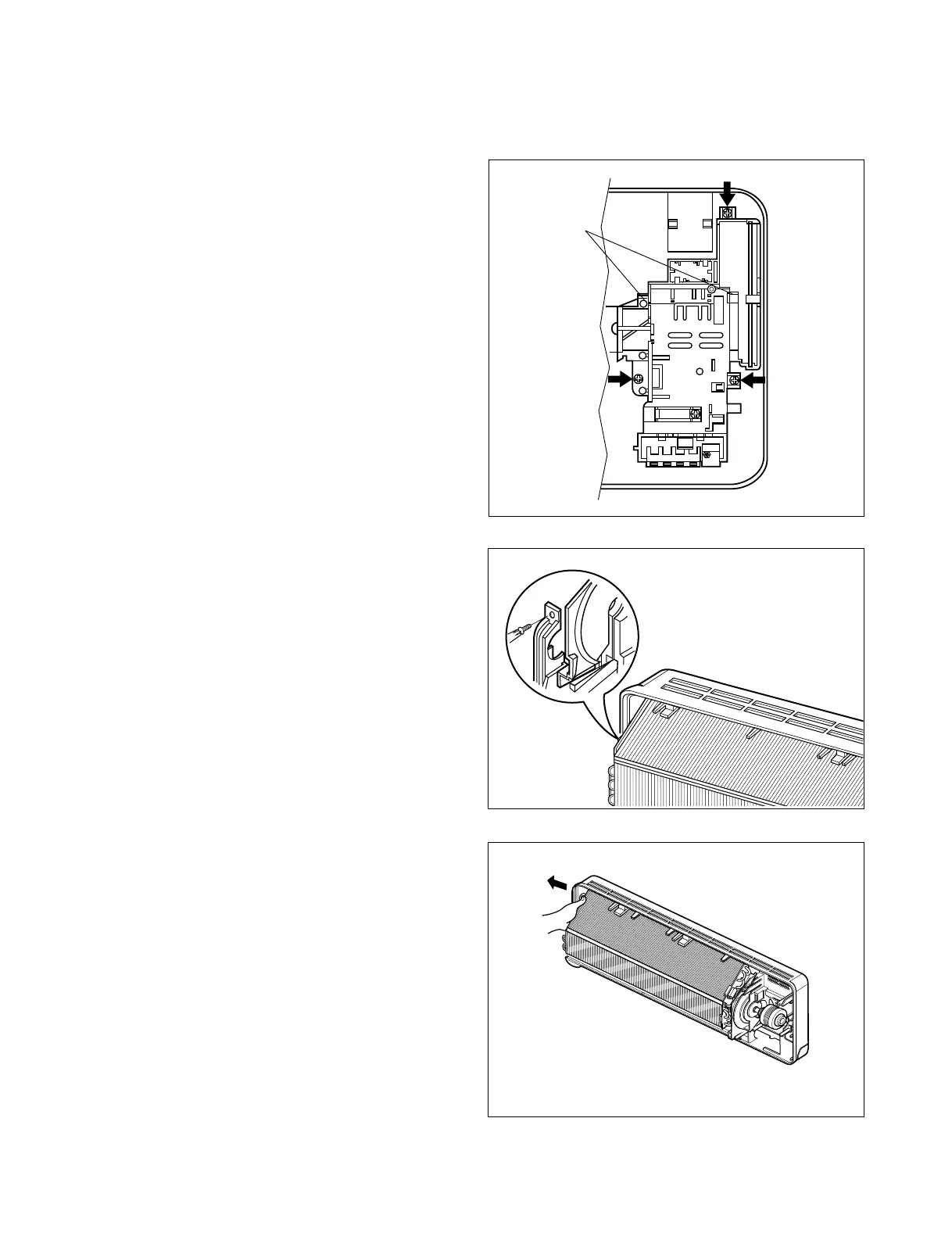

• Remove three screws fixing control box and motor.
• Remove control box assembly holding two hooks
fixing upper sides of motor.
3. To remove the Discharge Grille.
• Remove a screw on the left side of chassis.
• Pull the right side of the discharge grille out from the
chassis first and left side carefully.
4. To remove the Evaporator.
• Unhook the tab on the left inside edge of the
chassis by pressing it outwards.
- 47 -
