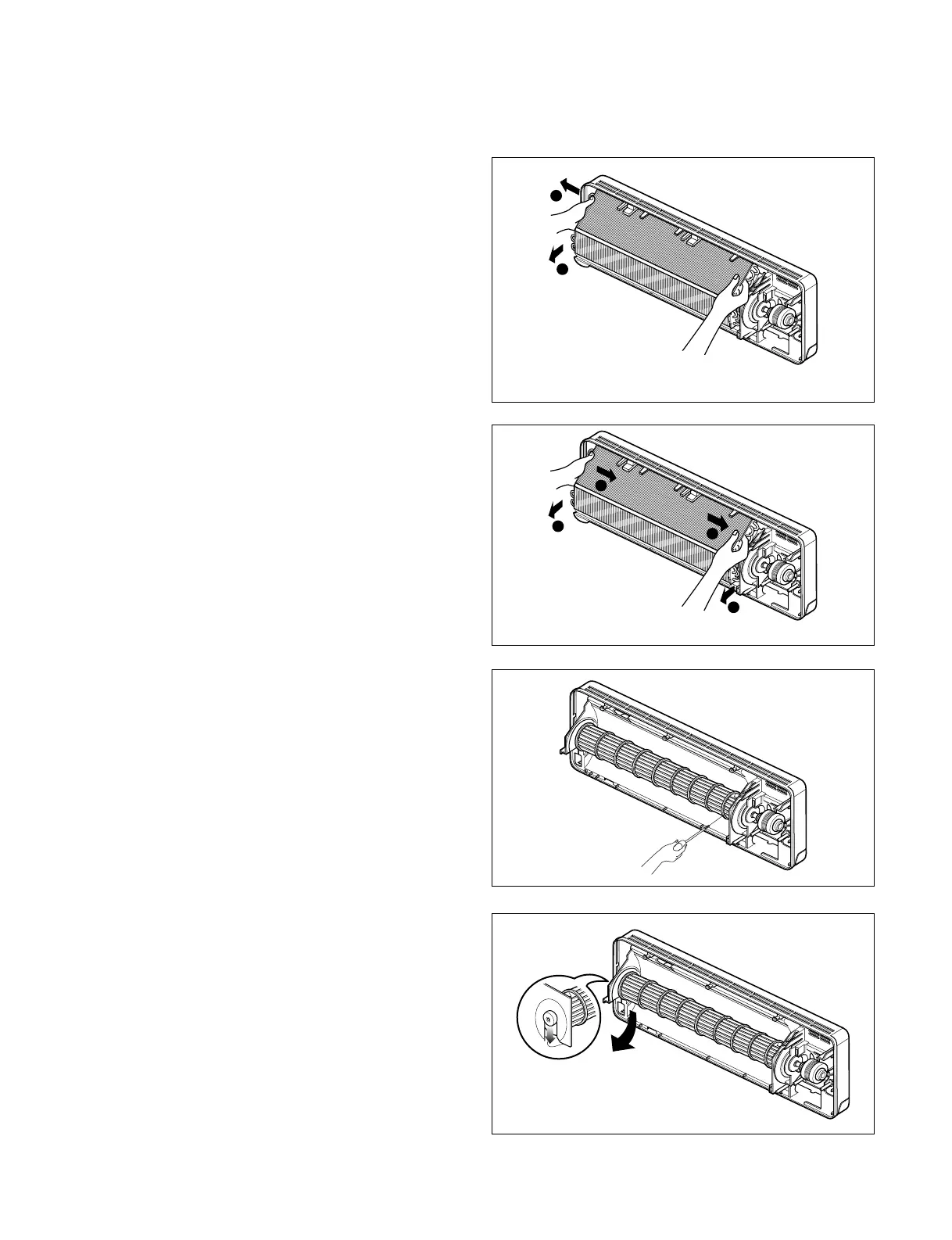

• Slightily pull the evaporator until left tab on end-
plate is clear of the chassis.
• Lift the left side of evaporator slightly from the
chassis carefully.
• Push right carefully in order to unhook the tabs on
the right inside of the chassis and pull the evapo-
rator toward you.
5. To remove the Cross-Flow Fan.
• Loosen the screw securing the cross-flow fan to
the fan motor shaft(do not remove).
• Pull the left end of the cross-flow fan with the
selfaligning bearing out the groove.
• Remove the cross-flow fan by sliding it out from
the shaft of fan motor.
6. To remove the Fan Motor.
• Pick it up from the groove. (Do not remove a black
rubber as a spacer).
- 48 -
