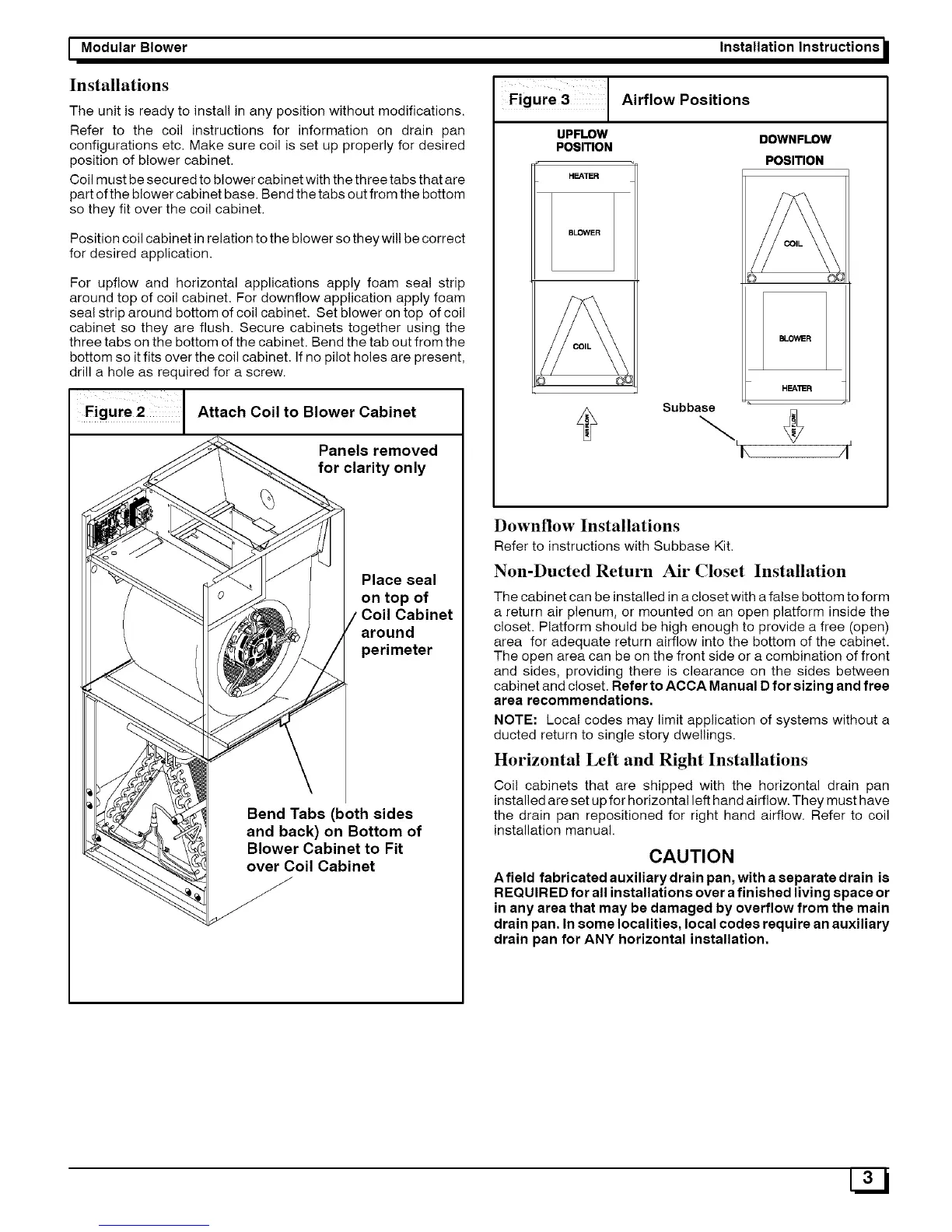

Modular Blower
Installations
The unit is ready to install in any position without modifications.
Refer to the coil instructions for information on drain pan
configurations etc. Make sure coil is set up properly for desired
position of blower cabinet.
Coil must be secured to blower cabinet with the three tabs that are
part of the blower cabinet base. Bend the tabs out from the bottom
so they fit over the coi! cabinet.
Position coil cabinet in relation to the blower so they wil! be correct
for desired application.
For upflow and horizontal applications apply foam seal strip
around top of coil cabinet. For downflow application apply foam
seal strip around bottom of coil cabinet. Set blower on top of coil
cabinet so they are flush. Secure cabinets together using the
three tabs on the bottom of the cabinet. Bend the tab out from the
bottom so it fits over the coil cabinet. If no pilot holes are present,
drill a hole as required for a screw.
Figule 2 I
Attach Coil to Blower Cabinet
Panels removed
for clarity only
Place seal
on top of
Coil Cabinet
around
perimeter
Bend Tabs (both sides
and back) on Bottom of
Blower Cabinet to Fit
over Coil Cabinet
FigUre 3 l
UPFLOW
POSITION
HEATER
BLOWER
Installation Instructions /
Airflow Positions
DOWNFLOW
POSITION
Subbase
J) \,
A'
HEA'_R
Downflow Installations
Refer to instructions with Subbase Kit.
Non-Ducted Return Air Closet Installation
The cabinet can be installed in a closet with a false bottom to form
a return air plenum, or mounted on an open platform inside the
closet. Platform should be high enough to provide a free (open)
area for adequate return airflow into the bottom of the cabinet.
The open area can be on the front side or a combination of front
and sides, providing there is clearance on the sides between
cabinet and closet. Refer to ACCA Manual D for sizing and free
area recommendations.
NOTE: Local codes may limit application of systems without a
ducted return to single story dwellings.
Horizontal Left and Right Installations
Coil cabinets that are shipped with the horizontal drain pan
installed are set up for horizontal left hand airflow. They must have
the drain pan repositioned for right hand airflow. Refer to coil
installation manual.
CAUTION
Afield fabricated auxiliary drain pan, with a separate drain is
REQUIRED for all installations over a finished living space or
in any area that may be damaged by overflow from the main
drain pan. In some localities, local codes require an auxiliary
drain pan for ANY horizontal installation.
