ICP N9MP1 User Manual

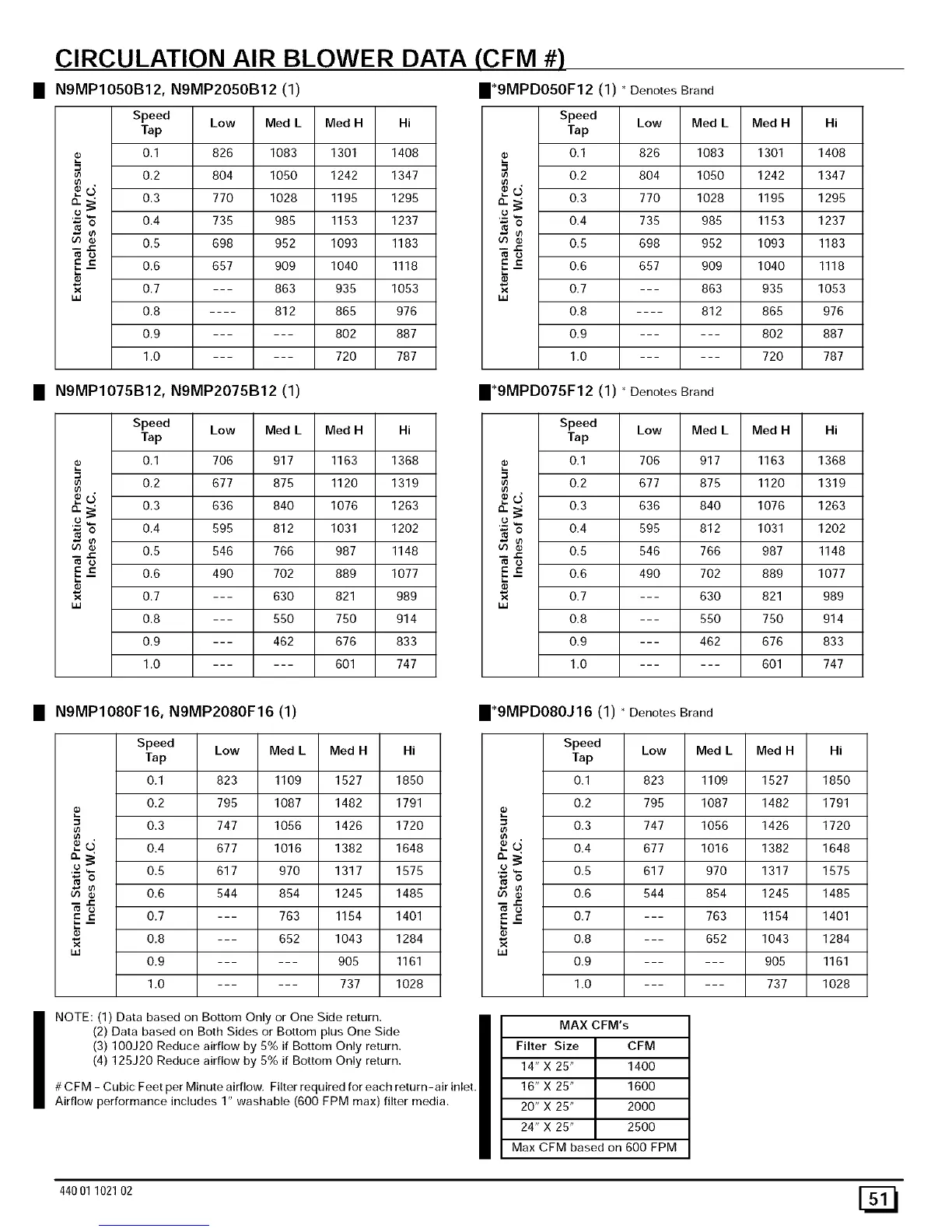

CIRCULATION AIR BLOWER DATA (CFM #)
II N9MP1050B12, N9MP2050B12 (1)
|
11*9MPD050F12 (1) _ Denotes Brand
£nd_ree_ Low Med L Med H Hi
Tap
0.1 826 1083 1301 1408
=
0.2 804 1050 1242 1347
_ O, 0.3 770 1028 1195 1295
'£ 0.4 735 985 1153 1237
_o
_ 0.5 698 952 1093 1183
_ --_ 0.6 657 909 1040 1118
× 0.7 --- 863 935 1053
0.8 .... 812 865 976
0.9 ...... 802 887
1.0 ...... 720 787
NgMP1075B12, NgMP2075B12 (1)
Speed Low Med L Med H Hi
Tap
0.1 706 917 1163 1368
=
0.2 677 875 1120 1319
_ O 0.3 636 840 1076 1263
O
'_ o 0.4 595 812 1031 1202
_ 0.5 546 766 987 1148
_ 0.6 490 702 889 1077
--
× 0.7 --- 630 821 989
0.8 --- 550 750 914
0.9 --- 462 676 833
1.0 ...... 601 747
£nrl_ree_ Low Med L Med H Hi
Tap
,¢ 0.1 826 1083 1301 1408
0.2 804 1050 1242 1347
'-_O 0.3 770 1028 1195 1295
'£ 0.4 735 985 1153 1237
_ 0.5 698 952 1093 1183
,-__c° 0.6 657 909 1040 1118
× 0.7 --- 863 935 1053
_J
0.8 .... 812 865 976
0.9 ...... 802 887
1.0 ...... 720 787
11*9MPD075F12 (1) * Denotes Brand
Speed Low Med L Med H Hi
lap
¢ 0.1 706 917 1163 1368
0.2 677 875 1120 1319
,-_tj 0.3 636 840 1076 1263
O
',_ o 0.4 595 812 1031 1202
'_ _ 0.5 546 766 987 1148
o 0.6 490 702 889 1077
,---
× 0.7 --- 630 821 989
_J
0.8 --- 550 750 914
0.9 --- 462 676 833
1.0 ...... 601 747
11*9MPD080J16 (1) * Denotes Brand
Speed Low Med L Med H Hi
lap
0.1 823 1109 1527 1850
0.2 795 1087 1482 1791
= 0.3 747 1056 1426 1720
O 0.4 677 1016 1382 1648
,£ 0.5 617 970 1317 1575
,_ _ 0.6 544 854 1245 1485
"_ 0.7 --- 763 1154 1401
0.8 --- 652 1043 1284
X
_J
0.9 ...... 905 1161
1.0 ...... 737 1028
II N9MP1080F16, N9MP2080F16 (1)
Speed Low Med L Med H Hi
Tap
0.1 823 1109 1527 1850
0.2 795 1087 1482 1791
= 0.3 747 1056 1426 1720
O 0.4 677 1016 1382 1648
,£ 0.5 617 970 1317 1575
_ 0.6 544 854 1245 1485
_ 0.7 --- 763 1154 1401
0.8 --- 652 1043 1284
X
w
0.9 ...... 905 1161
1.0 ...... 737 1028
iNOTE1Databaed°nBottomOny°rOneSdereturnII
(2) Data based on Both Sides or Bottom plus One Side
(3) 100J20 Reduce airflow by 5% if Bottom Only return.
(4) 125J20 Reduce airflow by 5% if Bottom Only return.
# CFM - Cubic Feet per Minute airflow. Filter required for each return-air inlet.
Airflow performance includes 1" washable (600 FPM max) filter media.
MAX CFM's
Filter Size CFM
14"X 25" 1400
16"X 25" 1600
20"X 25" 2000
24"X 25" 2500
Max CFM based on 600 FPM
44001 102102 [_

ICP N9MP1 Specifications

General

Stages	Single Stage
Blower Motor	Multi-Speed
Cabinet	Heavy-Gauge Steel
Heat Exchanger Material	Aluminized Steel
Fuel Type	Natural Gas
