ICP NTC5125BKD1 User Manual

Poison carbon monoxide gas hazard.
If this furnace is replacing a previously
common-vented furnace, it may be necessary to
resize the existing vent line and chimney to
prevent oversizing problems for the other
remaining appliances(s). See applicable codes
and Venting and Combustion Air Check in Gas
Vent Installation section.
Failure to properly vent this furnace or other
appliances can result in property damage,
personal injury and/or death.
Locationand Clearances
If furnace is a replacement, it is usually best to install the furnace
where the old one was. Choose the location or evaluate the exist-
ing location based upon the minimum clearance and furnace di-
mensions (Figure 1).
CAUTION
Do NOT operate furnace in a corrosive atmosphere
containing chlorine, fluorine or any other damaging
chemicals. Refer to Combustion & Ventilation Air sec-
tion, Contaminated Combustion Air.

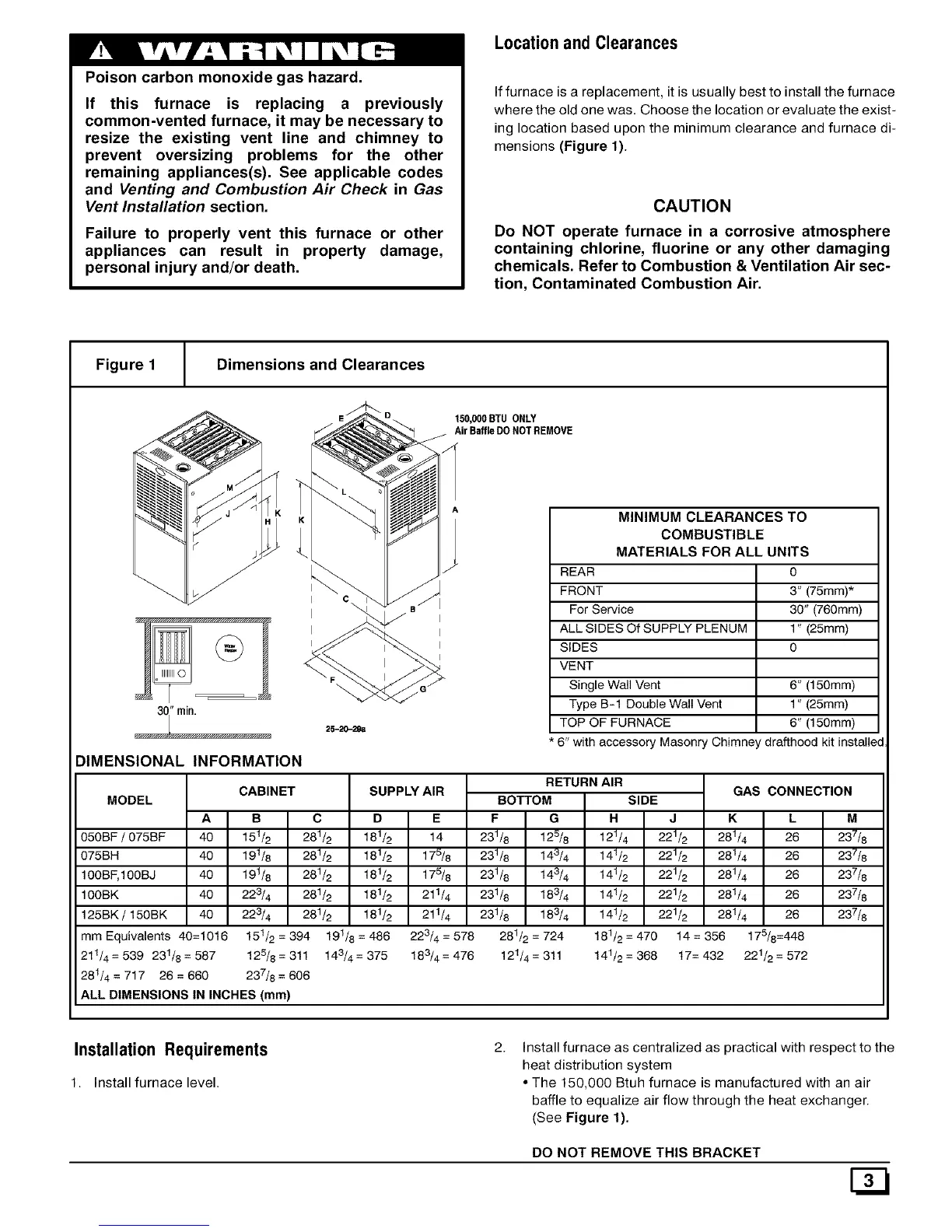

Figure 1 Dimensions and Clearances
J
150,000BTUONLY
AirBaffleDONOTREMOVE
....................
30i' rain. 2s-z_-_
DIMENSIONAL INFORMATION
MINIMUM CLEARANCES TO
COMBUSTIBLE
MATERIALS FOR ALL UNITS
REAR 0
FRONT 3" (75mm)*
For Service 30" (760mm)
ALL SIDES Of SUPPLY PLENUM 1" (25mm)
SIDES 0
VENT
Single Wall Vent 6" (150mm)
Type B-1 Double Wall Vent 1" (25mm)
TOP OF FURNACE 6" (150mm)
* 6" with accessory Masonry Chimney drafthood kit installe,
MODEL
CABINET SUPPLY AIR
RETURN AIR
GAS CONNECTION
BOTTOM SIDE
A B C D E F G H J K L M
050BF / 075BF 40 151/2 281/2 181/2 14 231/8 125/8 121/4 221/2 281/4 26 237/8
075BH 40 191/8 281/2 181/2 175/8 231/8 143/4 141/2 221/2 281/4 26 237/8
1O0BF,1OOBJ 40 191/8 281/2 181/2 178/8 231/8 143/4 141/2 221/2 281/4 26 237/8
1O0BK 40 223/4 281/2 181/2 211/4 231/8 183/4 141/2 221/2 281/4 26 237/8
125BK / 15OBK 40 223/4 281/2 181/2 211/4 231/8 183/4 141/2 221/2 281/4 26 237/8
mm Equivalents 40=10t6 151/2 = 394 191/8 = 486 223/4 = 578 281/2 = 724 181/2 = 470 14 = 356 178/8=448
211/4 = 539 231/8 = 587 128/8 = 311 143/4 = 375 183/4 = 476 121/4 = 311 141/2 = 368 t7= 432 221/2 = 572
281/4 = 717 26 = 660 237/8 = 606
ALL DIMENSIONS IN INCHES (ram)
Installation Requirements
1. Install furnace level.
Install furnace as centralized as practical with respect to the
heat distribution system
• The 150,000 Btuh furnace is manufactured with an air
baffle to equalize air flow through the heat exchanger.
(See Figure 1).
DO NOT REMOVE THIS BRACKET
