ADS-RR(SR)-HK2-DS-IG-EN maestro.idatalink.com
Hyundai Elantra all witH aMP 2011-2013
Automotive Data Solutions Inc. © 2021
4
1
48KHz
BIT RATE
44.1 KHz
LOW
INPUT LEVEL
HIGH
BACKUP CAMBACKUP CAM
CAM 1CAM 1
CAM 2CAM 2
N.C.
N.C.
N.C.
N.C.
N.C.
CAM 3CAM 3
CAM 4CAM 4
FACTORY RADIO HARNESS
STEP 2
MAIN
HARNESS
RCA CABLES
HK2 T-HARNESS
STEP 4
WIRES FROM
VEHICLE
CONNECT TO
AFTERMARKET RADIO
STEP 5

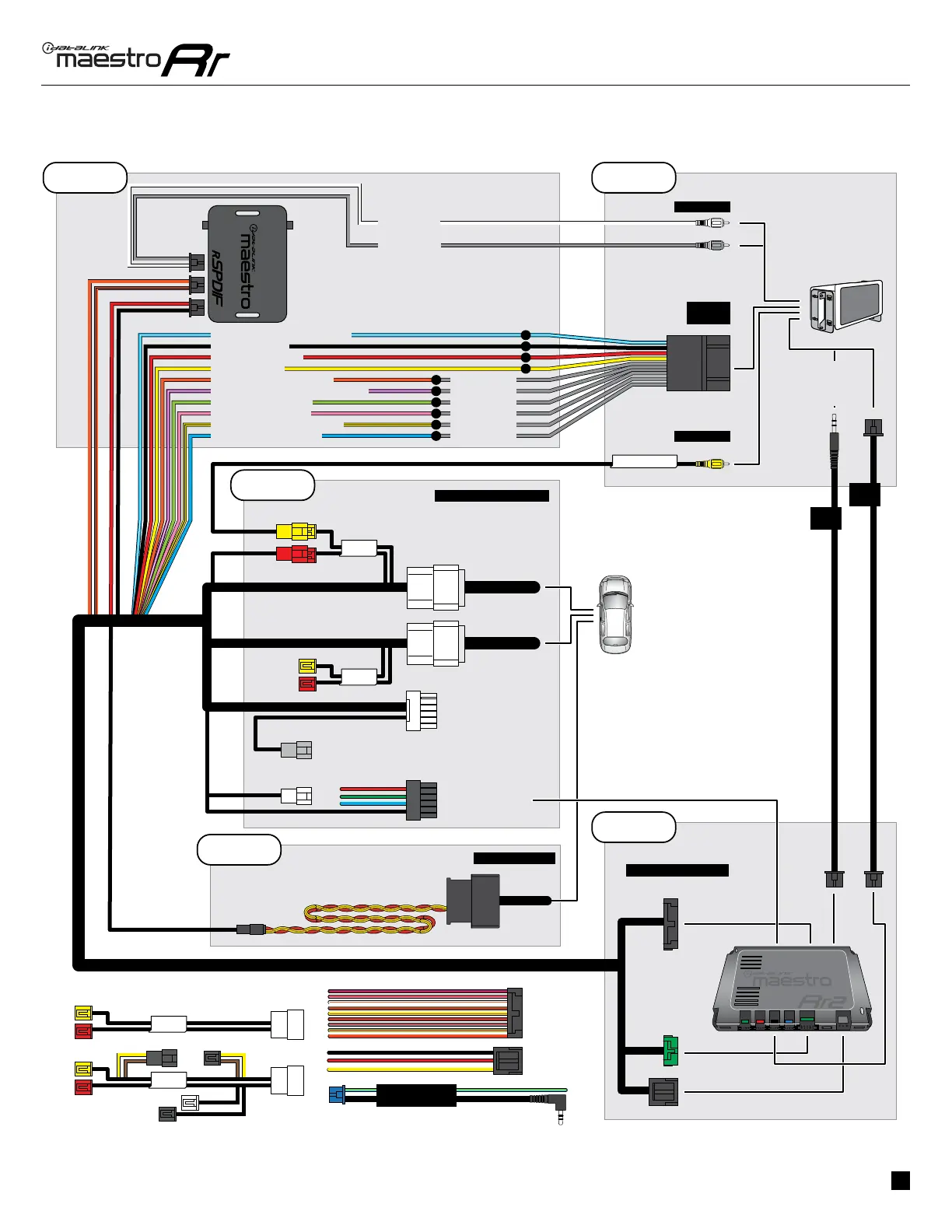

WIRING DIAGRAM
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
YELLOW/BLACK - FOOT BRAKE
BLUE - POWER ANTENNA
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
PINK - VEHICLE SPEED
LTGREEN - E-BRAKE (-)
BLUE/WHITE - AMP. TURN ON (+)
STEP 1
SEE
AFTERMARKET
RADIO GUIDE
FOR RADIO
WIRE
COLORS
NOT REQUIRED
STEERING WHEEL
CONTROL CABLE
PIONEER RADIO: ENSURE
THAT NOTHING IS PLUGGED
IN W/R PORT.
RCA CABLES
YELLOW
RED
GRAY
WHITE
STEP 3
OBDII CONNECTOR
MAESTRO RR2 MODULE
DATA
CABLE
AUDIO
CABLE
READ NOTE IN
INSTALLATION
INSTRUCTIONS
SECTION
CONNECT TO RR2
LF RCA INPUT
RF RCA INPUT
To Next Page
