Mexico Super CF 3/100, 3/125, 3/140 - Installation
42

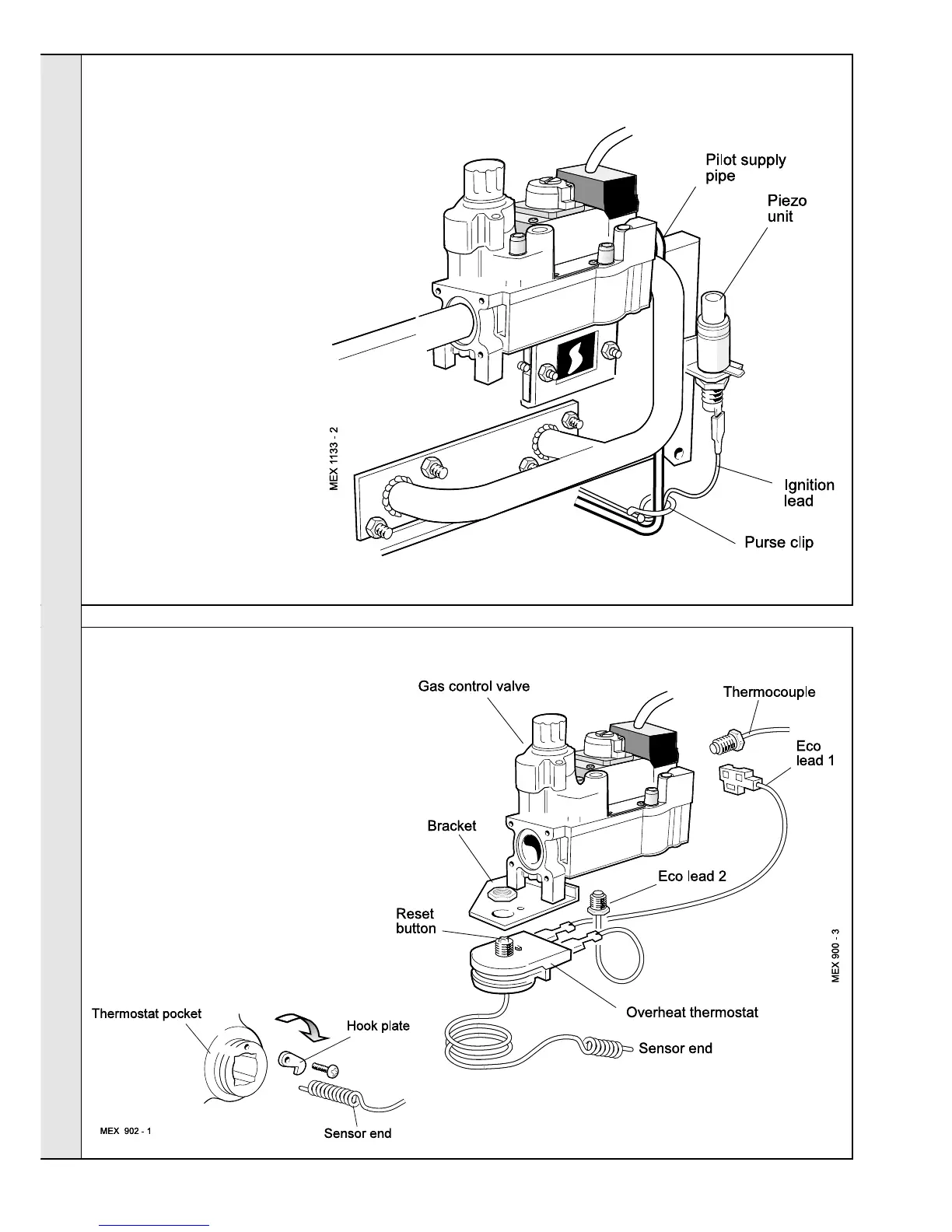

IGNITION LEAD REPLACEMENT
1. Lift off front panel and remove the grille
assembly. Refer to Frames 28 & 29.
Undo the gas cock union and the 4 wing
nuts to remove the burner / controls
assembly.
2. Remove the purse clip.
3. Disconnect the ignition lead from the
base of the electrode and the piezo unit,
and withdraw the lead.
4. Fit the new lead and re-assemble in
reverse order.
43
OVERHEAT THERMOSTAT REPLACEMENT (if fitted)
SERVICING
1. Lift off front lower panel. Refer to Frame 28.
2. Slacken the screw at the thermostat pocket
and withdraw the phial from the pocket.
3. Remove the thermostat backnut.
4. Remove the 2 Eco leads.
5. Fit the new thermostat (lead polarity
immaterial), ensuring that the alignment peg
on the thermostat sits in the small hole
adjacent to the main fixing hole and
reassemble in reverse order.
6. Replace the lower front panel.
7. Check the operation of the boiler.
SERVICING
