Ideal Boilers CF3/100 - Boiler Casing Assembly; Burner Assembly - Exploded View

33
Mexico Super CF 3/100, 3/125, 3/140 - Installation
LIST OF PARTS

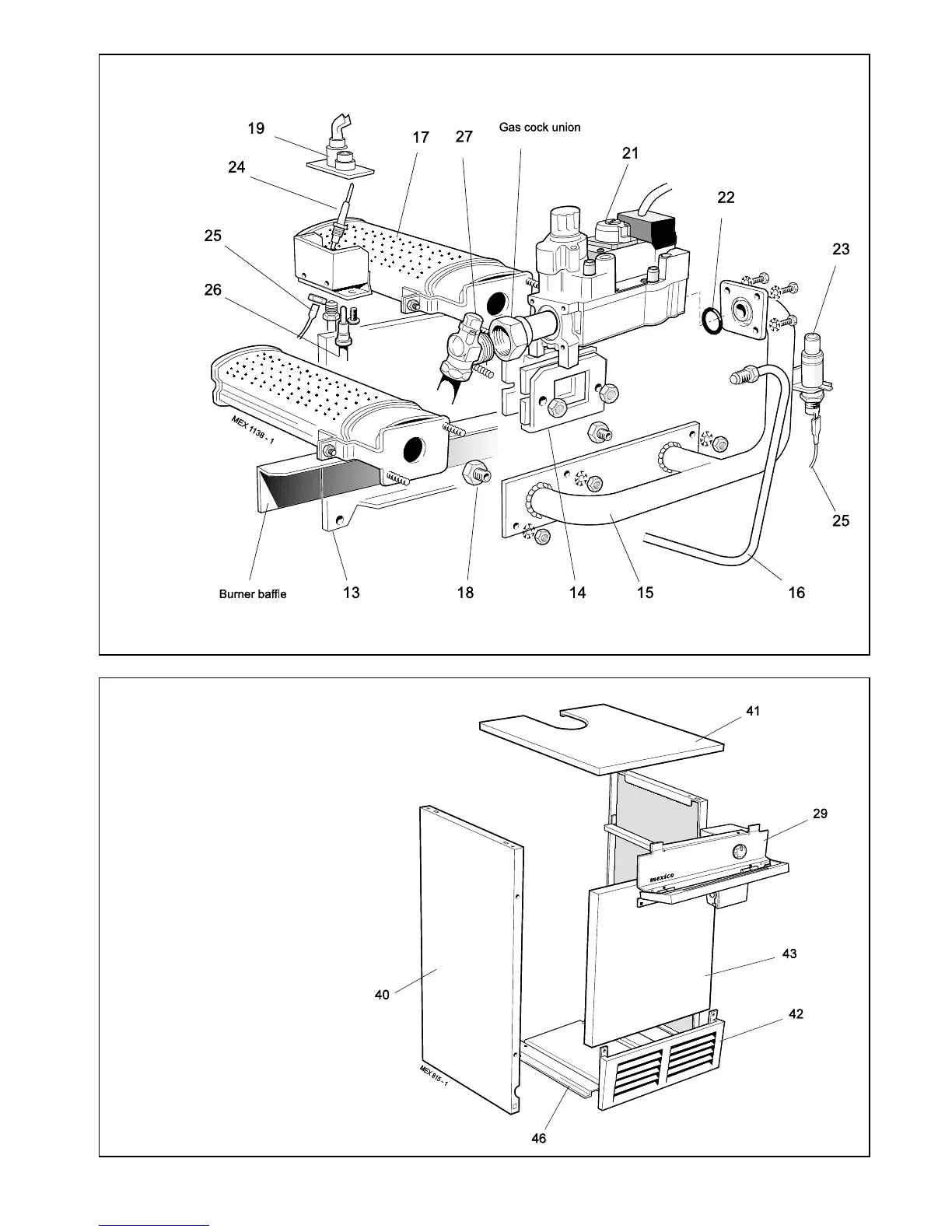

56 BOILER CASING ASSEMBLY
Legend
28. Casing complete assembly.
29. Controls panel complete assembly.
40. Side panel.
41. Top panel.
42. Grille panel.
43. Front panel.
55 BURNER AND CONTROLS ASSEMBLY - Exploded View
Legend
13. Front plate.
14. Sightglass.
15. Burner
manifold.
16. Pilot pipe.
17. Burner.
18. Burner injector
- 2 off.
19. Pilot burner.
21. Gas valve.
22. 'O' ring.
23. Piezo unit.
24. Ignition
electrode.
25. Ignition lead.
26. Thermocouple.
27. Gas service cock.
