- 14 -
10. Tighten the compression nuts
onto the mixer with a suitable spanner.
Caution!
Take care not to damage the chrome surfaces.
11. Tighten the adjustable backplate grubscrews with a 2.5mm
hexagonal key (supplied) to secure the mixer to the
backplate.
12. Refer to the Thermostatic mixer and shower fittings installation and user guides for further
installation and commissioning procedures.

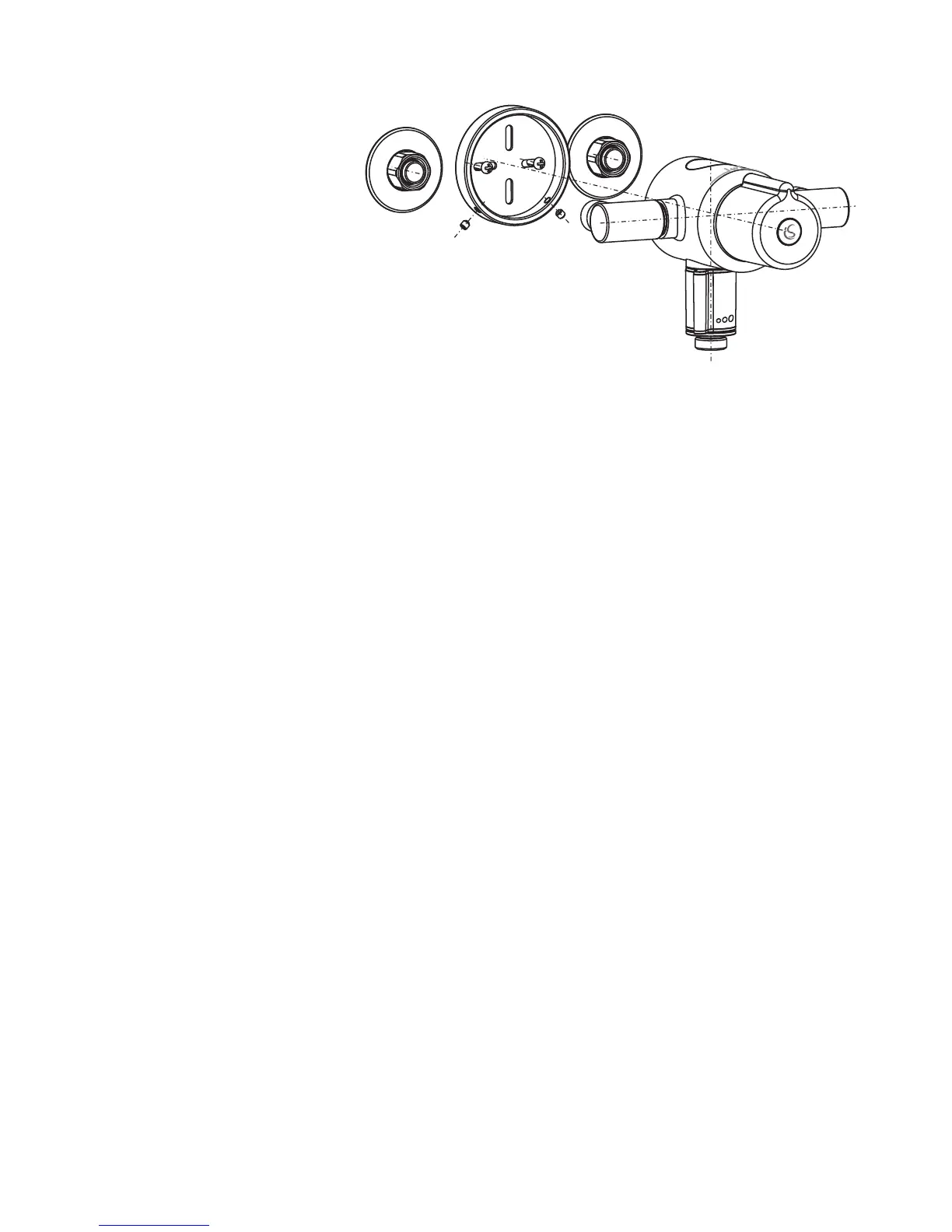

Figure 20
