- 6 -

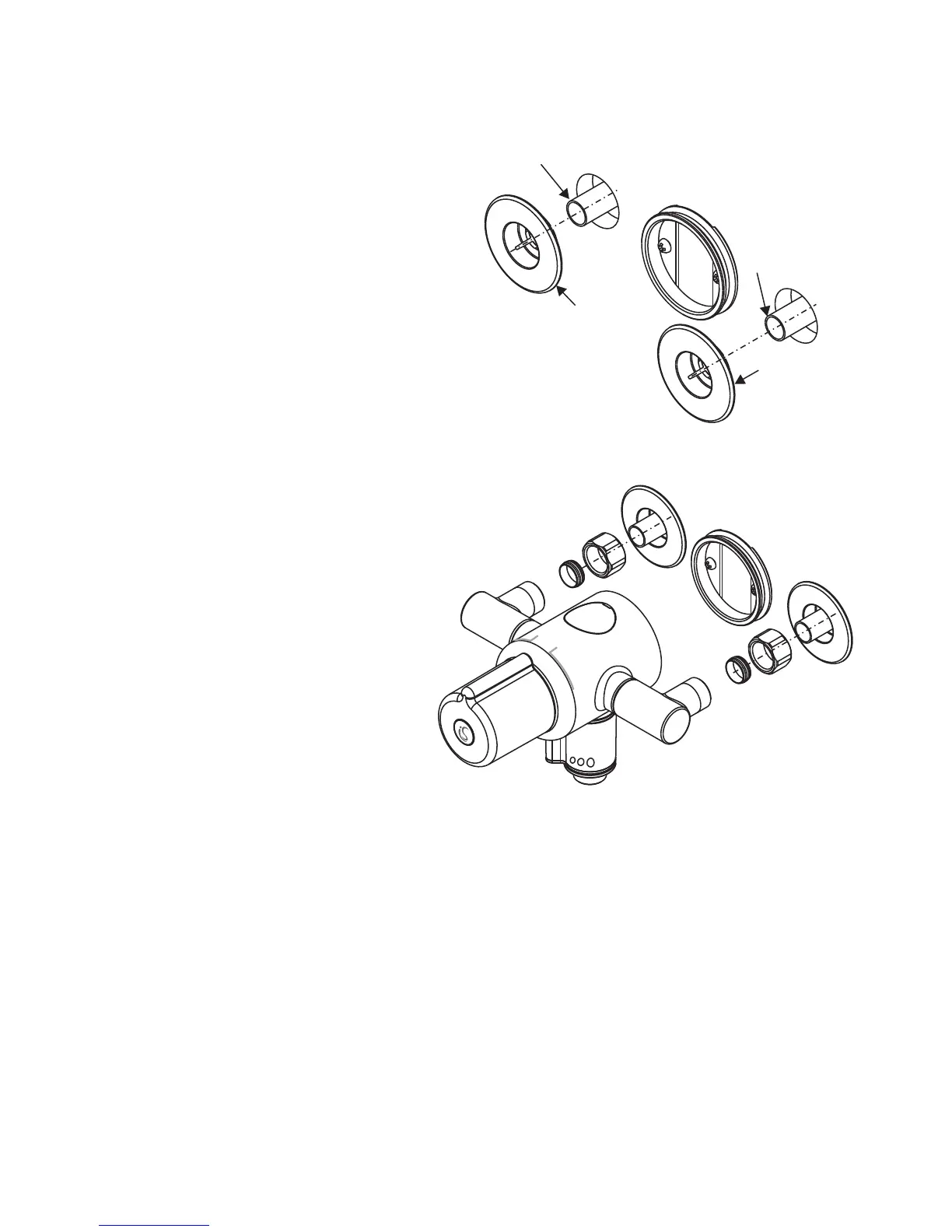

8. For rear entry supplies only:
Fit the concealing plates over the inlet pipes.
Note! Apply silicone sealant to the back face
of the plate.
9. Caution! It is essential at this point
that the supply pipework is thoroughly
flushed through before connection to the
mixer. Failure to do so may result in
product malfunction.
10. Fit the compression nuts and olives
onto the supply pipes. If 2nd outlet is
required, this should be fitted now,
see section 11
11. Align the mixer with the pipework and
fit onto the backplate.
Important! Make sure that the hot and cold
inlets on the mixer correspond with the hot
and cold inlet supplies.
12. Tighten the grubscrew to secure the
mixer to the backplate.
13. Tighten the compression nuts onto the
mixer with a 24mm A/F spanner.
Caution! Take care not to damage the chrome surfaces.
14. Fix the shower fittings, refer to your shower fittings installation and user guide for instructions.
15. Turn on the hot and cold water supplies and check for leaks
16. Before using the shower refer to the Commissioning section
Concealing plate
Apply silicone
sealant to back
face of flange
INSTALLATION GUIDE continued
hot
cold
Figure 8
Figure 9
40º
