IDEAL 3915-95

- 16 -
IDEAL 3915-95
A
B
A

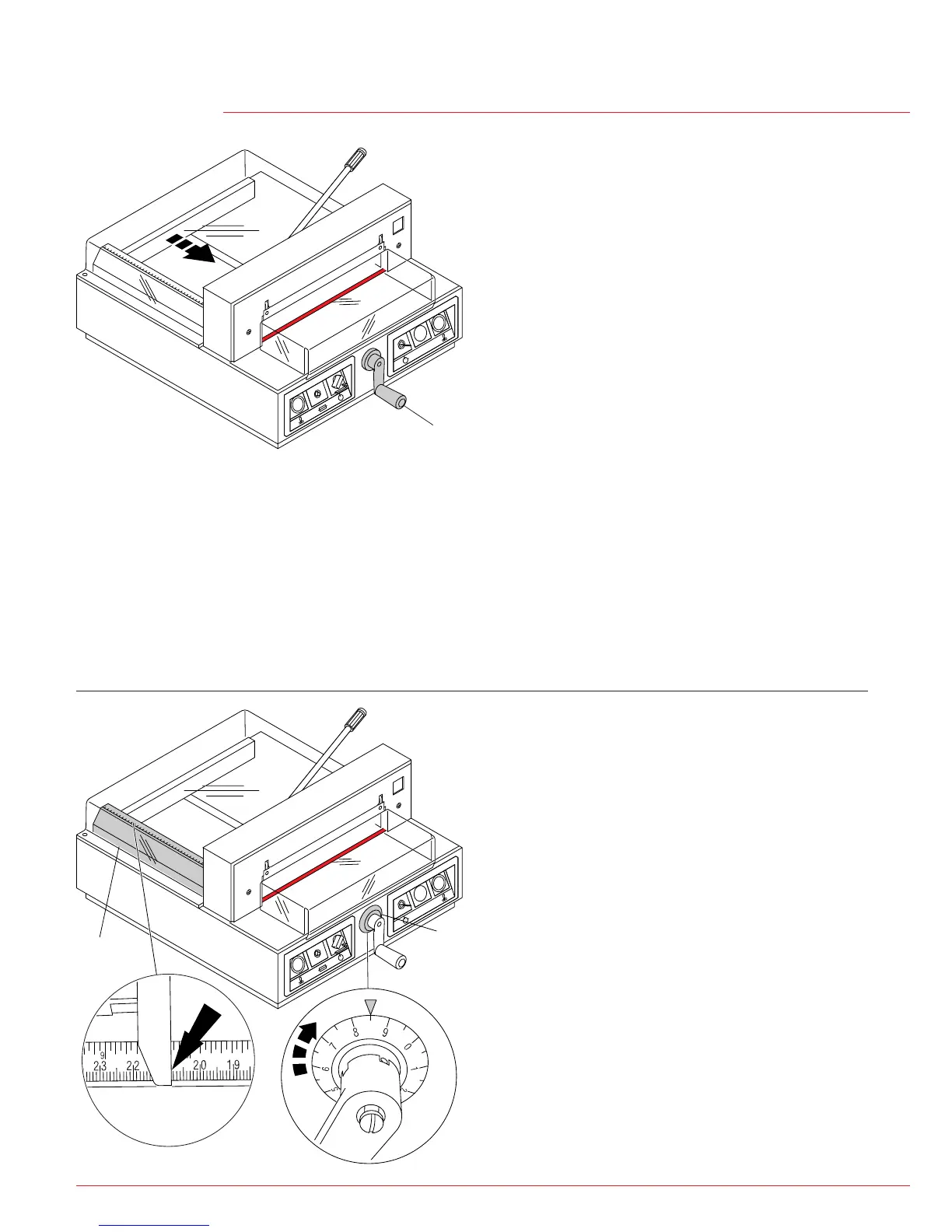

The backgauge has to be adjusted by the
handle with calibration ring (A). Measurement
has to be adjusted from the rear.
Measurement is indicated on the back side
lay (A). (mm/inch).
The fine adjustment is achieved by using
the calibration ring (B). The scale is divided in
mm (One complete turn corresponds
10 mm = 1 cm).
See example cutting measurement 208,50 mm
Example: Cutting measurement 208,50 mm
•
Operation
•
