IDEAL 61-736 - Display Icons; Symbols on the Unit

Page 4
HOLD APO
KMΩ mVA
AC
DC

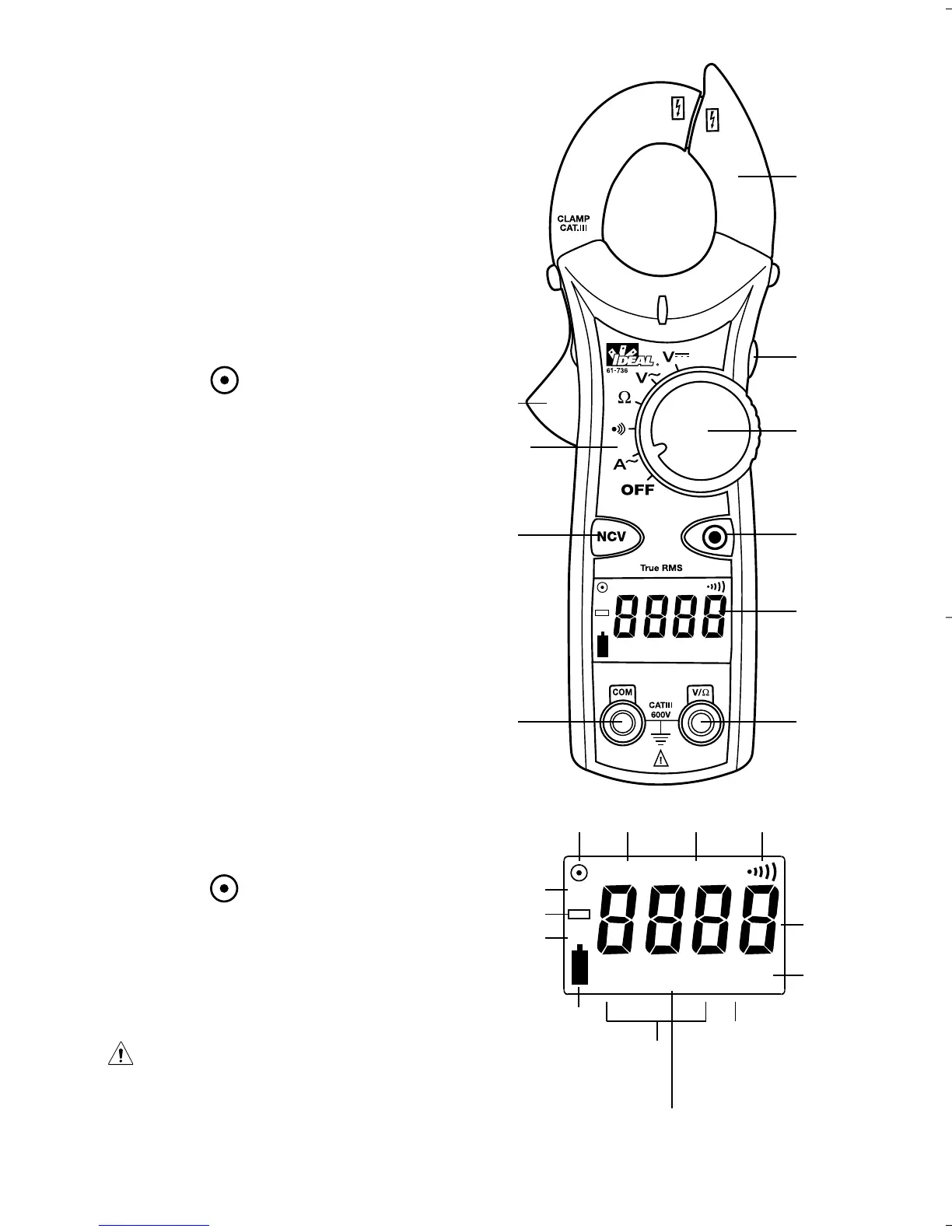

Features
1. Jaw Clamp
2. Lever
3. Function Dial
4. Display (LCD)
5. Volts and resistance (V-Ω)
input terminal
6. Common (COM) input terminal
7. Non-Contact Voltage (NCV)
8. Range ( )
9. Data Hold
10. Measuring Functions
Display Icons
11. 4000 count display
12. Units of measure
13. Voltage
14. Amperes
15. Ohms
16. Continuity
17. AC measurement is selected
18. DC measurement is selected
19. Polarity indicator for DC
20. Low battery indicator
21. Range ( )
22. Data hold
23. APO - Auto Power Off
Symbols on the Unit
• Warning - read the instruction manual
• NCV - Non-Contact Voltage
• Cat III - 600V Safety category
1
9
3
8
4
5
10
6
11
16
14
12
13
15
7
2
HOLD APO
KMΩ mVA
AC
DC
20
21 22 23
17
18
19
NCV
