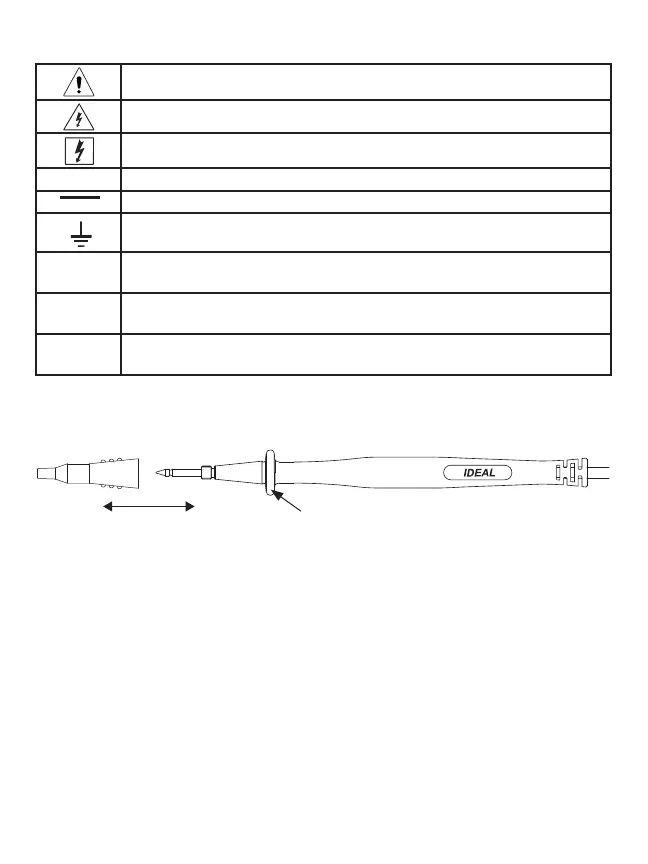

Symbols on the Unit
Risk of Danger. Important Information. See Manual.
Hazardous voltage. Risk of electrical shock.
Application around and removal from Hazardous Live conductors is permitted.
AC (Alternating Current)
DC (Direct Current)
Earth Ground
CAT II
Measurement Category II applies to test and measuring circuits connected directly to
utilization points (socket outlets and similar points) of the low-voltage installation
CAT III
Measurement Category III applies to measuring circuits connected to the distribution
part of the building’s low-voltage installation
CAT IV
Measurement Category IV applies to test and measuring circuits connected at the
source of the building’s low-voltage installation
~
...
Test Leads
OPERATION:
Non-contact voltage (NCV)
With the NCV tab on the tip of the clamp close to an AC voltage, press the NCV but-
ton. The NCV LED will light and the beeper will sound. The closer the NCV tab is to
AC voltage, the louder the beep. To differentiate between hot and neutral in an outlet,
insert the NCV tab into each slot in the outlet. The beeper will be much louder on the
hot side of the outlet than the neutral. The test lead can also be used to differentiate
between the hot and neutral. Plug the red test lead into the V/Ω input jack on the
meter. Press the NCV button and insert the probe tip into each slot of the outlet. The
beeper will only beep on the hot side of the outlet.
Page 5
Guard ring
CAT IV 600V
CAT III 1000V
CAT II 1000V
Always replace the protective Category Caps if removal is
necessary for use in a standard 120 volt outlet.
