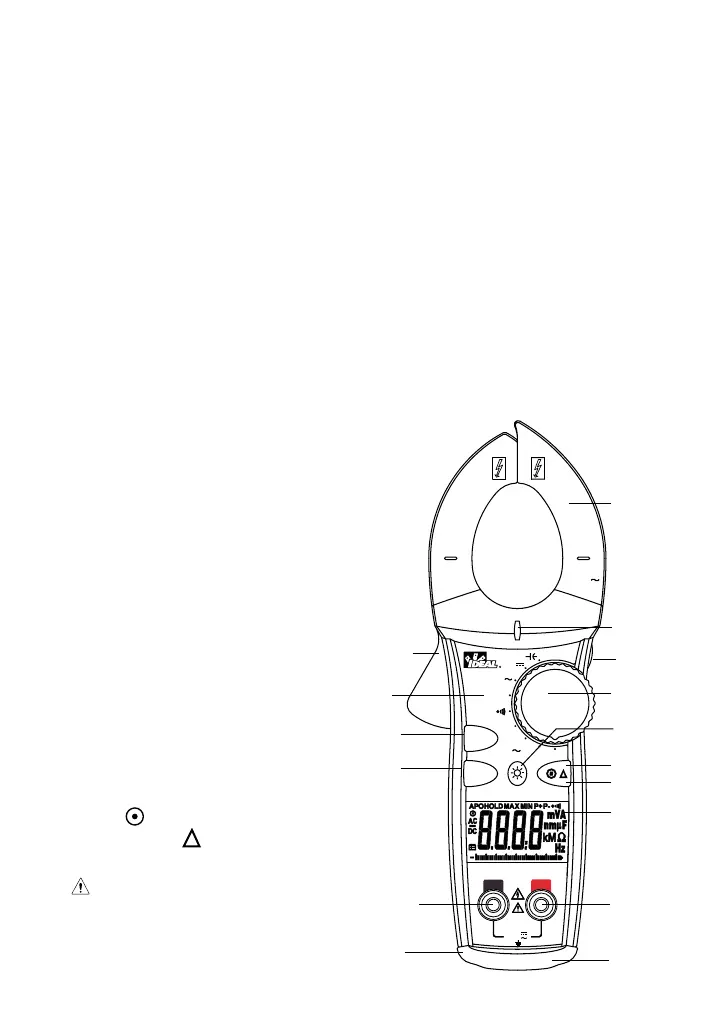

Features
1. Tapered jaws w/hook tip
2. Lever
3. Function Dial
4. Main Display (LCD)
5. Volts and resistance (V-Ω)
input terminal
6. Common (COM) input terminal
7. TightSight™ bottom display
8. Protective rubber boot
9. Measuring Functions
10. High Voltage (Hi-V) warning
11. Data Hold
12. Max/min
13. Peak max/min
14. Backlight
15. Range ( )
16. Relative mode ( )
Symbols on the Unit
• Warning - read the
instruction manual
• Cat IV - 600V Safety category
• Cat III - 1000V Safety category
Page 3
760 Series Common Features:
• Auto/manual ranging clamp meter • Large numbers and symbols displayed
• TightSight™ bottom display • Peak max/min, max/min, data hold
• Visual and audible indication when • Selectable Auto power off and low
voltage is present even when the meter battery indicator
is set on the wrong function for • Tapered jaws for reaching into tight spaces
enhanced safety • Hook tip for easier wire separation
• Measures 600 AAC Current • Protective rubber boot
• Measures AC/DC Voltage & Resistance • Electronic overload protection on
• Audible continuity all ranges
• Bright, bold backlight • Cat IV-600V/Cat III-1000V
• 61-764 model is averaging sensing, rms calibrated
• 61-766 model is true rms sensing, measures capacitance, frequency and lower currents
with a 40 AAC range for troubleshooting motors and adjustable speed drives
• 61-768 model is true rms sensing and measures DC current
